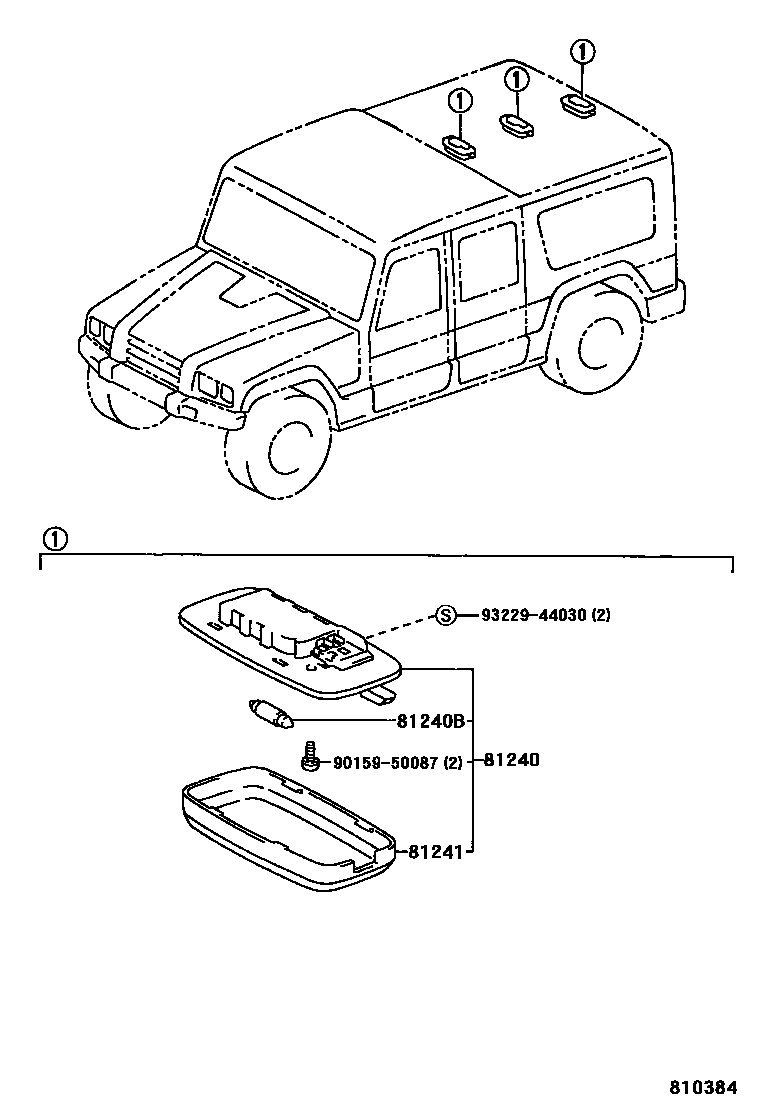

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-95014-B0×2iBXD20..SRF199610

LT.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-16019×2iBXD20..SRF199610

24V 10W

81241LENS, ROOM LAMP, NO.1

main81241-95013×2iBXD20..SRF199610

9015950087

main90159-50087

9322944030

main93229-44030

5 parts on this diagram · 1 diagram in section
