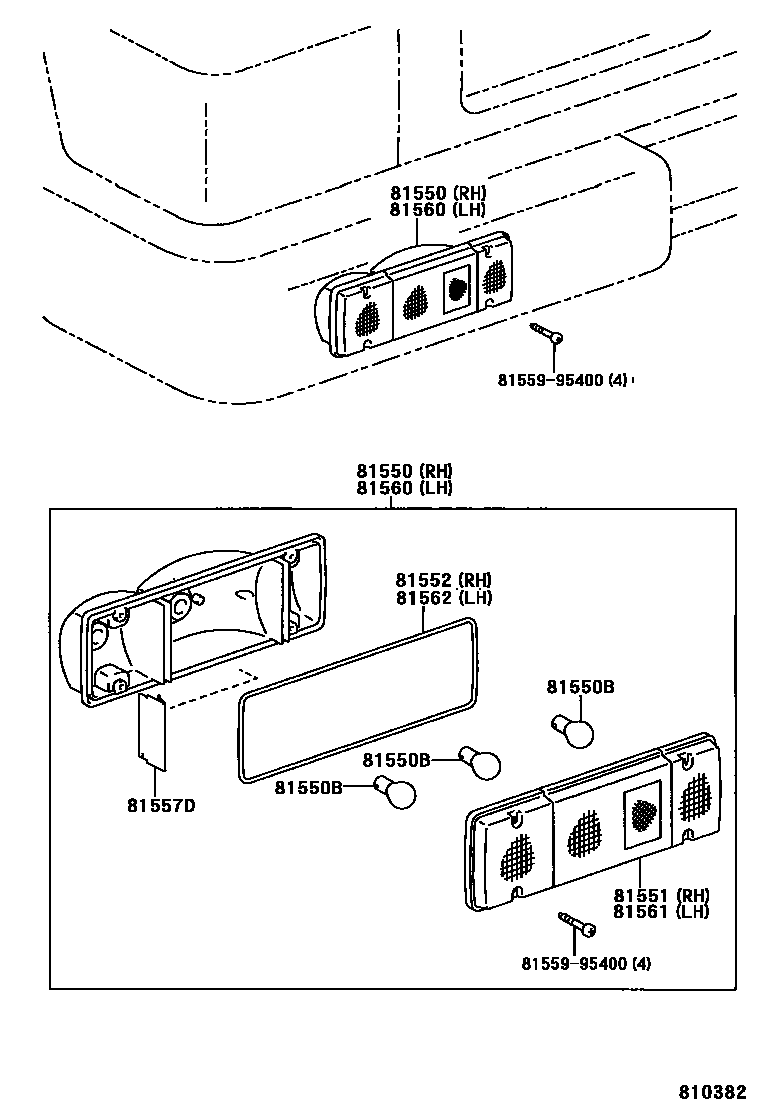

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-37031iBXD20199610

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16014iBXD20199610

24V 21W

main90981-16015iBXD20199610

24V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-60442iBXD20199610

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-95400iBXD20199610

81557DREFLECTOR, REAR COMBINATION LAMP

main81557-95403iBXD20199610

81560LAMP ASSY, REAR COMBINATION, LH

main81560-37051iBXD20199610

81561LENS, REAR COMBINATION LAMP, LH

main81561-60372iBXD20199610

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-95400iBXD20199610

8155995400MOULDING, REAR COMBINATION LAMP, RH

main81559-95400

9 parts on this diagram · 1 diagram in section
