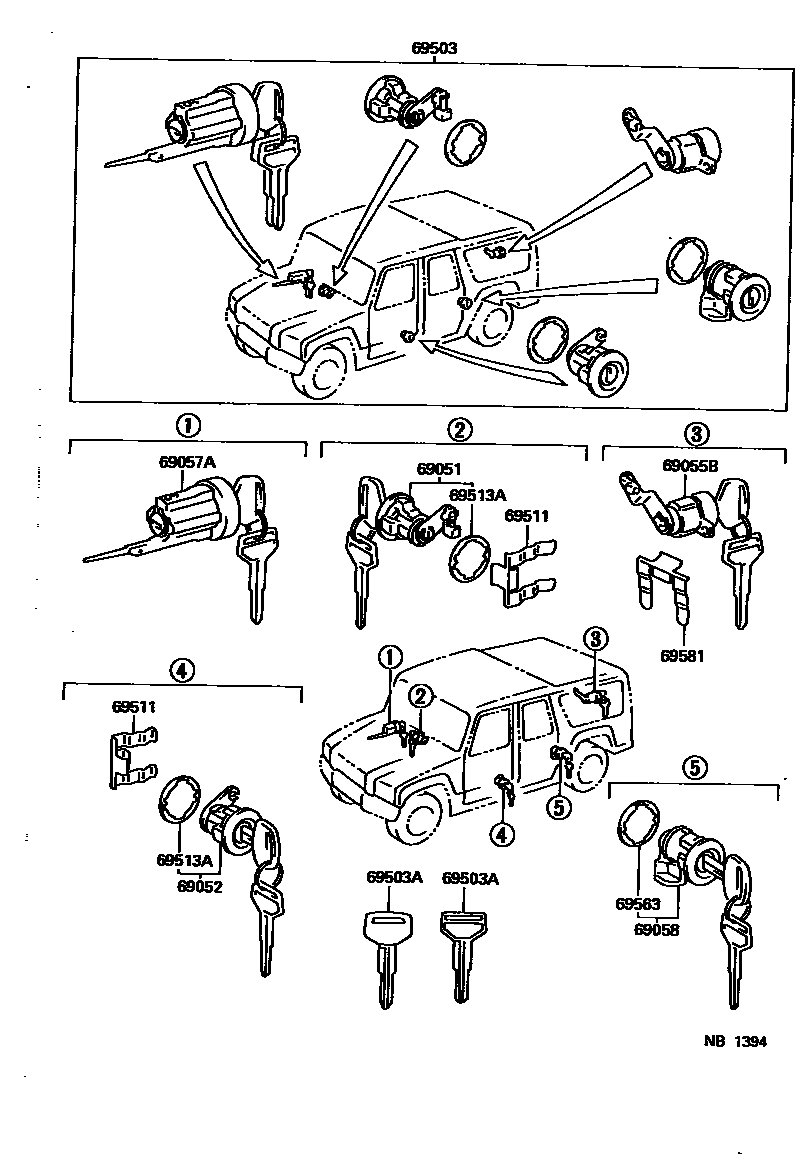

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-65020iBXD20199610

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-65020iBXD20199610

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-65010iBXD20199610

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-65010iBXD20199610

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-65010iBXD20199610

69503CYLINDER SET, LOCK

main69503-65020iBXD20199610

69503AKEY, BLANK

main90999-00130×2iBXD20199610

MASTER KEY

main90999-00132iBXD20199610

MASTER KEY,W(*68)

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-95400×2iBXD20199610

69513APAD, DOOR CYLINDER

main69513-32010×2iBXD20199610

69563PAD, BACK DOOR LOCK CYLINDER

main69513-32010iBXD20199610

69581RETAINER, FUEL FILLER LID CYLINDER

main69511-95400iBXD20199610

11 parts on this diagram · 1 diagram in section
