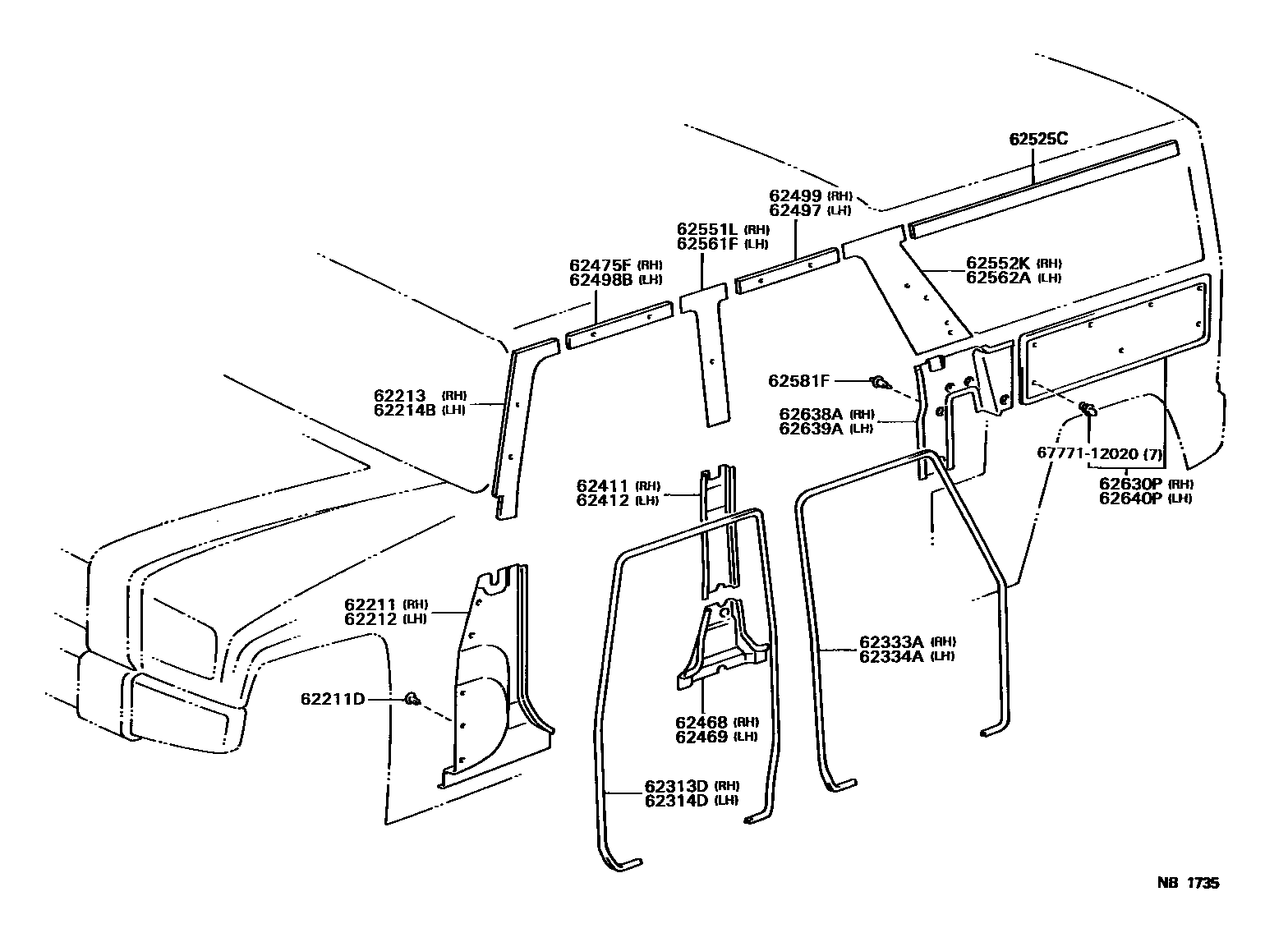

INSIDE TRIM BOARD
62211GARNISH, FRONT PILLAR, RH
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
GRAY,TRIM1#
62212GARNISH, FRONT PILLAR, LH
BLUISH GRAY,TRIM1#
62213PAD, FRONT PILLAR GARNISH
62214BPAD, FRONT PILLAR GARNISH, LH
62313DTRIM, FRONT DOOR OPENING, RH
BLUISH GRAY,TRIM1#
62314DTRIM, FRONT DOOR OPENING, LH
BLUISH GRAY,TRIM1#
62333ATRIM, REAR DOOR OPENING, RH
BLUISH GRAY,TRIM1#
62334ATRIM, REAR DOOR OPENING, LH
BLUISH GRAY,TRIM1#
62411GARNISH, CENTER PILLAR, RH
LI.BLUISH GRAY,TRIM1#
62412GARNISH, CENTER PILLAR, LH
LI.BLUISH GRAY,TRIM1#
62468GARNISH, CENTER PILLAR, REAR RH
BLUISH GRAY,TRIM1#
62469GARNISH, CENTER PILLAR, REAR LH
BLUISH GRAY,TRIM1#
62475FPAD, ROOF SIDE INNER GARNISH, NO.1
62497PAD, ROOF SIDE INNER GARNISH, NO.4
62498BPAD, ROOF SIDE INNER GARNISH, NO.2
62499PAD, ROOF SIDE INNER GARNISH, NO.3
62525CPAD, QUARTER TRIM, UPPER
62551LPAD, PILLAR, NO.1 RH
62552KPAD, PILLAR, NO.2 RH
62561FPAD, PILLAR, NO.1 LH
62562APAD, PILLAR, NO.2 LH
62581FCLIP (FOR QUARTER PILLAR GARNISH)
LIGHT GRAY,TRIM1#
62630PPANEL ASSY, QUARTER TRIM, REAR RH
LT.BLUISH GRAY,TRIM1#
62638AGARNISH, QUARTER PILLAR, RH
LT.BLUISH GRAY,TRIM1#
LT.BLUISH GRAY,TRIM1#
62639AGARNISH, QUARTER PILLAR, LH
LT.BLUISH GRAY,TRIM1#
LT.BLUISH GRAY,TRIM1#
62640PPANEL ASSY, QUARTER TRIM, REAR LH
LT.BLUISH GRAY,TRIM1#
6777112020WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12020
28 parts on this diagram · 1 diagram in section
