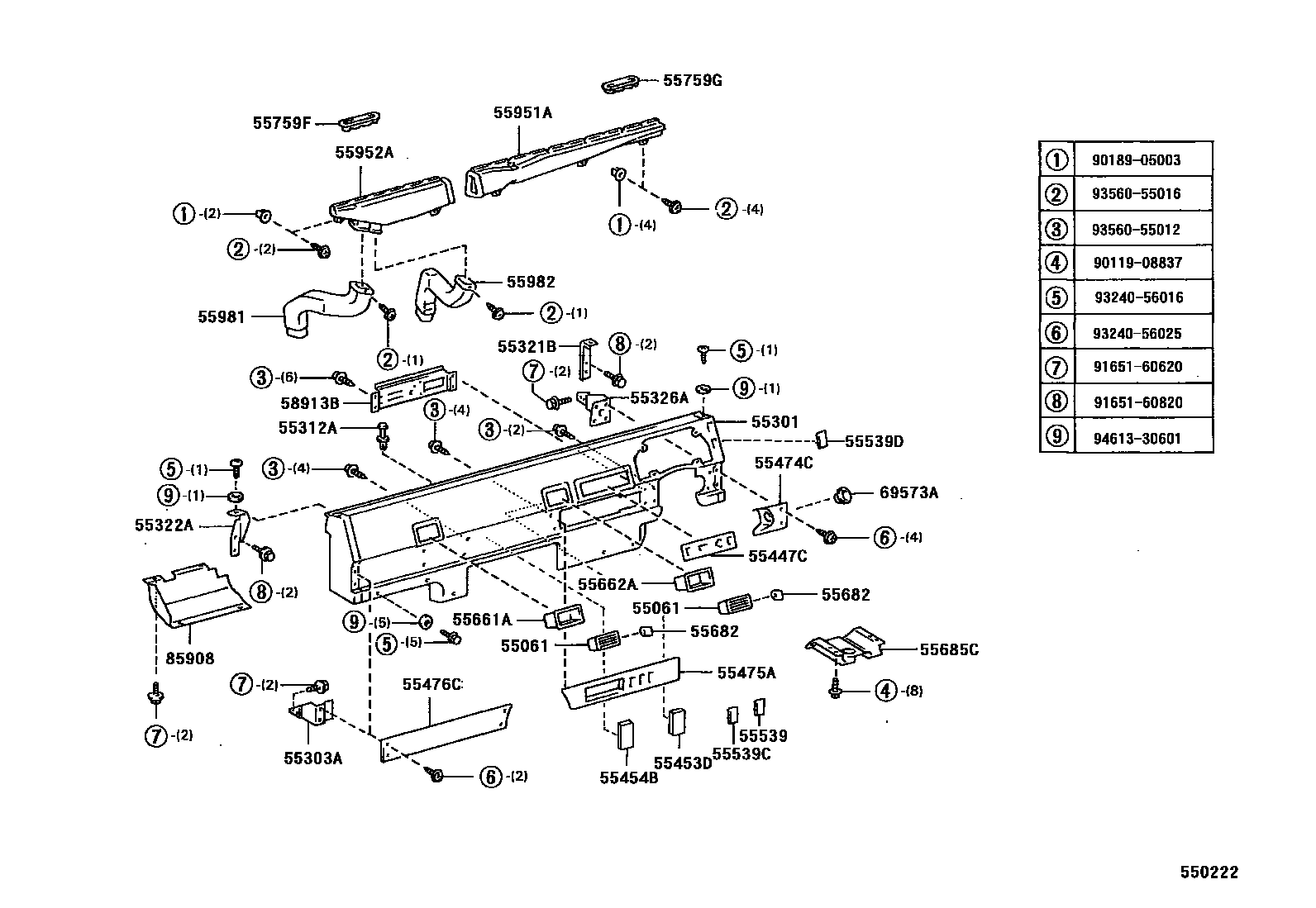

INSTRUMENT PANEL & GLOVE COMPARTMENT
55061REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1
BLACK,TRIM1#
55301PANEL SUB-ASSY, INSTRUMENT
BLUISH GRAY,TRIM1#
55303ASTAY SUB-ASSY, INSTRUMENT PANEL
55312ACLIP, INSTRUMENT PANEL
LIGHT GRAY,TRIM1#
55321BBRACKET, INSTRUMENT PANEL, NO.1
55322ABRACKET, INSTRUMENT PANEL, NO.2
55326ASTAY, INSTRUMENT PANEL, NO.1
55447CBASE, SWITCH HOLE, NO.2
BLACK,TRIM1#
55453DPAD, INSTRUMENT PANEL SAFETY, NO.1
55454BPAD, INSTRUMENT PANEL SAFETY, NO.2
55474CGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1
BLACK,TRIM1#
55475AGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2
BLACK,TRIM1#
55476CGARNISH, INSTRUMENT PANEL FINISH PLATE
BLACK,TRIM1#
55539COVER, SPARE SWITCH HOLE
BLACK,TRIM1#
55539CCOVER, SPARE SWITCH HOLE
BLACK,TRIM1#
55539DCOVER, SPARE SWITCH HOLE
BLACK,TRIM1#
55661ABEZEL, INSTRUMENT PANEL REGISTER
BLACK,TRIM1#
55662ABEZEL, INSTRUMENT PANEL RESISTER, NO.2
BLACK,TRIM1#
55682SPRING, INSTRUMENT PANEL REGISTER SUPPORT
55685CBRACKET, STEERING COLUMN
55759FCOVER, HEATER AIR DUCT
BLACK,TRIM1#
55759GCOVER, HEATER AIR DUCT, NO.2
BLACK,TRIM1#
55951ANOZZLE, DEFROSTER, FRONT RH
55952ANOZZLE, DEFROSTER, FRONT LH
55981GARNISH, DEFROSTER NOZZLE, NO.1
55982GARNISH, DEFROSTER NOZZLE, NO.2
58913BBRACKET, HEATER CONTROL BASE, LH
69573APAD, IGNITION SWITCH LOCK CYLINDER
85908COVER SUB-ASSY, RELAY BRACKET
9011908837
main90119-08837
9018905003
main90189-05003
9165160620
main91651-60620
9165160820
main91651-60820
9324056016
main93240-56016
9324056025
main93240-56025
9356055012
main93560-55012
9356055016
main93560-55016
9461330601
main94613-30601
38 parts on this diagram · 1 diagram in section
