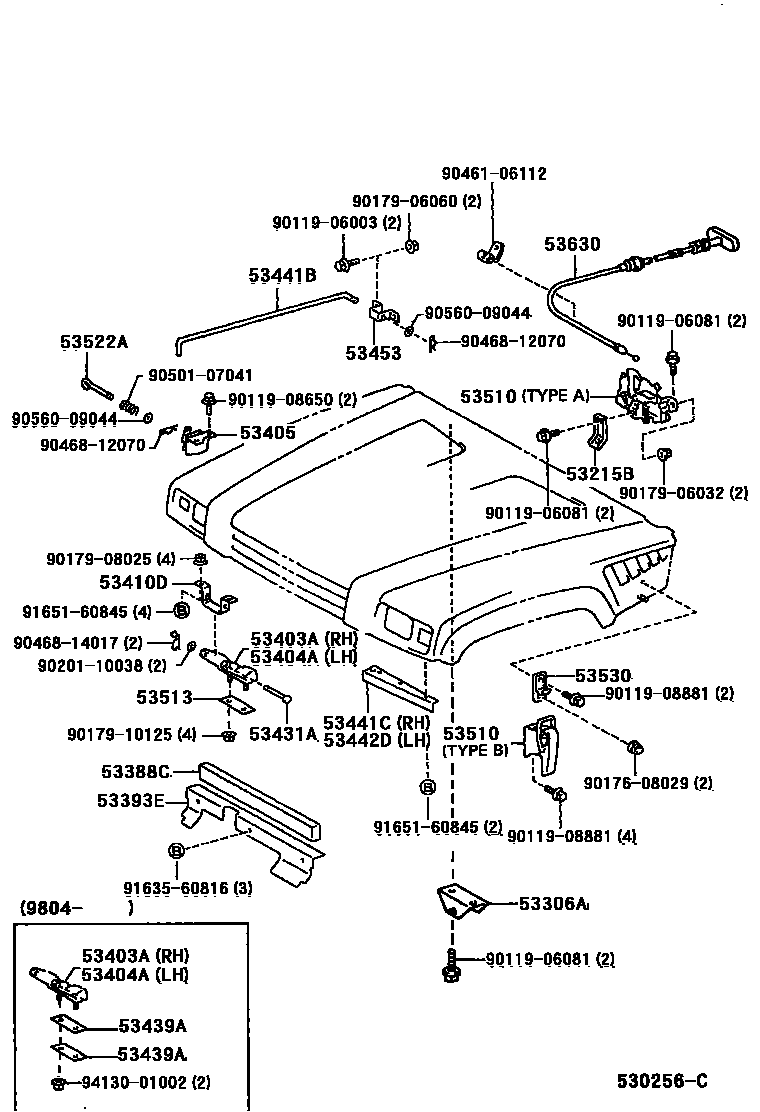

HOOD LOCK & HINGE

53215BSUPPORT, HOOD LOCK

main53215-65020iBXD20199610

53306AREINFORCEMENT, HOOD LOCK HOOK

main53306-65010iBXD20199610

53388CCUSHION, HOOD, REAR

main53388-65020iBXD20199610

53393EBRACKET, RADIATOR SEAL, UPPER

main53393-65010iBXD20199610

53403AHINGE SUB-ASSY, HOOD, LOWER RH

main53403-65020iBXD20199610-199804

main53403-65021iBXD20199804

53404AHINGE SUB-ASSY, HOOD, LOWER LH

main53404-65010iBXD20199610-199804

main53404-65011iBXD20199804

53405SUPPORT SUB-ASSY, HOOD

main53405-65030iBXD20199610

53410DHINGE SUB-ASSY, HOOD, UPPER

main53401-65030iBXD20199610-199804

main53401-65031iBXD20199804

53431APIN, HOOD HINGE

main53431-65010iBXD20199610

53439ASHIM, HOOD HINGE

main53439-65020iBXD20199804

53441BSUPPORT, HOOD

main53441-65010iBXD20199610

53441CSUPPORT, HOOD, RH

main53441-65020iBXD20199610

53442DSUPPORT, HOOD, LH

main53442-65010iBXD20199610

53453ARM, HOOD BALANCER, UPPER

main53453-65030iBXD20199610

53510LOCK ASSY, HOOD

main53510-65010iBXD20199610

TYPE B

main53510-65020iBXD20199610

TYPE A

53513PLATE, HOOD

main53513-65020iBXD20199806

53522APIN, HOOD LOCK SPRING GUIDE

main53522-65010iBXD20199610

53530LATCH ASSY, SAFETY

main53530-65010iBXD20199610

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-65010iBXD20199610

9011906003

main90119-06003

9011906081

main90119-06081

9011908650

main90119-08650

9011908881

main90119-08881

9017608029

main90176-08029

9017906032

main90179-06032

9017906060

main90179-06060

9017908025

main90179-08025

9017910125

main90179-10125

9020110038

main90201-10038

9046106112

main90461-06112

9046812070

main90468-12070

9046814017

main90468-14017

9050107041

main90501-07041

9056009044

main90560-09044

9163560816

main91635-60816

9165160845

main91651-60845

9413001002

main94130-01002

37 parts on this diagram · 1 diagram in section
