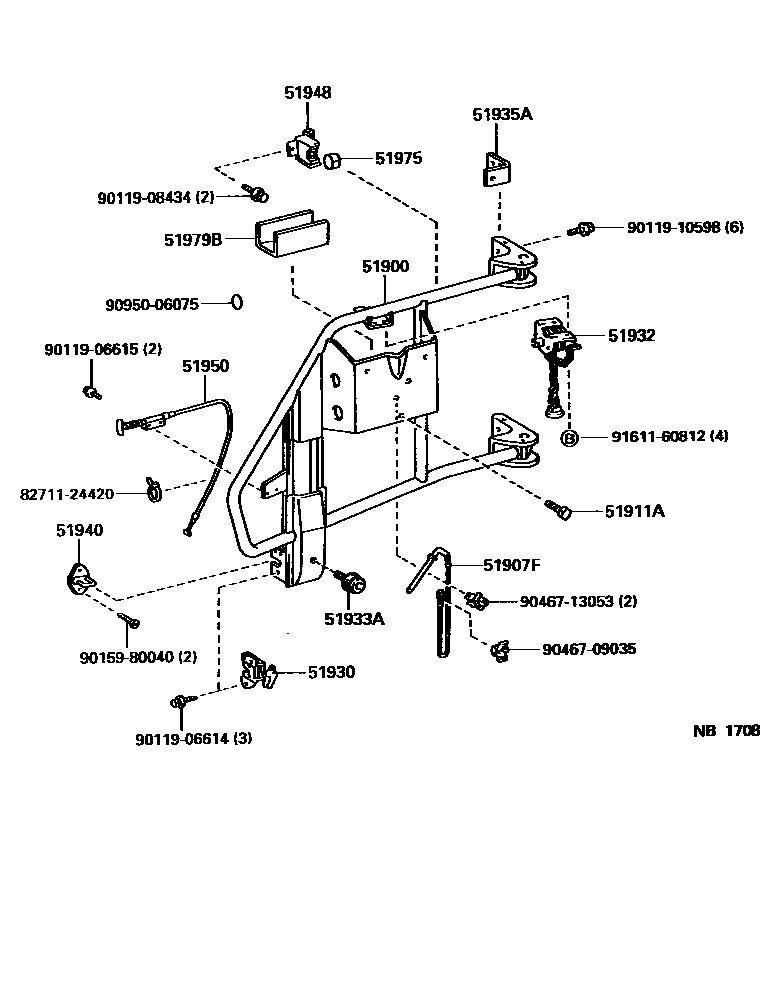

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51903-65010iBXD20199610

51907FSTOPPER SUB-ASSY, SPARE WHEEL CARRIER

main51907-65010iBXD20199610

51911ABOLT, SPARE WHEEL

main51911-65010×3iBXD20199610

51930LOCK ASSY, SPARE WHEEL CARRIER

main51930-89101iBXD20199610

51932CARRIER, SPARE WHEEL, NO.2

main51902-65010iBXD20199610-200001

main51902-65011iBXD20200001

51933ASTOPPER, SPARE WHEEL, NO.1

main51933-60070iBXD20199610

51935ACUSHION, SPARE WHEEL CARRIER HINGE, UPPER

main51935-65010×2iBXD20199610

51940STRIKER ASSY, SPARE WHEEL CARRIER LOCK

main51940-89101iBXD20199610

51948STOPPER, SPARE WHEEL CARRIER AUXILIARY

main51905-65010iBXD20199610

51950CABLE ASSY, SPARE WHEEL CARRIER LOCK CONTROL

main51950-60030iBXD20199610

51975FILM, SPARE WHEEL CARRIER

main51975-65010iBXD20199610

51979BCUSHION, SPARE WHEEL CARRIER PROTECTOR

main51979-65020iBXD20199610

8271124420WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24420

9011906614

main90119-06614

9011906615

main90119-06615

9011908434

main90119-08434

9011910598

main90119-10598

9015980040

main90159-80040

9046709035

main90467-09035

9046713053

main90467-13053

9095006075

main90950-06075

9161160812

main91611-60812

22 parts on this diagram · 1 diagram in section
