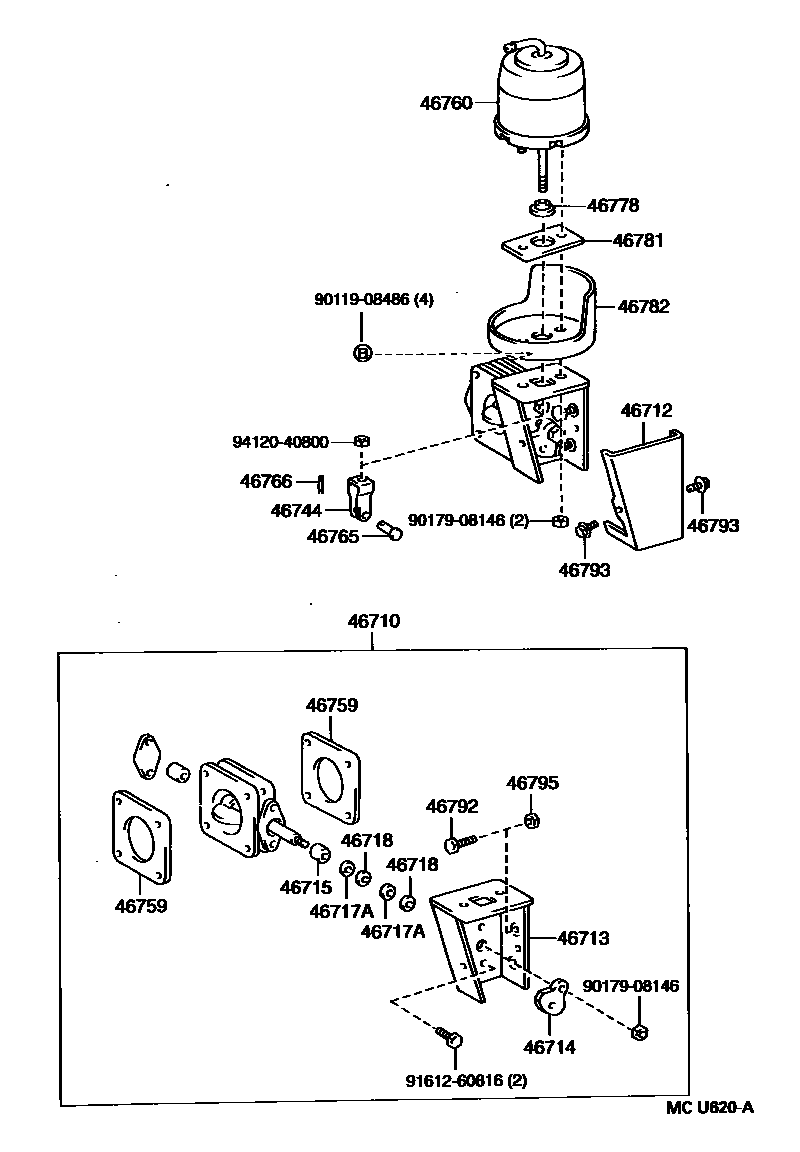

EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER

46710VALVE ASSY, EXHAUST BRAKE

main46710-36170iBXD20199610

46712COVER, EXHAUST VALVE LINK

main46712-36060iBXD20199610

46713BRACKET, EXHAUST VALVE

main46713-36060iBXD20199610

46714LEVER, EXHAUST VALVE

main46714-36010iBXD20199610

46715BUSH, EXHAUST VALVE, NO.1

main46715-36010iBXD20199610

L=16.0

46717ARING, EXHAUST VALVE SEAL, NO.1

main46717-36010×2iBXD20199610

46718RING, EXHAUST VALVE SEAL, NO.2

main46718-36010×2iBXD20199610

46744CLEVIS, EXHAUST BRAKE ROD CLEVIS

main46744-25010iBXD20199610

46759GASKET, EXHAUST RETARDER

main46759-36040×2iBXD20199610

46760CYLINDER ASSY, EXHAUST RETARDER VACUUM

main46760-65010iBXD20199610

46765PIN, VACUUM CYLINDER CLEVIS

main46765-36010iBXD20199610

46766PIN, VACUUM CYLINDER CLEVIS SNAP

main46766-36010iBXD20199610

46778BEARING, VACUUM CYLINDER

main46778-36060iBXD20199610

46781INSULATOR, EXHAUST BRAKE CHAMBER, NO.1

main46781-36060iBXD20199610

46782INSULATOR, EXHAUST BRAKE CHAMBER, NO.2

main46782-65010iBXD20199610

46792BOLT, EXHAUST VALVE STOPPER

main46792-36010×2iBXD20199610

46793BOLT, EXHAUST VALVE LINK COVER

main46793-36010×2iBXD20199610

46795NUT, EXHAUST VALVE BRACKET

main46795-36010×2iBXD20199610

9011908486

main90119-08486

9017908146

main90179-08146

9161260816

main91612-60816

9412040800

main94120-40800

22 parts on this diagram · 1 diagram in section
