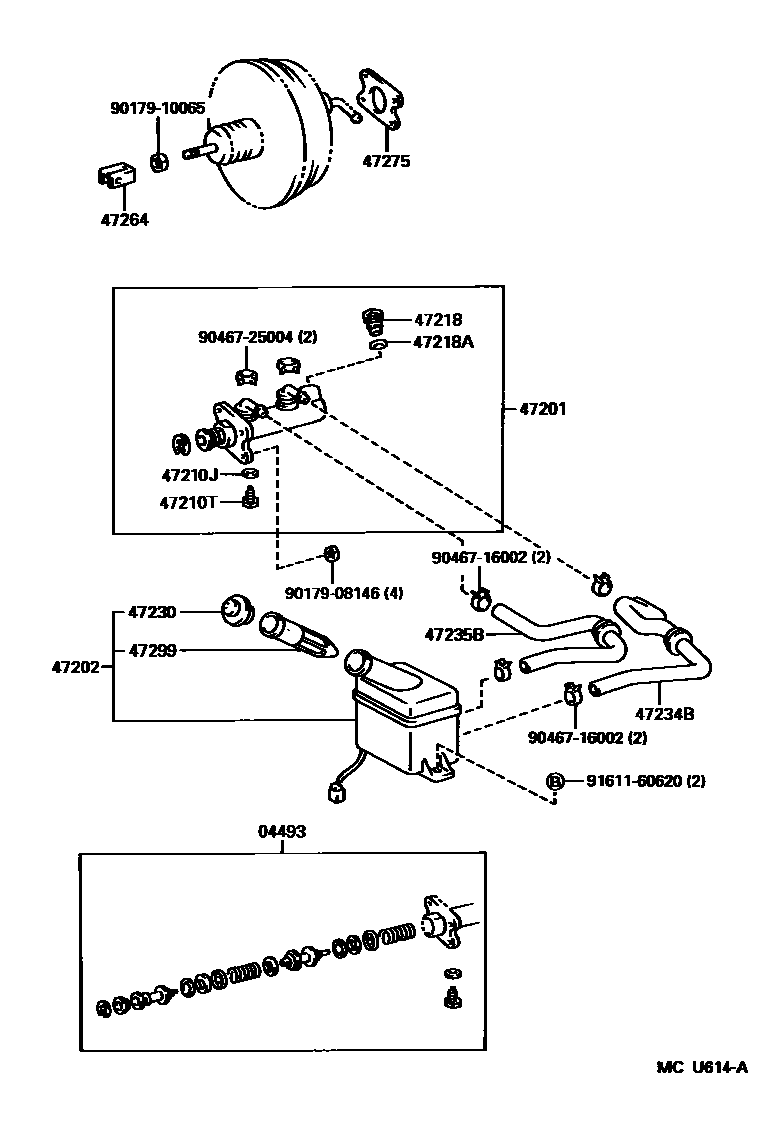

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-65010iBXD20199610-199909

main04493-65020iBXD20199909

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-65010iBXD20199610

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-65010iBXD20199610

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iBXD20199610

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iBXD20199610

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-25020iBXD20199610

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-11001iBXD20199610

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-28020iBXD20199610

47234BTUBE, RESERVOIR, NO.1

main47234-65010iBXD20199610

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-65010iBXD20199610

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-50010iBXD20199610

47275GASKET, BRAKE MASTER CYLINDER

main47275-24010iBXD20199610

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-26020iBXD20199610

9017908146

main90179-08146

9017910065

main90179-10065

9046716002

main90467-16002

9046725004

main90467-25004

9161160620

main91611-60620

18 parts on this diagram · 1 diagram in section
