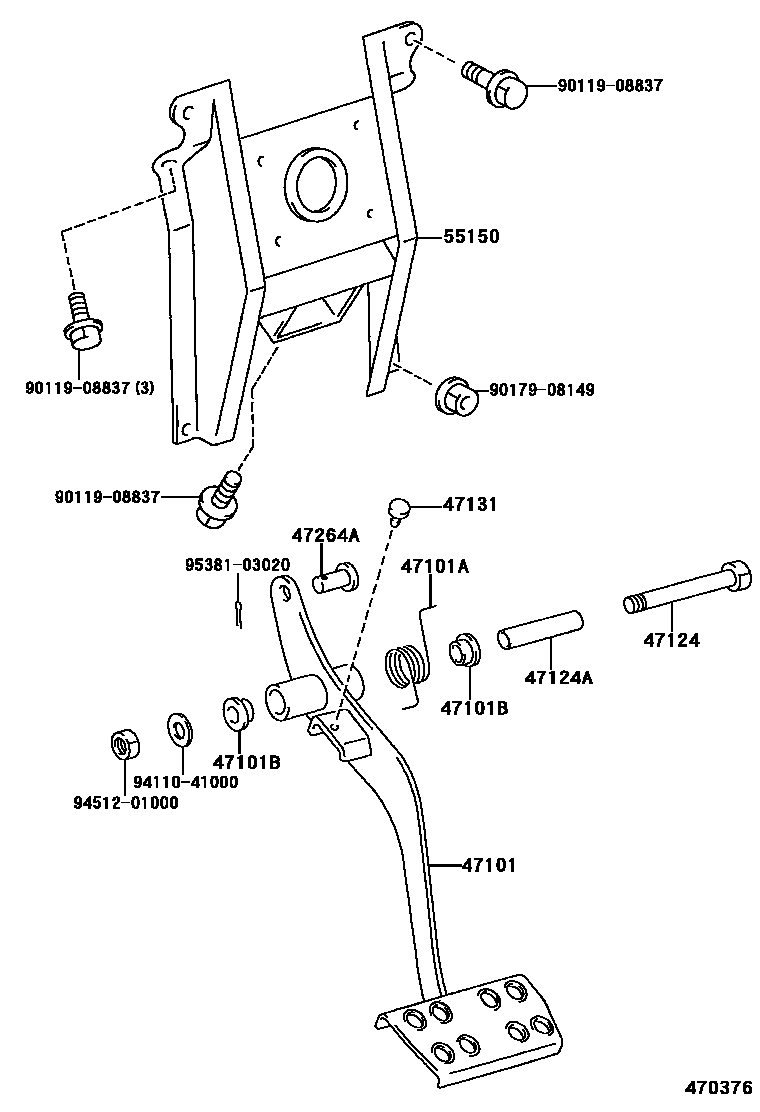

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-65010iBXD20199610

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35322iBXD20199610

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007×2iBXD20199610

47124SHAFT, BRAKE PEDAL

main90101-10150iBXD20199610

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10116iBXD20199610

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iBXD20199610

47264APIN(FOR PUSH ROD)

main90240-10015iBXD20199610

55150BRACKET ASSY, PEDAL

main55150-65010iBXD20199610

9011908837

main90119-08837

9017908149

main90179-08149

9411041000

main94110-41000

9451201000

main94512-01000

9538103020

main95381-03020

13 parts on this diagram · 1 diagram in section
