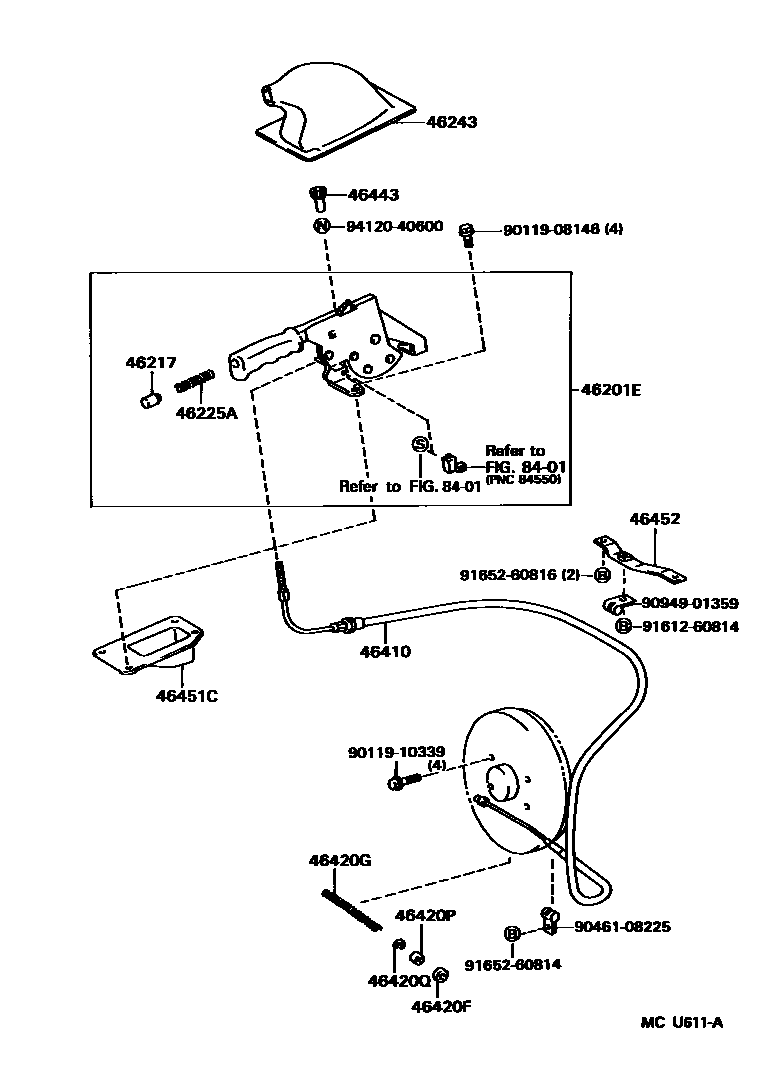

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46210-65030-C0iBXD20199610

BLACK,TRIM1#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-20020-11iBXD20199610

BLACK,TRIM1#

sub46217-20020

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10138iBXD20199610

46243COVER, PARKING BRAKE LEVER

main46243-65010-C0iBXD20199610

BLACK,TRIM1#

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-65010iBXD20199610

46420FSEAL, DUST(FOR PARKING BRAKE CABLE)

main90303-10001iBXD20199610

46420GSPRING(FOR PARKING CABLE INNER WIRE SET)

main90501-14021iBXD20199610

46420PSPACER, PARKING BRAKE

main90560-08002iBXD20199610

46420QRING, E(FOR PARKING BRAKE CABLE)

main96160-00700iBXD20199610

46443CAP, CABLE ADJUSTING

main46443-12020iBXD20199610

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-65010iBXD20199610

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46452-65010iBXD20199610

8401

9011908146

main90119-08146

9011910339

main90119-10339

9046108225

main90461-08225

9094901359

main90949-01359

9161260814

main91612-60814

9165260814

main91652-60814

9165260816

main91652-60816

9412040600

main94120-40600

21 parts on this diagram · 2 diagrams in section
