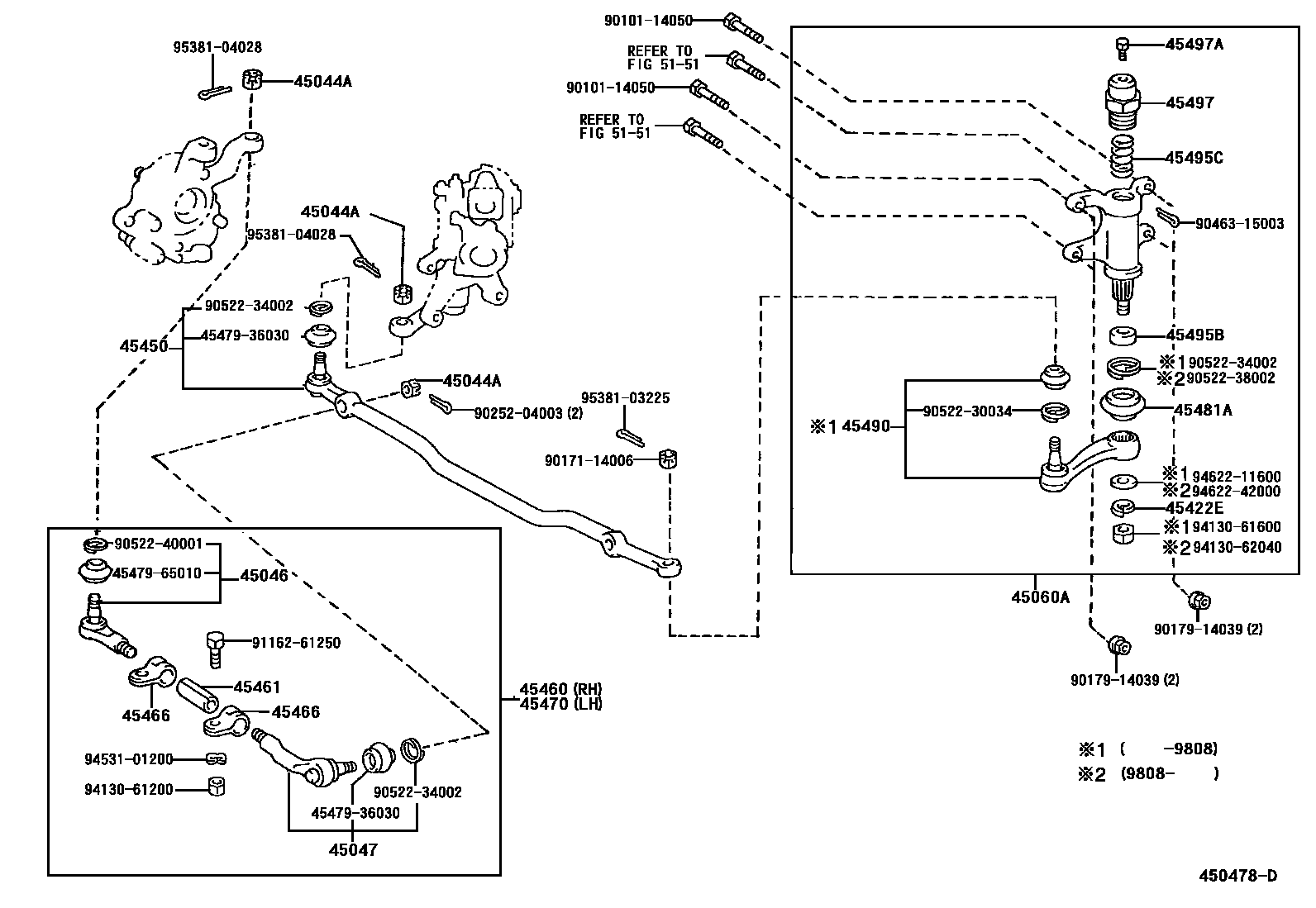

FRONT STEERING GEAR & LINK

0001 1 0002 1

45044ANUT, CASTLE(FOR RELAY ROD)

main90171-18003×2iBXD20199610

45046END SUB-ASSY, TIE ROD, RH

main45046-65010×2iBXD20199610

45047END SUB-ASSY, TIE ROD, LH

main45047-65010×2iBXD20199610

45060ABRACKET ASSY, IDLER ARM W/ARM

main45060-65020iBXD20199610-199808

main45060-65030iBXD20199808

45422EWASHER(FOR CENTER ARM SHAFT)

main90204-16001iBXD20199610-199808

main90204-20001iBXD20199808

45450ROD ASSY, STEERING RELAY

main45450-65010iBXD20199610

45460ROD ASSY, TIE, RH

main45460-65040iBXD20199610

45461ROD, STEERING TIE

main45461-65040×2iBXD20199610

45466CLAMP, TIE ROD END

main45466-36020×4iBXD20199610

45470ROD ASSY, TIE, LH

main45460-65040iBXD20199702

main45470-65020iBXD20199610-199702

45481ASEAL, STEERING IDLER ARM BUSHING DUST(FOR REAR STEERING)

main45481-65010iBXD20199610-199808

main45481-65030iBXD20199808

45490ARM ASSY, STEERING IDLER

main45490-65020iBXD20199610-199808

45495BSEAL(FOR IDLER ARM SHAFT)

main90311-25009iBXD20199610-199808

main90313-30001iBXD20199808

45495CSPRING, COMPRESSION(FOR IDLER ARM SHAFT)

main90501-32033iBXD20199610

45497CAP, IDLER ARM BRACKET

main45497-36020iBXD20199610

45497APLUG(FOR IDLER ARM BRACKET CAP)

main90345-06014iBXD20199610

5151FRAME

→ Go to FIG 51-51

4547936030SEAL, STEERING LINK JOINT DUST

main45479-36030

4547965010SEAL, STEERING LINK JOINT DUST

main45479-65010

9010114050

main90101-14050

9017114006

main90171-14006

9017914039

main90179-14039

9025204003

main90252-04003

9046315003

main90463-15003

9052230034

main90522-30034

9052234002

main90522-34002

9052238002

main90522-38002

9052240001

main90522-40001

9116261250

main91162-61250

9413061200

main94130-61200

9413061600

main94130-61600

9413062040

main94130-62040

9453101200

main94531-01200

9462211600

main94622-11600

9462242000

main94622-42000

9538103225

main95381-03225

9538104028

main95381-04028

37 parts on this diagram · 2 diagrams in section
