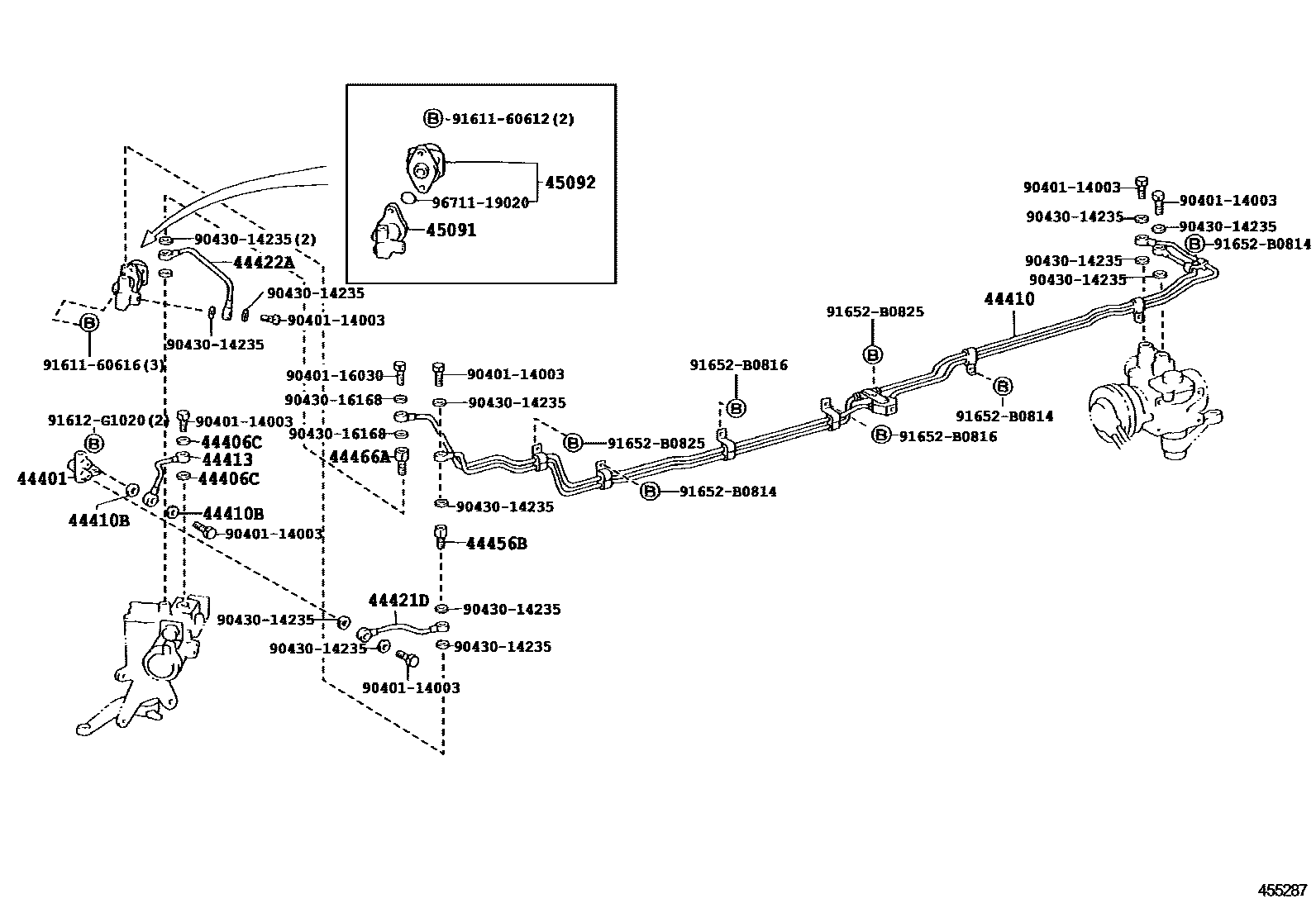

POWER STEERING TUBE

0001 1 0002 1 0003 1

44401VALVE SUB-ASSY, POWER STEERING FLOW DIVIDER

main44401-65020199610

44406TUBE SUB-ASSY, RETURN

main44406-65010199610

44406CGASKET(FOR RETURN TUBE)

main90430-14235199610

44410TUBE ASSY, PRESSURE FEED

main44410-65020199906

main44410-65030199610-199906

44410BGASKET(FOR PRESSURE FEED TUBE)

main90430-14235199610

44413TUBE, PRESSURE FEED, NO.1

main44413-65030199610

44421DTUBE, CONTROL VALVE TO POWER CYLINDER, NO.1

main44421-65010199610-199906

main44421-65020199906

44422ATUBE, CONTROL VALVE TO POWER CYLINDER NO.2

main44422-65020199906

main44422-65030199610-199906

44456BRETAINER, TUBE SUPPORT

main44456-65011199610-199906

44466ARETAINER, TUBE SUPPORT, NO.2

main44466-37010199906

main44466-65011199610-199906

45091VALVE SUB-ASSY, REAR STEERING CONTROL ACTUATOR

main45091-65010199610

45092ACTUATOR SUB-ASSY, REAR STEERING CONTROL

main45092-65010199610

9040114003

main90401-14003

9040116030

main90401-16030

9043014235

main90430-14235

9043016168

main90430-16168

9161160612

main91611-60612

9161160616

main91611-60616

91612G1020

main91612-G1020

91652B0814

main91652-B0814

91652B0816

main91652-B0816

91652B0825

main91652-B0825

9671119020

main96711-19020

23 parts on this diagram · 3 diagrams in section
