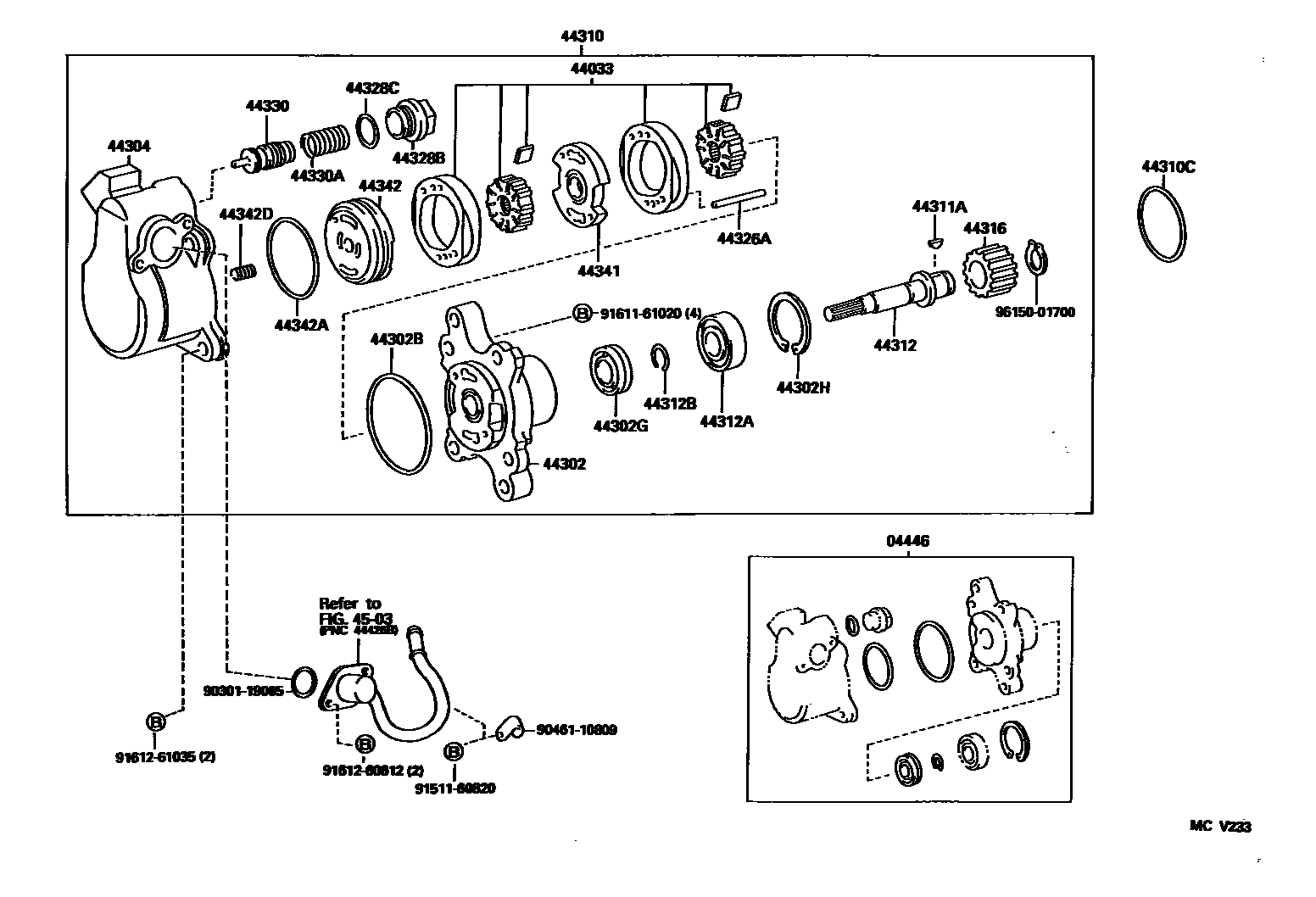

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-65010iBXD20199610

44033ROTOR SUB-ASSY, W/CAM & VANE

main44033-36050iBXD20199610

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-36220iBXD20199610

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90029-20043iBXD20199610

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90029-21018iBXD20199610

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main96151-04000iBXD20199610

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-36220iBXD20199610

44310PUMP ASSY, VANE

main44310-65010iBXD20199610

44310CRING, O(FOR VANE PUMP)

main90301-60002iBXD20199610

44311AKEY, VANE PUMP PULLEY

main90029-18001iBXD20199610

44312SHAFT, VANE PUMP

main44312-36120iBXD20199610

44312ABEARING(FOR VANE PUMP SHAFT)

main90029-36003iBXD20199610

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90029-52402iBXD20199610

44316GEAR, VANE PUMP

main44316-36020iBXD20199610

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main44347-24010iBXD20199610

L=45.8

44328BEND, VANE PUMP HOUSING

main44328-89101iBXD20199610

44328CRING, O(FOR PUMP HOUSING END)

main90029-20042iBXD20199610

44330VALVE ASSY, FLOW CONTROL

main44330-36230iBXD20199610

TWO GROOVE

main44330-36240iBXD20199610

ONE GROOVE

main44330-36250iBXD20199610

NO GROOVE

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90029-60002iBXD20199610

44341PLATE, VANE PUMP SIDE, FRONT

main44341-24020iBXD20199610

44342PLATE, VANE PUMP SIDE, REAR

main44342-36050iBXD20199610

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-55007iBXD20199610

44342DSPRING, COMPRESSION(FOR PRESSURE PLATE)

main90029-60001iBXD20199610

4503POWER STEERING TUBE

→ Go to FIG 45-03

9030119005

main90301-19005

9046110809

main90461-10809

9151160820

main91511-60820

9161161020

main91611-61020

9161260612

main91612-60612

9161261035

main91612-61035

9615001700

main96150-01700

31 parts on this diagram · 2 diagrams in section
