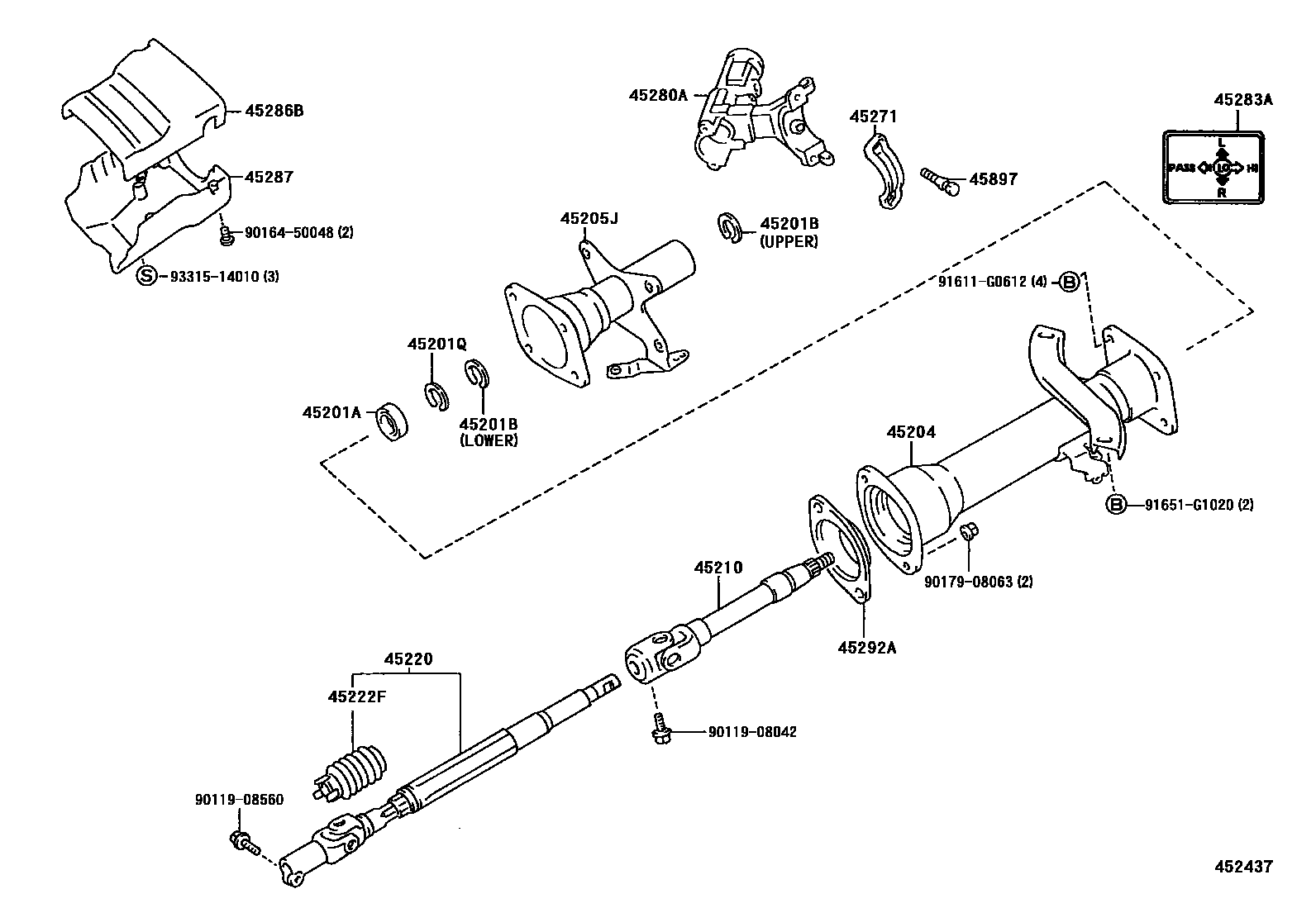

STEERING COLUMN & SHAFT

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-30077iBXD20199610

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iBXD20199610

T=1.20,LOWER

main90520-17269iBXD20199610

T=1.20,UPPER

45201QRING(FOR STEERING COLUMN RING)

main96152-00300iBXD20199610

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-65010iBXD20199610

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-65020iBXD20199610

45210SHAFT ASSY, STEERING MAIN

main45210-65020iBXD20199610

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-65010iBXD20199610

45222FCOVER, DUST

main45222-60031iBXD20199610

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iBXD20199610

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-65010iBXD20199610

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iBXD20199610

45286BCOVER, STEERING COLUMN, UPR

main45286-65010-C0iBXD20199610

BLACK,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-65010-C0iBXD20199610

BLACK,TRIM1#

45292ACOVER, MAIN SHAFT LOWER DUST

main45292-27020iBXD20199610

45897BOLT, STEERING LOCK SET

main45897-12020×2iBXD20199610

9011908042

main90119-08042

9011908560

main90119-08560

9016450048

main90164-50048

9017908063

main90179-08063

91611G0612

main91611-G0612

91651G1020

main91651-G1020

9331514010

main93315-14010

22 parts on this diagram · 1 diagram in section
