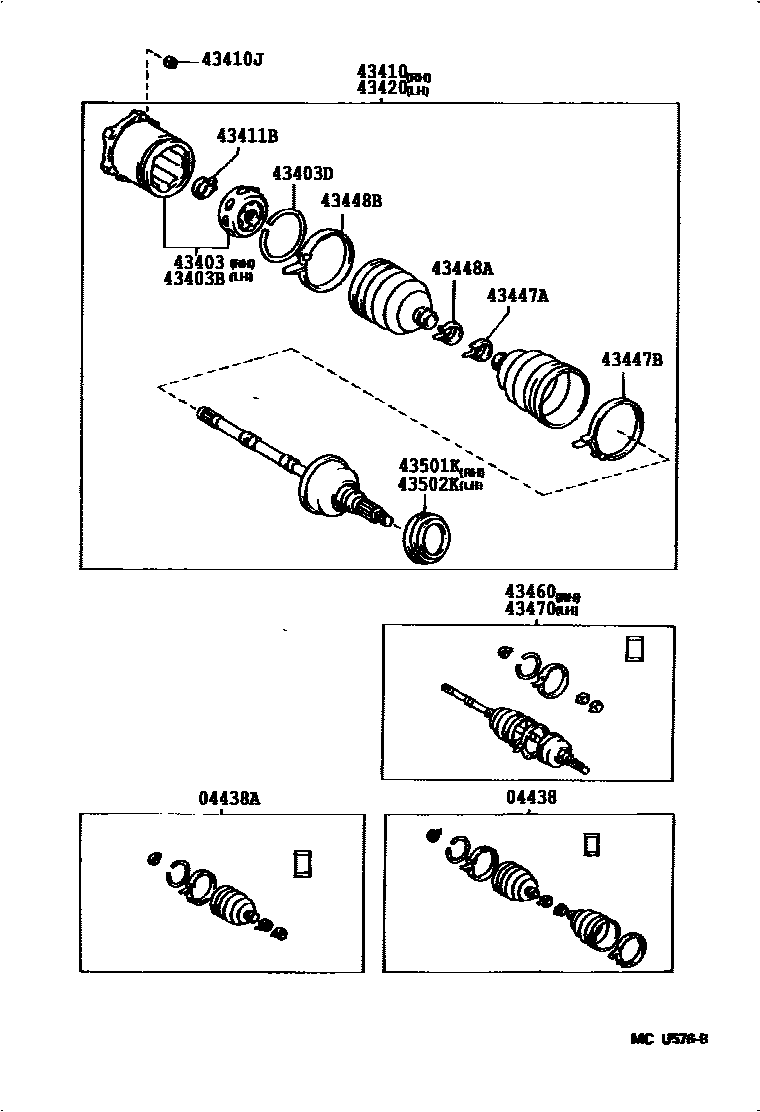

FRONT DRIVE SHAFT

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-65020iBXD20199610

sub04438-65021

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-65010iBXD20199610

sub04438-65011

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-65010iBXD20199610

43403BJOINT SET, FRONT AXLE INBOARD, LH

main43403-65010iBXD20199610

43403DRING, HOLE SNAP (FOR FRONT AXLE INBOARD JOINT SET)

main90521-99053iBXD20199610

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-65010iBXD20199610-199905

sub43430-65011

main43430-65011iBXD20199905

43410JNUT (FOR FRONT DRIVE SHAFT)

main90179-10072iBXD20199610

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-32010iBXD20199610

43420SHAFT ASSY, FRONT DRIVE, LH

main43430-65010iBXD20199610-199905

sub43430-65011

main43430-65011iBXD20199905

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90460-42004iBXD20199610

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90460-99004iBXD20199610

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90460-42004iBXD20199610

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90460-99002iBXD20199610

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-69015iBXD20199610-199905

sub43460-69016

main43460-69016iBXD20199905

sub43460-69017

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43460-69015iBXD20199610-199905

sub43460-69016

main43460-69016iBXD20199905

sub43460-69017

43501KSEAL, DUST (FOR FRONT AXLE HUB RH)

main90304-76003iBXD20199801

43502KSEAL, DUST (FOR FRONT AXLE HUB LH)

main90304-76003iBXD20199801

17 parts on this diagram · 1 diagram in section
