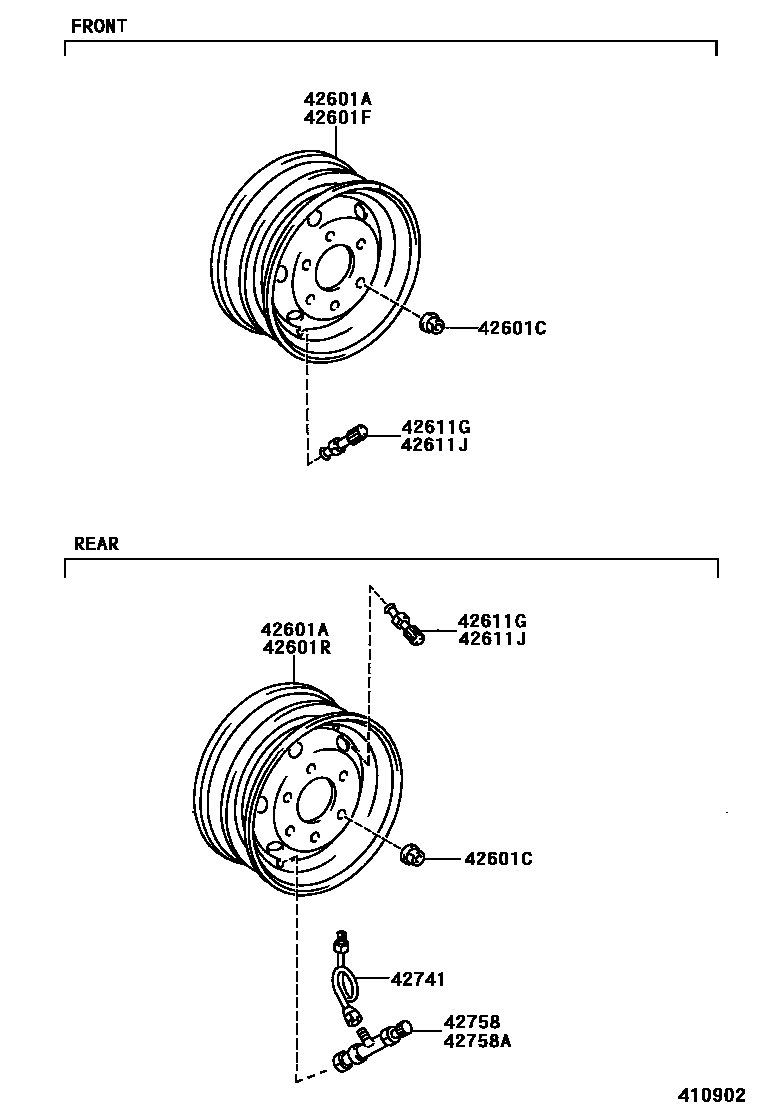

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601AWHEEL, DISC (FOR SPARE)

main42601-65040iBXD20199610

17.5X8.25

main42601-65050iBXD20199610

17.5X8.25,W(TIRE INFLATION SYSTEM)

42601CNUT, HUB (FOR AXLE)

main90179-20020×12iBXD20199610

RH

main90179-20021×12iBXD20199610

LH

42601FWHEEL, DISC (FOR FRONT)

main42601-65040×2iBXD20199610

17.5X8.25

42601RWHEEL, DISC (FOR REAR)

main42601-65040×2iBXD20199610

17.5X8.25

main42601-65050×2iBXD20199610

17.5X8.25,W(TIRE INFLATION SYSTEM)

42611GVALVE (FOR TUBELESS TIRE)

main90942-05023×4iBXD20199610

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05023iBXD20199610

42741TUBE, TIRE AIR CONTROL, NO.1

main42741-65010×2iBXD20199610

42758VALVE, TIRE AIR CONTROL

main42758-65010×2iBXD20199610

42758AVALVE, TIRE AIR CONTROL

main42758-65020iBXD20199610

9 parts on this diagram · 2 diagrams in section
