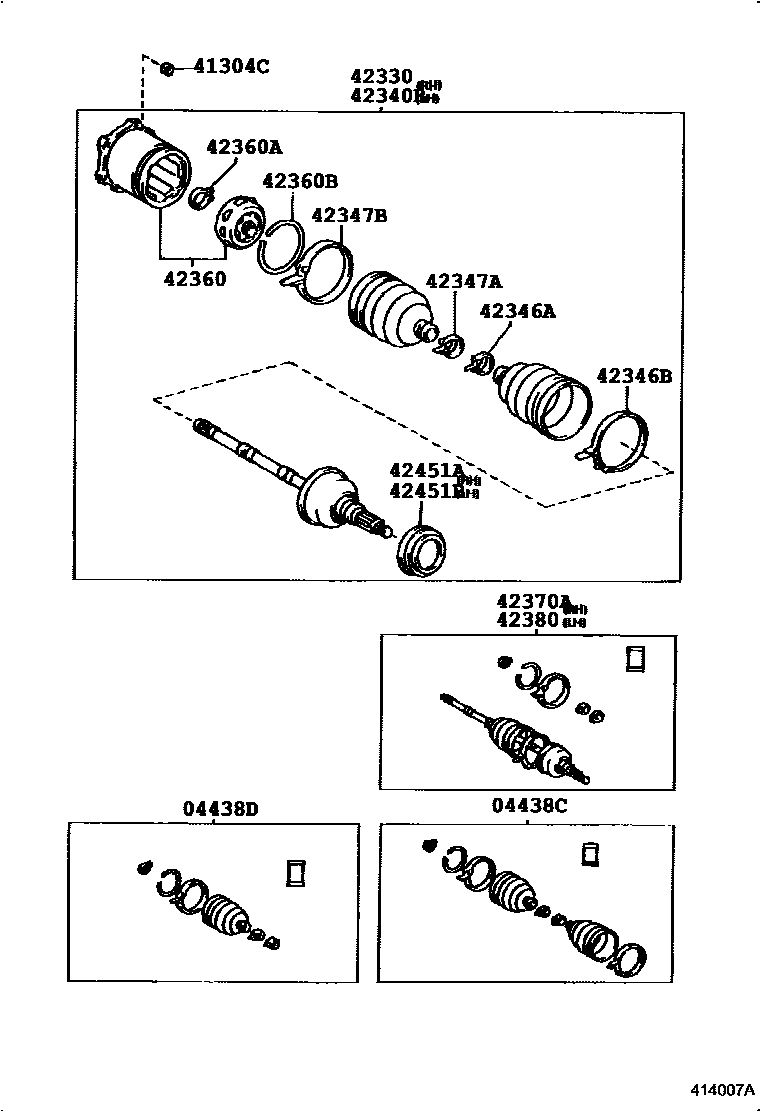

REAR AXLE SHAFT & HUB
04438CBOOT KIT, REAR DRIVE SHAFT
04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT
41304CNUT (FOR DIFFERENTIAL SIDE GEAR SHAFT)
42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42360JOINT ASSY, REAR DRIVE SHAFT INBOARD
42360ARING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT)
42360BRING, SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT)
42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH
42380SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH
42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH
42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH
16 parts on this diagram · 1 diagram in section
