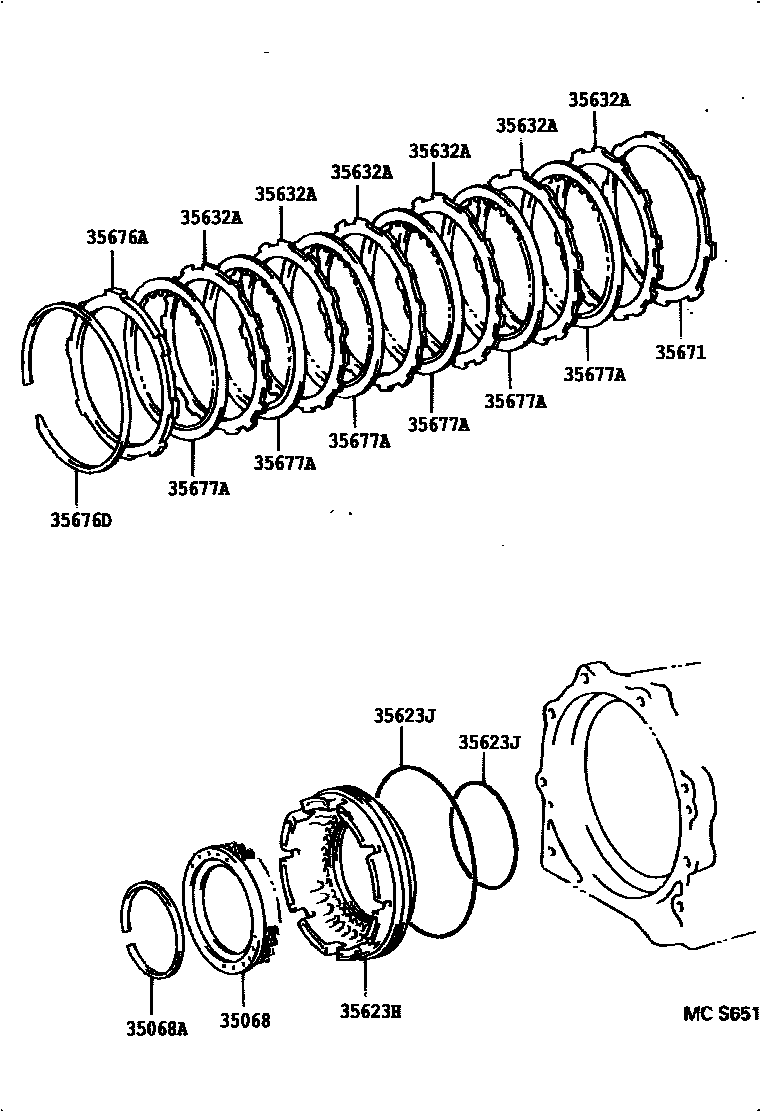

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-36010iBXD20199610-200110

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-87001iBXD20199610-200110

35623HPISTON, 1ST & REVERSE BRAKE

main35623-60020iBXD20199610-200110

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94002iBXD20199610-200110

INNER

main90301-99030iBXD20199610-200110

OUTER

35632APLATE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35632-60030×6iBXD20199610-199909

main35632-60031×6iBXD20199909-200110

35671PLATE, BRAKE CUSHION

main35671-36010iBXD20199610-200110

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-60050iBXD20199610-200110

T=6.65

main35676-60060iBXD20199610-200110

T=7.05

main35676-60070iBXD20199610-200110

T=7.45

35676DRING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE)

main90521-99109iBXD20199610-200110

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35633-60030×6iBXD20199610-200110

9 parts on this diagram · 1 diagram in section
