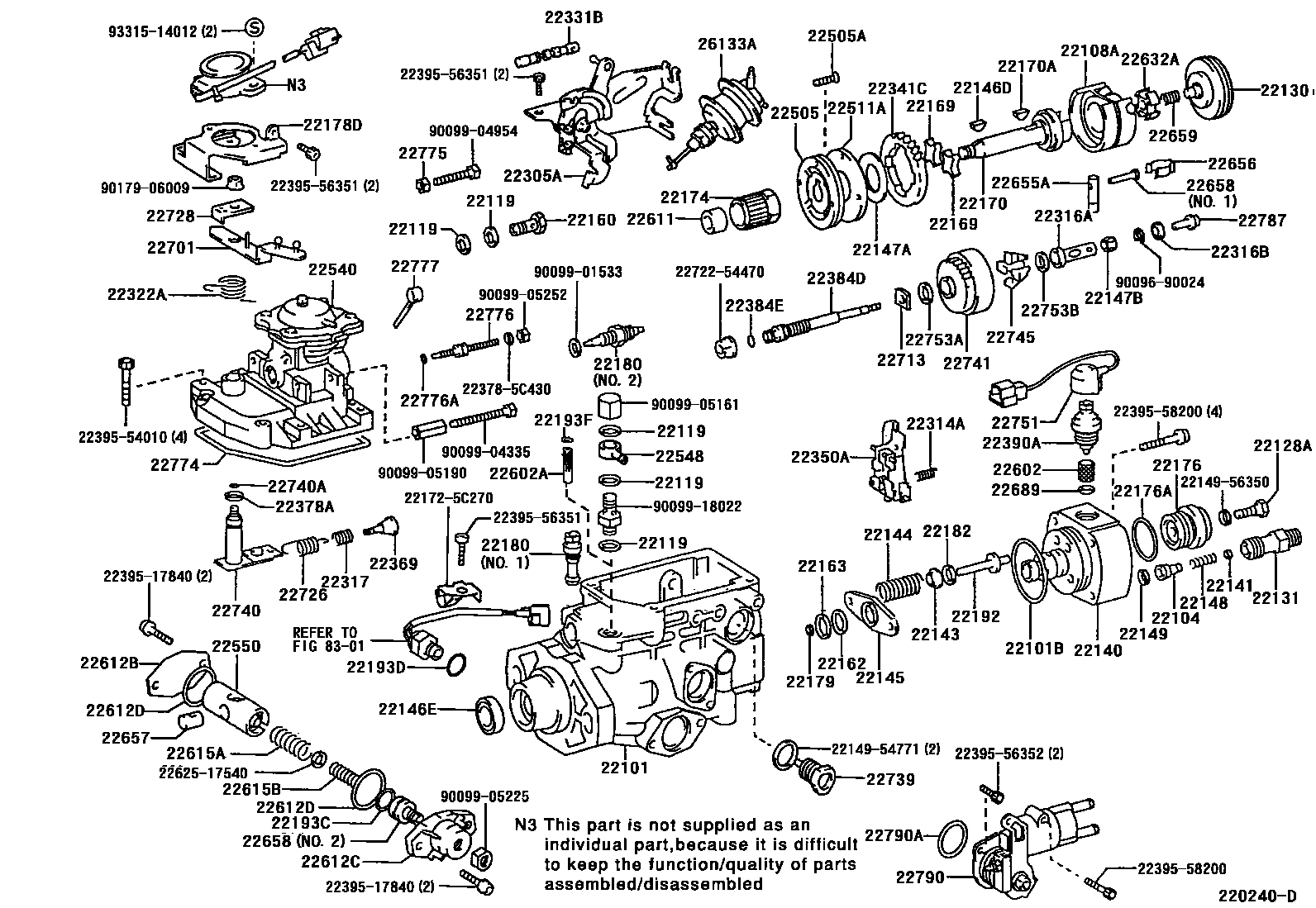

INJECTION PUMP BODY
22101HOUSING SUB-ASSY, INJECTION PUMP
22101BRING, O(FOR INJECTION PUMP HOUSING)
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22108ARING SUB-ASSY, ROLLER
22119WASHER, AIR BLEEDER NIPPLE
22128ABOLT, DISTRIBUTIVE HEAD
22130CAMPLATE SUB-ASSY, FACE
22131HOLDER, DELIVERY VALVE
22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP
22141SEAT, DELIVERY VALVE SPRING
22143SEAT, SPRING UPPER
22144SPRING, PUMP PLUNGER
22145SEAT, SPRING, LOWER
22146DKEY(FOR DRIVE GEAR)
22146ESEAL(FOR DRIVE SHAFT)
22147AWASHER, DRIVE SHAFT
22147BRING, GOVERNOR SLEEVE
22148SPRING, DELIVERY VALVE
22149GASKET, DELIVERY VALVE
22160SCREW SUB-ASSY, OVERFLOW
22162PLATE, PLUNGER UPPER
22163PLATE, PLUNGER LOWER
22169JOINT, RUBBER
22170SHAFT SUB-ASSY, DRIVE
22170AKEY(FOR DRIVE SHAFT)
22174SHAFT, SPLINE
22176PLUG, DISTRIBUTIVE HEAD
22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)
22178DBRACKET, IDLE UP
22179SHIM, PLUNGER ADJUSTING
T=1.9
T=2.0
T=2.1
T=2.2
T=2.3
T=2.4
T=2.5
T=2.6
T=2.7
T=2.8
T=2.9
22180VALVE SUB-ASSY, REGULATOR
NO.2
NO.2/ -17140 GA SEI
NO.1
22182PLATE, TAPPET ADJUSTING SHIM
T=0.9
T=1.1
T=1.3
T=1.4
T=0.5
T=0.8
T=1.0
T=1.2
T=1.5
T=1.8
T=2.0
22192GUIDE SUB-ASSY, PLUNGER SPRING
22193RING, O(FOR LEVER CONNECTING PIN)
22193CRING, O(FOR TIMER COVER STOPPER)
22193DRING, O(FOR REVOLUTION DETECTOR)
22193FRING, O(FOR FUEL INJECTION PUMP FILTER)
22305AIDLE-UP SUB-ASSY
22314ASPRING, LEVER SUPPORT
22316ASLEEVE, GOVERNOR
ID=1.00
22316BBEARING, BALL(FOR GOVERNOR SLEEVE)
22317SPRING, GOVERNOR DOMPER
K=0.1,L=8.2
22322ASPRING, RETURN
22331BROD SUB-ASSY
22341CGEAR, GOVERNOR DRIVE
22350AGOVERNOR ASSY, TORQUE CONTROL
22369SEAT, GOVERNOR SPRING
22378AWASHER, GOVERNOR THRUST
22384DSHAFT, GOVERNOR
22384ERING, O(FOR GOVERNOR MAIN SHAFT)
22505PUMP SUB-ASSY, FUEL FEED
22505ASCREW(FOR FUEL FEED PUMP)
22511ACOVER, FEED PUMP
22540COMPENSATOR SUB-ASSY, BOOST
22548NIPPLE, SWIVEL
22550PISTON ASSY, TIMER
22602FILTER SUB-ASSY, FUEL INJECTION PUMP
22602AFILTER SUB-ASSY, FUEL INJECTION PUMP, NO.2
22611NUT, TIMER ROUND
22612BCOVER, TIMER
22612CCOVER, TIMER
22612DRING, O(FOR TIMER COVER)
22615ASPRING, TIMER OUTER
K=1.7,L=27.9
22615BSPRING, TIMER INNER
K=0.13,L=35.1
K=0.15,L=34.6
K=0.16,L=34.6
K=0.12,L=35.9
K=0.14,L=35.0
22632ACOUPLING, INJECTION PUMP
22655APIN, TIMER SLIDE
22656CLIP, TIMER
22657CLIP, TIMER
22659SPRING, COUPLING
22689WASHER(FOR SWIVEL NIPPLE)
22701LEVER SUB-ASSY, ADJUSTING
MARK"564"
MARK"565"
MARK"566"
22713WASHER, GOVERNOR GEAR ADJUSTING
T=1.05
T=1.25
T=1.45
T=1.65
T=1.85
22726SPRING, SPEED CONTROL
22728GUIDE, RETURN SPRING
22739BOLT, GOVERNOR LINK SUPPORT
22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING
L=20
L=23.4
22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)
22741HOLDER SUB-ASSY, FLYWEIGHT
22745FLYWEIGHT, DISTRIBUTIVE PUMP
22751WIRE SUB-ASSY, FUEL CUT SOLENOID
22753AWASHER, FLYWEIGHT, NO.1
22753BWASHER, FLYWEIGHT, NO.2
22774GASKET, GOVERNOR COVER
22775NUT, LOCK(FOR INJECTION PUMP)
22776SCREW, SMOKE SET ADJUSTING
22776ARING, O(FOR SMOKE SET SCREW)
22777CAP, RUBBER(FOR BELLOWS)
22787PLUG, GOVERNOR SLEEVE
L=5.0
L=5.6
L=4.0
L=6.6
L=3.0
22790COVER SUB-ASSY, TIMER
22790ARING, O(FOR TIMER COVER)
26133AACTUATOR SET, IDLE-UP
8301
2214954771GASKET, DELIVERY VALVE
main22149-54771
2214956350GASKET, DELIVERY VALVE
main22149-56350
221725C270CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-5C270
223785C430WASHER, DRAIN SCREW
main22378-5C430
2239517840BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-17840
2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54010
2239556351BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56351
2239556352BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56352
2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-58200
2262517540WASHER, TIMER SENSOR ADJUSTING
main22625-17540
2272254470NUT, GOVERNOR SHAFT ROCK
main22722-54470
9009690024
main90096-90024
9009901533
main90099-01533
9009904335
main90099-04335
9009904954
main90099-04954
9009905161
main90099-05161
9009905190
main90099-05190
9009905225
main90099-05225
9009905252
main90099-05252
9009918022
main90099-18022
9017906009
main90179-06009
9331514012
main93315-14012
116 parts on this diagram · 3 diagrams in section
