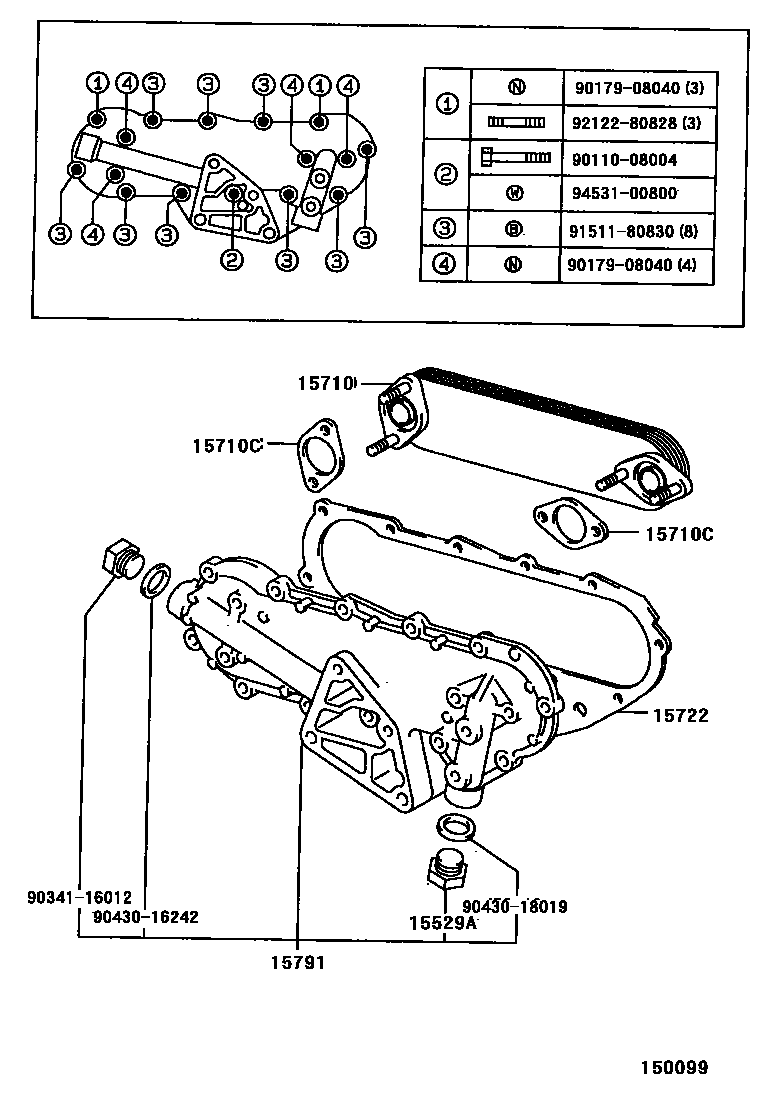

ENGINE OIL COOLER

15529APLUG

main90341-18006i15BFT..BXD20199610

15710COOLER ASSY, OIL

main15710-58030i15BFT..BXD20199610

15710CGASKET(FOR OIL COOLER)

main15785-58010×2i15BFT..BXD20199610

15722GASKET, OIL COOLER

main15725-56020i15BFT..BXD20199610

15791CASE, OIL COOLER

main15701-58050i15BFT..BXD20199610

9011008004

main90110-08004

9017908040

main90179-08040

9034116012

main90341-16012

9043016242

main90430-16242

9043018019

main90430-18019

9151180830

main91511-80830

9212280828

main92122-80828

9453100800

main94531-00800

13 parts on this diagram · 1 diagram in section
