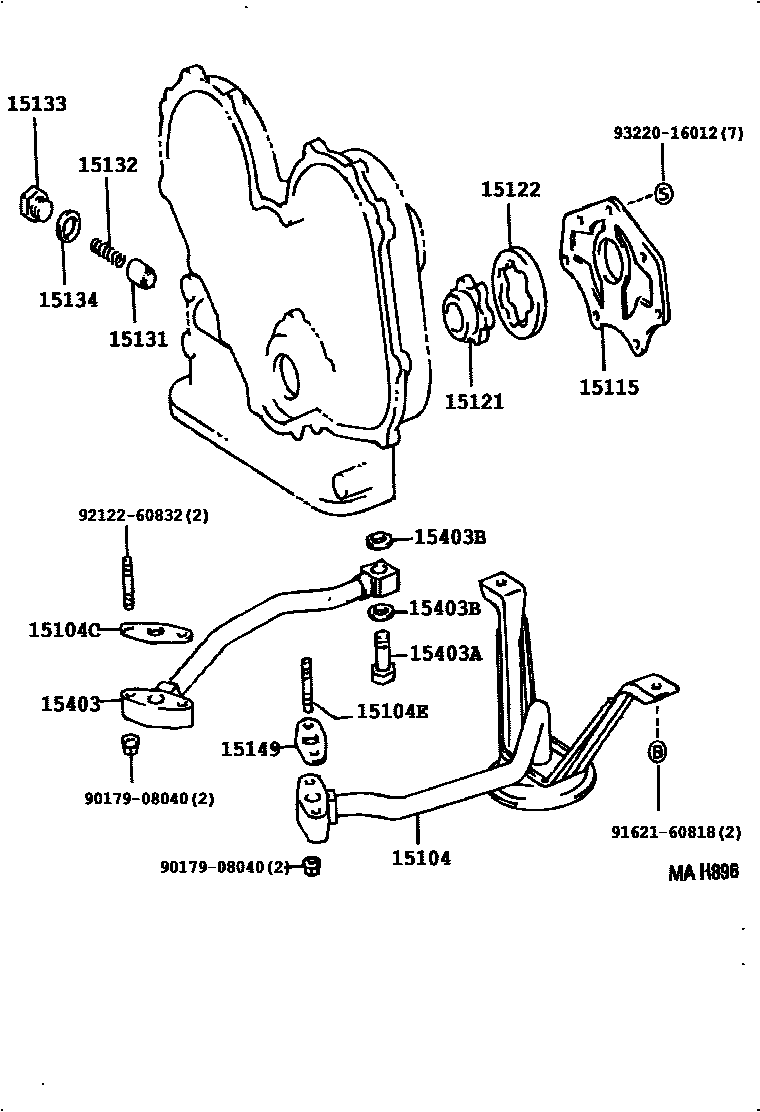

ENGINE OIL PUMP

15104STRAINER SUB-ASSY, OIL

main15104-56061i15BFT..BXD20199610-199904

main15104-56062i15BFT..BXD20199904

15104CGASKET(FOR OIL STRAINER)

main15149-56020i15BFT..BXD20199610-199908

main15149-58010i15BFT..BXD20199908

15104EBOLT, STUD(FOR OIL STRAINER)

main92122-60832×2i15BFT..BXD20199610

15115COVER, OIL PUMP

main15115-56090i15BFT..BXD20199610

15121GEAR, OIL PUMP DRIVE

main15121-56090i15BFT..BXD20199610

15122GEAR, OIL PUMP DRIVEN

main15122-56090i15BFT..BXD20199610

15131VALVE, OIL PUMP RELIEF

main15131-24010i15BFT..BXD20199610

15132SPRING, OIL PUMP RELIEF VALVE

main15132-56080i15BFT..BXD20199610

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i15BFT..BXD20199610

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i15BFT..BXD20199610

15149GASKET, OIL STRAINER FLANGE

main15149-56020i15BFT..BXD20199610-199908

main15149-58010i15BFT..BXD20199908

15403PIPE SUB-ASSY, OIL PUMP OUTLET

main15403-56050i15BFT..BXD20199610

15403AUNION(FOR OIL PUMP OUTLET PIPE)

main90401-20009i15BFT..BXD20199610

15403BGASKET(FOR OIL PUMP OUTLET PIPE)

main90430-20018×2i15BFT..BXD20199610

9017908040

main90179-08040

9162160818

main91621-60818

9212260832

main92122-60832

9322016012

main93220-16012

18 parts on this diagram · 1 diagram in section
