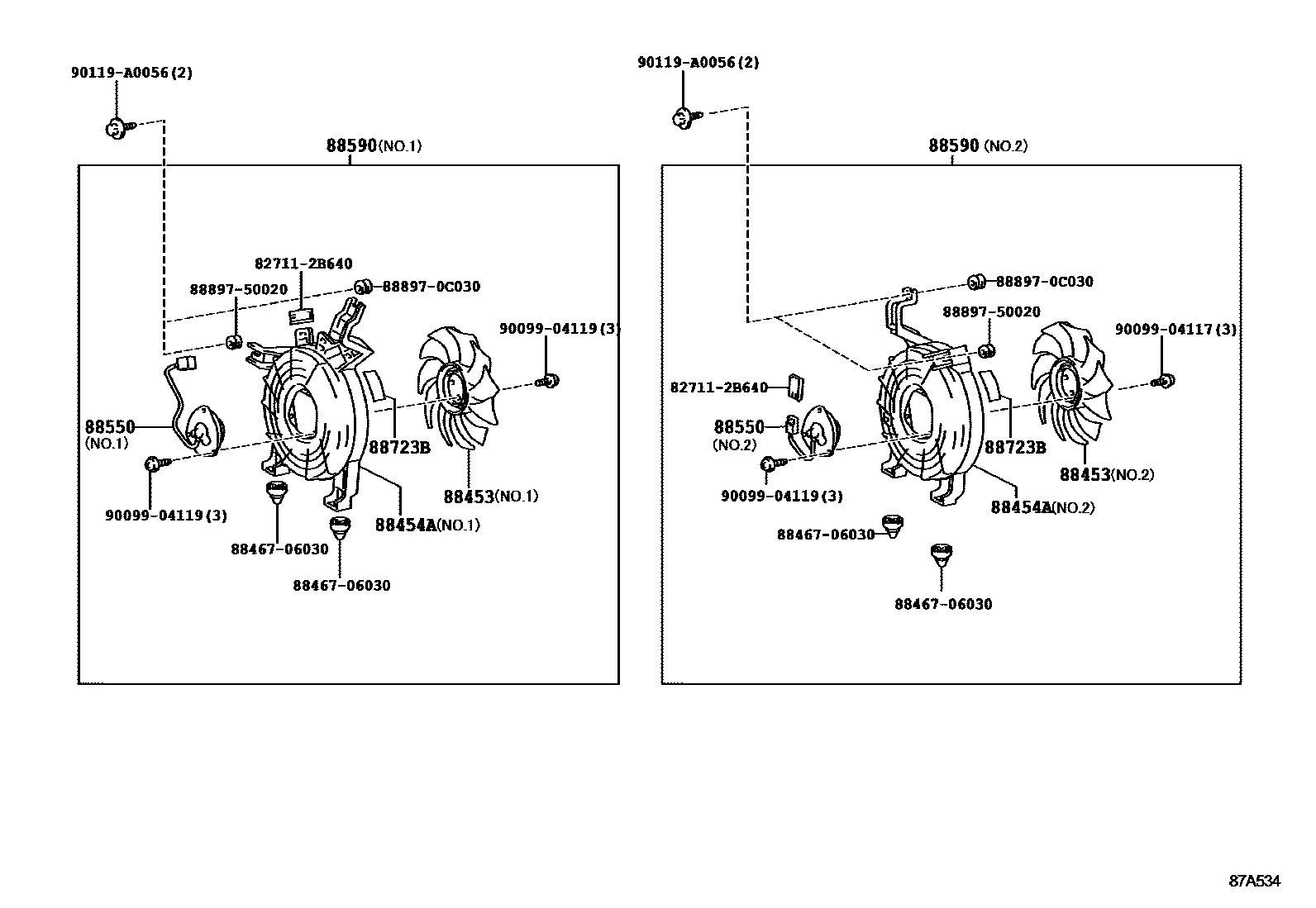

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1FUN SHROUD 0002 1FRONT PIPING 0003 1REAR PIPING

88453FAN, COOLING (FOR CONDENSER)

main88453-0C010iUSK60200811-200911

NO.1

main88453-60020iUSK6#200811-201609

NO.2

88454ASHROUD, FAN

main88454-0C030iUSK60200811-200911

NO.1

main88454-0C031iUSK6#200911-201609

NO.1

main88454-0C040iUSK6#200811-201609

NO.2

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-34010iUSK6#200911-201609

NO.1

main88550-60110iUSK6#200811-201609

NO.2

88590BLOWER ASSY, W/SHROUD

main88590-0C030iUSK60200811-200910

NO.1

main88590-0C031iUSK6#200911-201609

NO.1

main88590-0C040iUSK6#200811-201609

NO.2

88723BLABEL, COOLER SERVICE CAUTION

main16793-28020×2iUSK6#200811-201609

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8846706030CUSHION, COOLER CONDENSER, NO.1

main88467-06030

888970C030VALVE, COOLER MAGNET

main88897-0C030

8889750020VALVE, COOLER MAGNET

main88897-50020

9009904117

main90099-04117

9009904119

main90099-04119

90119A0056

main90119-A0056

12 parts on this diagram · 3 diagrams in section
