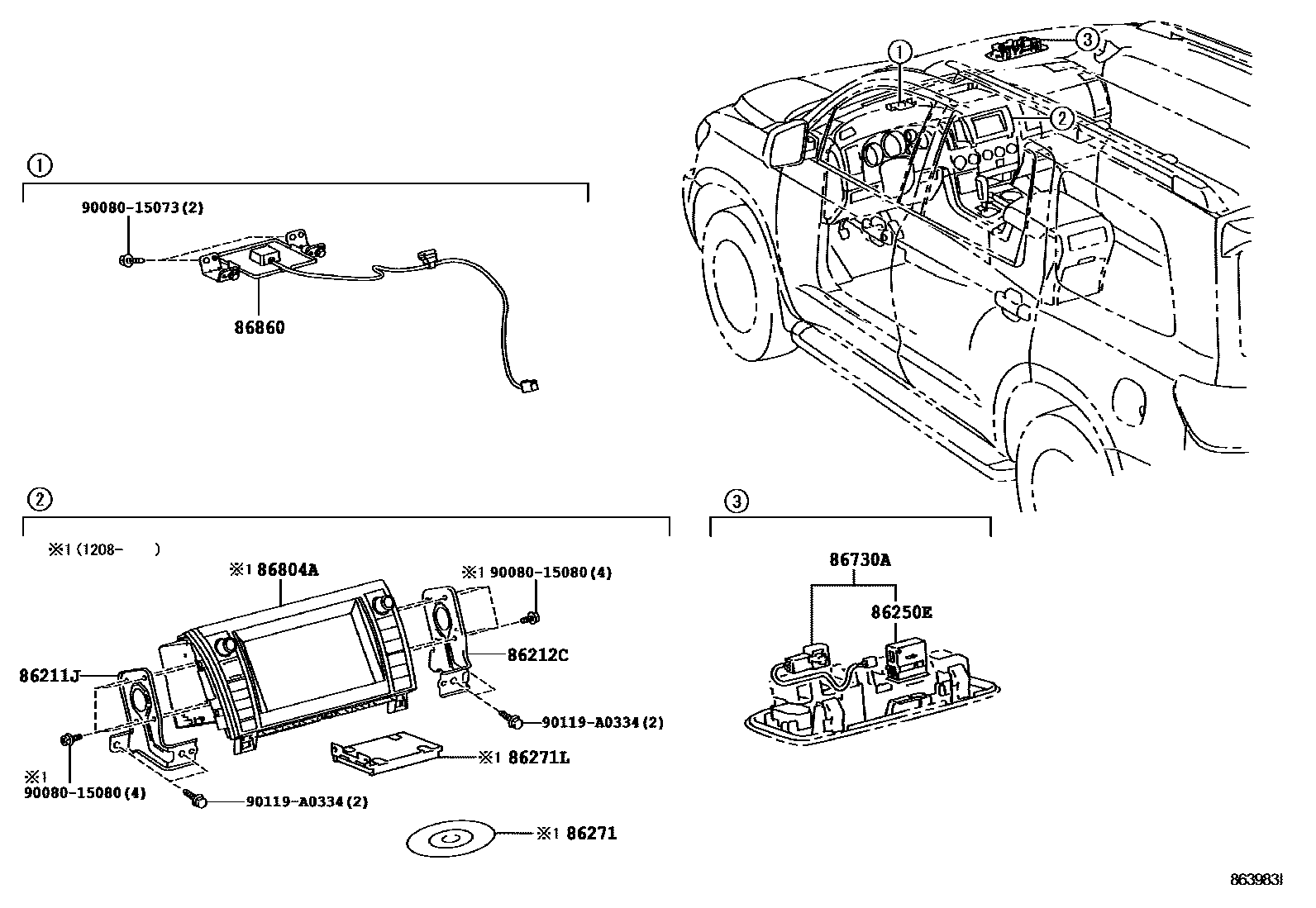

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-0C090iUSK6#..LIMD,PLAT201408-201609

AUDIO-*DA(DELUXE) 12SPEAKER

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-0C090iUSK6#..LIMD,PLAT201408-201609

AUDIO-*DA(DELUXE) 12SPEAKER

86250EMICROPHONE ASSY, AMPLIFIER

main86250-52020iUSK6#..LIMD,PLAT201408-201609

AUDIO-*DA(DELUXE) 12SPEAKER

86271DISC, DISC PLAYER

main86271-06040

main86271-06041

main86807-30130

main86807-30131

main86271-33171

main86271-33172

86271LHARD DISC

86730AMICROPHONE ASSY, TELEPHONE

main86730-52010iUSK6#..LIMD,PLAT201408-201609

AUDIO-*DA(DELUXE) 12SPEAKER

86804ASUB-ASSY, NAVIGATION COMPUTER

86860ANTENNA ASSY, NAVIGATION

main86860-34020

main86860-0C030

9008015073

main90080-15073

9008015080

main90080-15080

90119A0334

main90119-A0334

11 parts on this diagram · 2 diagrams in section
