RADIO RECEIVER & AMPLIFIER & CONDENSER
86120RECEIVER ASSY, RADIO
DELPHI,ID=D1810
PANASONIC,ID=A52853,AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL
PANASONIC,ID=A52853,AUDIO-WITHOUT(AUDIO) 12SPEAKER
PANASONIC,ID=A52853,AUDIO-AVN 12SPEAKER
PANASONIC,ID=A52853
DELPHI
86120AKNOB, RADIO RECEIVER SWITCH
FOR VOLUME KNOB
AUDIO-WITHOUT(AUDIO) 12SPEAKER,FOR VOLUME KNOB
AUDIO-AVN 12SPEAKER,FOR VOLUME KNOB
AUDIO-WITHOUT(AUDIO) 12SPEAKER,FOR TUNER KNOB
FOR TUNER KNOB
AUDIO-AVN 12SPEAKER,FOR TUNER KNOB
AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL,FOR VOLUME KNOB
FOR VOLUME KNOB
AUDIO-WITHOUT(AUDIO) 12SPEAKER,FOR VOLUME KNOB
AUDIO-AVN 12SPEAKER,FOR VOLUME KNOB
86183DCOVER, AUDIO AMPLIFIER
AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL
AUDIO-WITHOUT(AUDIO) 12SPEAKER
AUDIO-AVN 12SPEAKER
AUDIO-AVN AM/FM CD DVD 12SPEAKER
86183HCLIP, AUDIO AMPLIFIER COVER
AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL,BLACK
BLACK
AUDIO-WITHOUT(AUDIO) 12SPEAKER,BLACK
AUDIO-AVN 12SPEAKER,BLACK
AUDIO-AVN AM/FM CD DVD 12SPEAKER,BLACK
86190CADAPTER ASSY, STEREO JACK, NO.1
AUDIO-WITHOUT(AUDIO) 12SPEAKER
AUDIO-WITHOUT(AUDIO) 12SPEAKER
AUDIO-*DA(DELUXE) 12SPEAKER
86211BRACKET, RADIO, NO.1
86212BRACKET, RADIO, NO.2
86280AMPLIFIER ASSY, STEREO COMPONENT
AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL
AUDIO-WITHOUT(AUDIO) 12SPEAKER
AUDIO-AVN 12SPEAKER
AUDIO-AVN AM/FM CD DVD 12SPEAKER
9008011324
main90080-11324
9008015080
main90080-15080
90119A0334
main90119-A0334

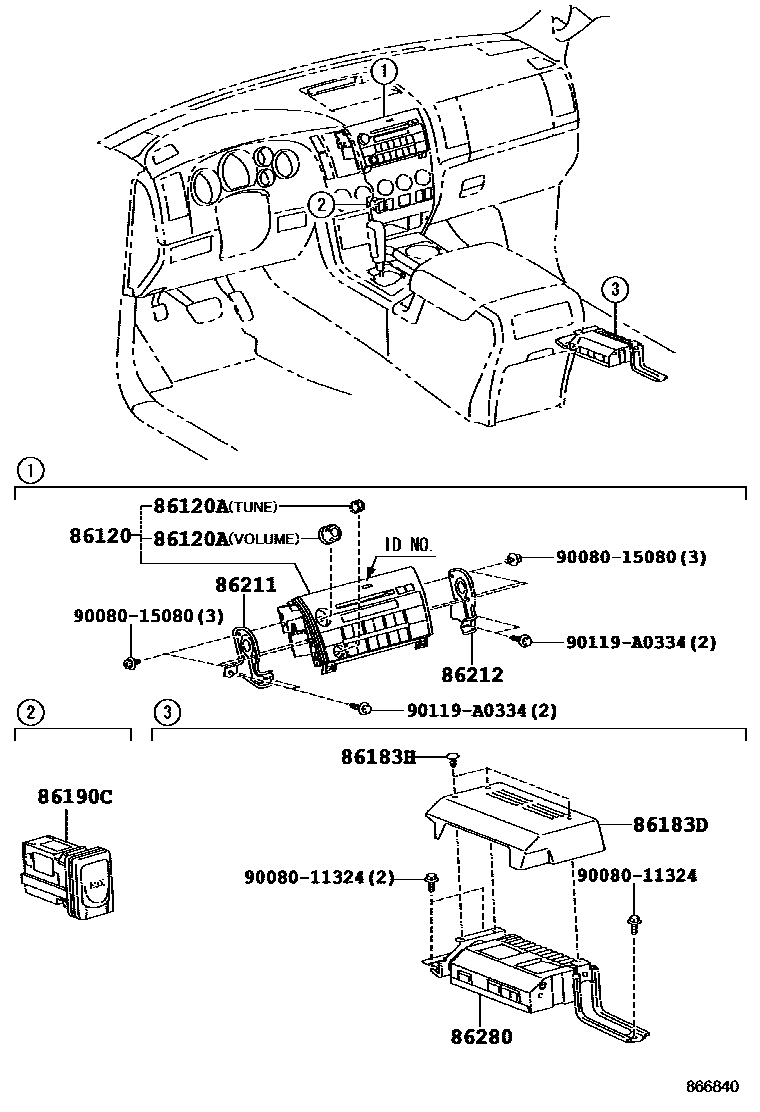

11 parts on this diagram · 2 diagrams in section
