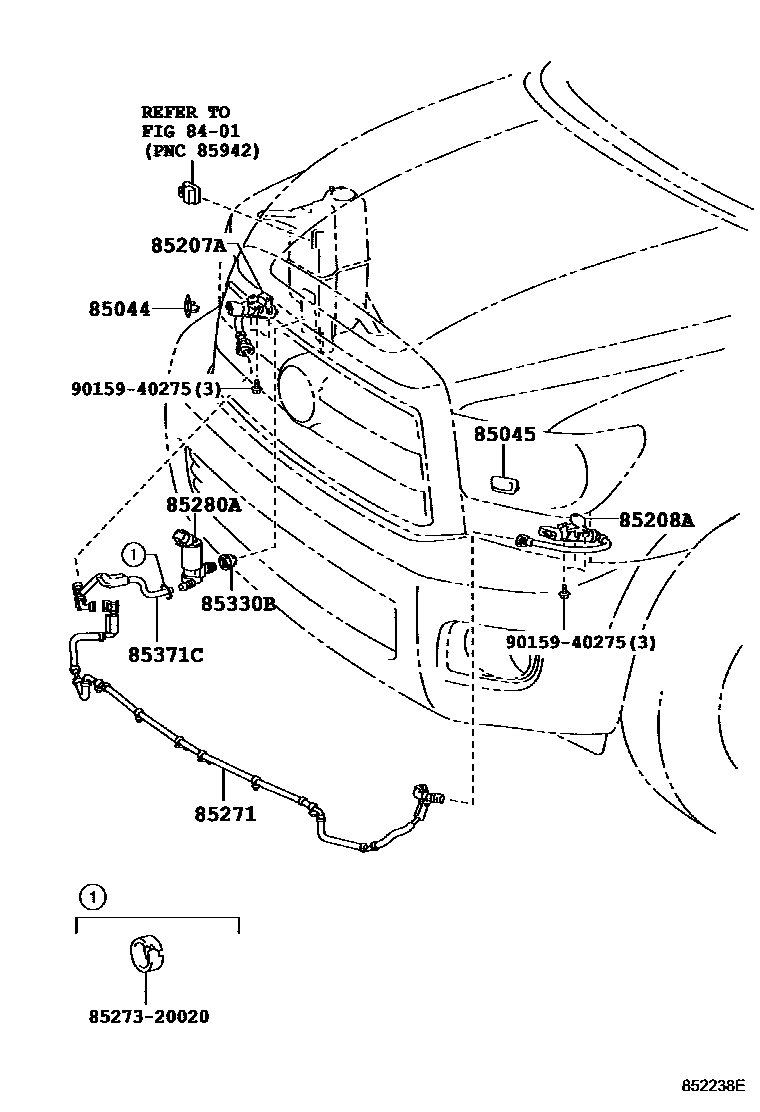

HEADLAMP CLEANER
8401SWITCH & RELAY & COMPUTER
85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
WHITE PEARL CS.,071
WHITE PEARL CS.,070
SILVER ME.,1D6
GRAY ME.,1F9
GRAY ME.,1G3
BLACK,202
DK RED MC,3Q7
BLACKISH RED MC.,3R0
BEIGE M. M.,4Q2
BRONZE M.M.,4T3
BEIGE ME.,4T8
DK.GREEN M.M.,6T8
DK.GREEN MC.,6V4
DK.BLUE MC.,8S6
85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
WHITE PEARL CS.,071
WHITE PEARL CS.,070
SILVER ME.,1D6
GRAY ME.,1F9
GRAY ME.,1G3
BLACK,202
DK RED MC,3Q7
BLACKISH RED MC.,3R0
BEIGE M. M.,4Q2
BRONZE M.M.,4T3
BEIGE ME.,4T8
DK.GREEN M.M.,6T8
DK.GREEN MC.,6V4
DK.BLUE MC.,8S6
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271HOSE, HEADLAMP CLEANER, NO.1
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85371CHOSE, HEADLAMP CLEANER, NO.1
8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH
main85273-20020
9015940275
main90159-40275
11 parts on this diagram · 1 diagram in section
