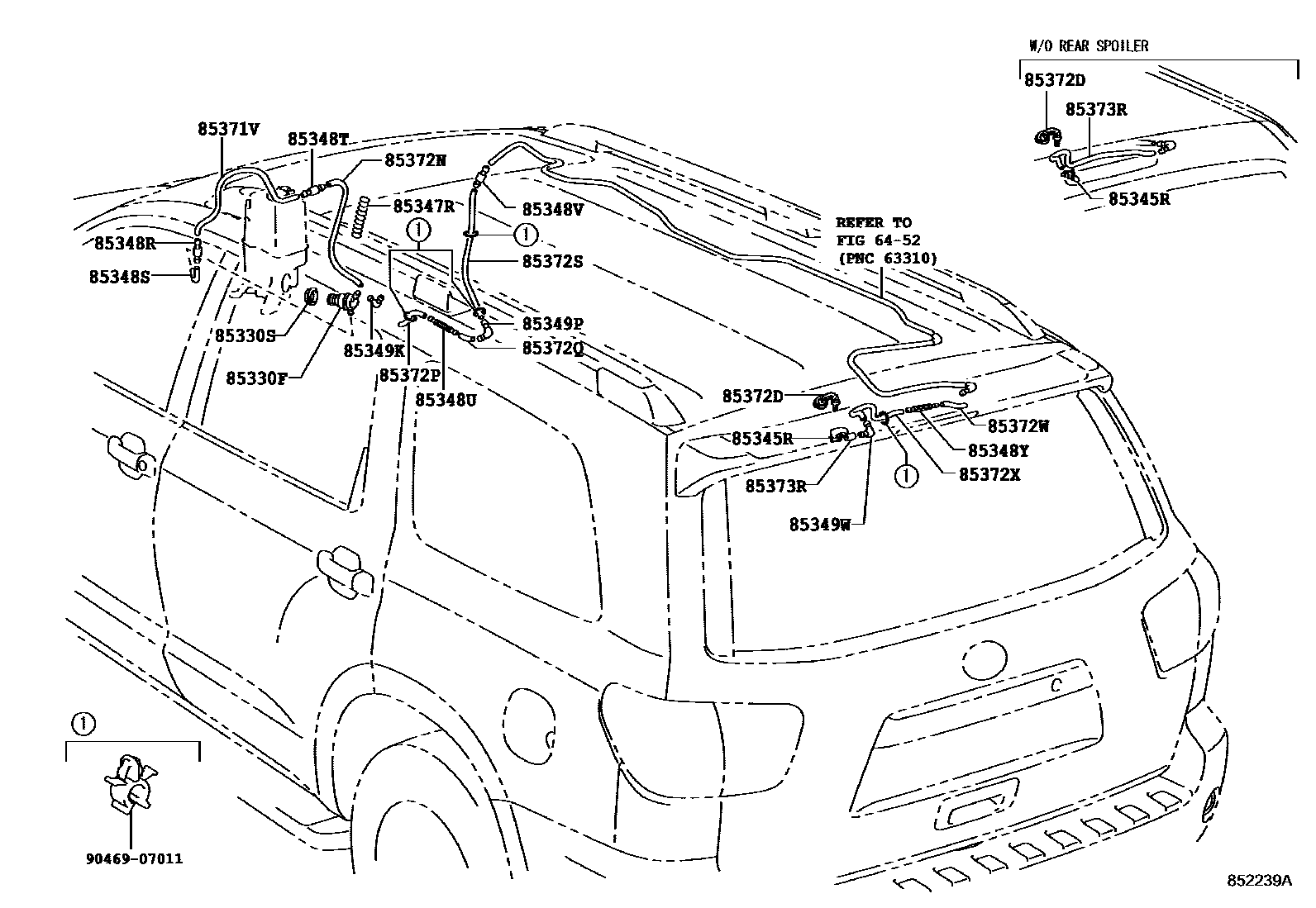

REAR WASHER
6452
85330FMOTOR & PUMP ASSY, RR WASHER
85330SBUSH, REAR WASHER JAR
85345RNOZZLE, REAR WASHER
REAR SPOILER-WITH
85347RSPRING
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
REAR SPOILER-WITH
85349KJOINT, REAR WASHER ELBOW, NO.2
85349PJOINT, REAR WASHER ELBOW, NO.3
85349WJOINT, REAR WASHER ELBOW, NO.4
REAR SPOILER-WITH
85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)
L=650
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=470
L=470,REAR SPOILER-WITH
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=110
L=110,REAR SPOILER-WITH
L=110
L=110,REAR SPOILER-WITH
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=30
L=30,REAR SPOILER-WITH
L=30,REAR SPOILER-WITH
L=30
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=540
L=540,REAR SPOILER-WITH
L=540
L=540,REAR SPOILER-WITH
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=110
L=110,REAR SPOILER-WITH
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
L=390
L=390,REAR SPOILER-WITH
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=450
L=30
L=30,REAR SPOILER-WITH
9046907011
main90469-07011
24 parts on this diagram · 1 diagram in section
