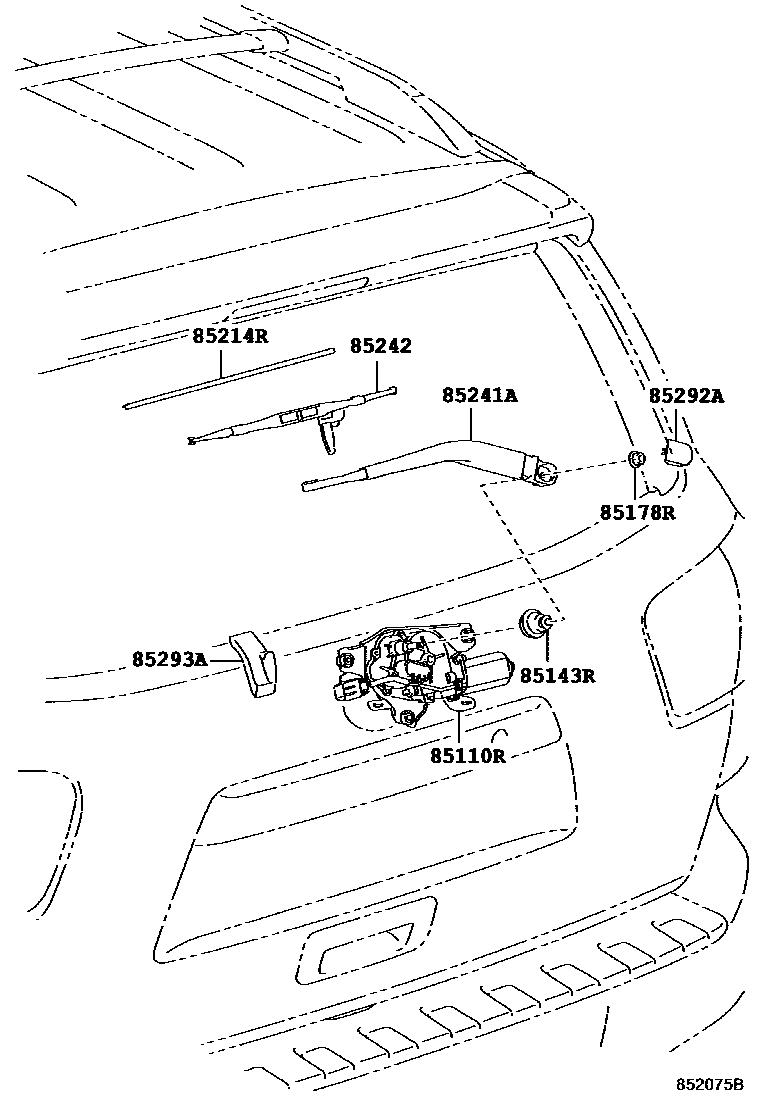

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-0C010iUSK6#200811-201609

85143RGROMMET, REAR WIPER MOTOR

main85143-0C020iUSK6#200811-201609

85178RNUT (FOR REAR WIPER ARM SETTING)

main90080-17021iUSK6#200904-201609

main90179-06158iUSK60200811-200903

85214RRUBBER, REAR WIPER

main85214-0C020iUSK6#200811-201609

85241AARM, REAR WIPER

main85241-0C010iUSK6#200811-201511

main85241-0C011iUSK6#201512-201609

85242BLADE, RR WIPER

main85242-0C010iUSK6#200811-201609

85292ACAP, REAR WIPER ARM HEAD

main85292-0C010iUSK6#200811-201609

85293ASTOPPER,REAR WIPER

main85293-0C010iUSK6#200811-201001

main85293-0C011iUSK6#201002-201003

main85293-0C012iUSK6#201004-201609

8 parts on this diagram · 1 diagram in section
