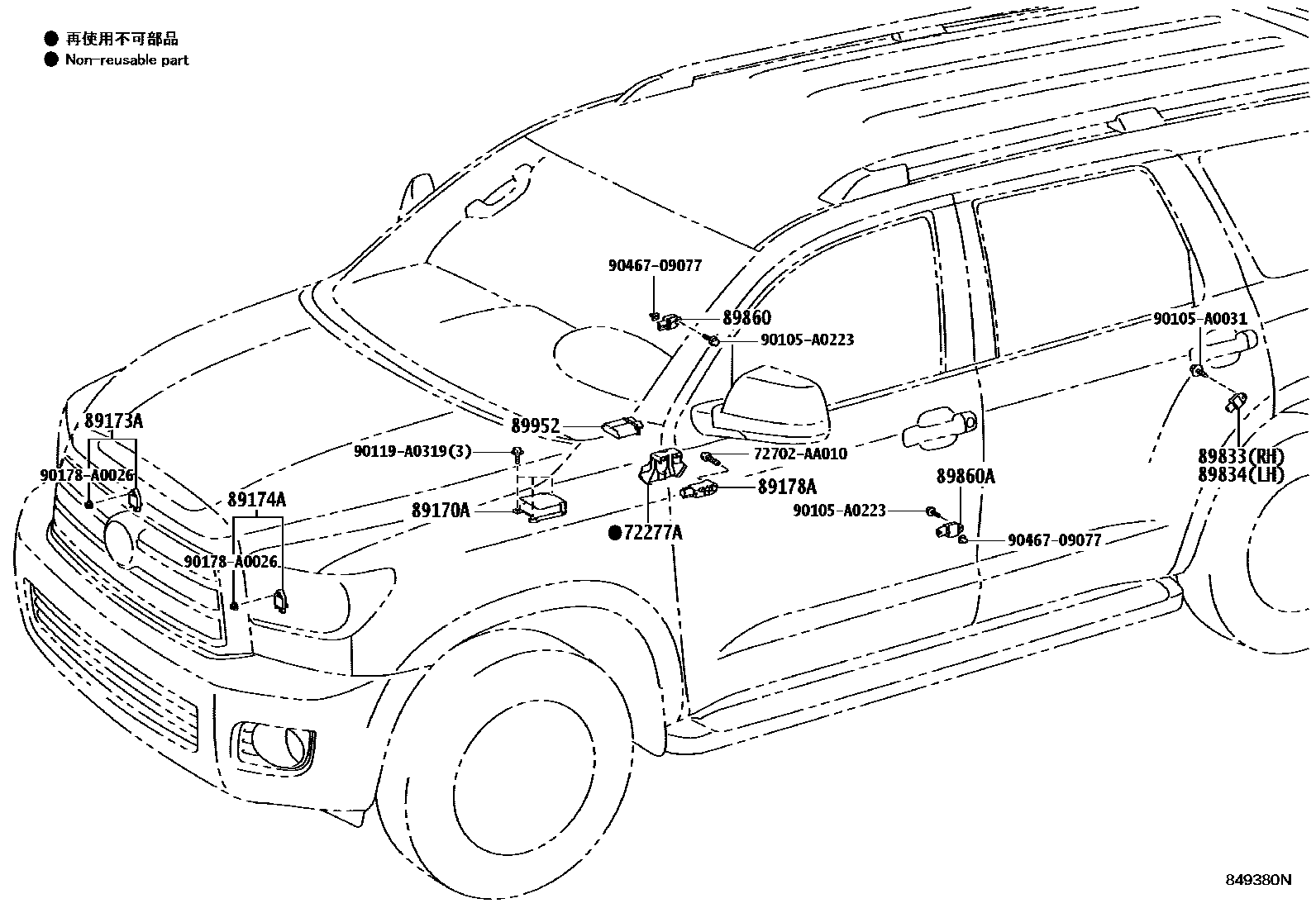

AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-06020supersedes 72277-06010iUSK6#..SR5; USK60..PLAT;USK65..LIMD,PLAT200811-201609

D-POWER SEAT PACKAGE

89170ACOMPUTER ASSY, AIRBAG

main89170-0C380iUSK6#200904-201203

main89170-0C410iUSK60200811-200904

main89170-0C450iUSK6#201203-201205

main89170-0C451iUSK6#201206-201207

main89170-0C452iUSK6#201208-201307

main89170-0C490iUSK6#201308-201408

main89170-0C500iUSK6#201408-201609

89173ASENSOR, AIRBAG, FRONT RH

main89173-09480iUSK6#200811-201203

main89173-09730iUSK6#201203-201609

89174ASENSOR, AIRBAG, FRONT LH

main89173-09480iUSK6#200811-201203

main89173-09730iUSK6#201203-201609

89178ASENSOR, SEAT POSITION AIRBAG

main89178-06040supersedes 89178-06030iUSK6#..SR5; USK60..PLAT;USK65..LIMD,PLAT200811-201609

D-POWER SEAT PACKAGE

89833SENSOR, AIRBAG, REAR RH

main89831-0C060iUSK6#200811-201203

main89831-0C100iUSK6#201203-201609

89834SENSOR, AIRBAG, REAR LH

main89831-0C060iUSK6#200811-201203

main89831-0C100iUSK6#201203-201609

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-0C050iUSK6#200811-201203

main89831-0C090iUSK6#201203-201609

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-0C050iUSK6#200811-201203

main89831-0C090iUSK6#201203-201609

89952COMPUTER, OCCUPANT DETECTION

main89952-35011iUSK6#200811-201609

72702AA010BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-AA010

90105A0031

main90105-A0031

90105A0223

main90105-A0223

90119A0319

main90119-A0319

90178A0026

main90178-A0026

9046709077

main90467-09077

16 parts on this diagram · 1 diagram in section
