5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

5253REAR BUMPER & BUMPER STAY

→ Go to FIG 52-53

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

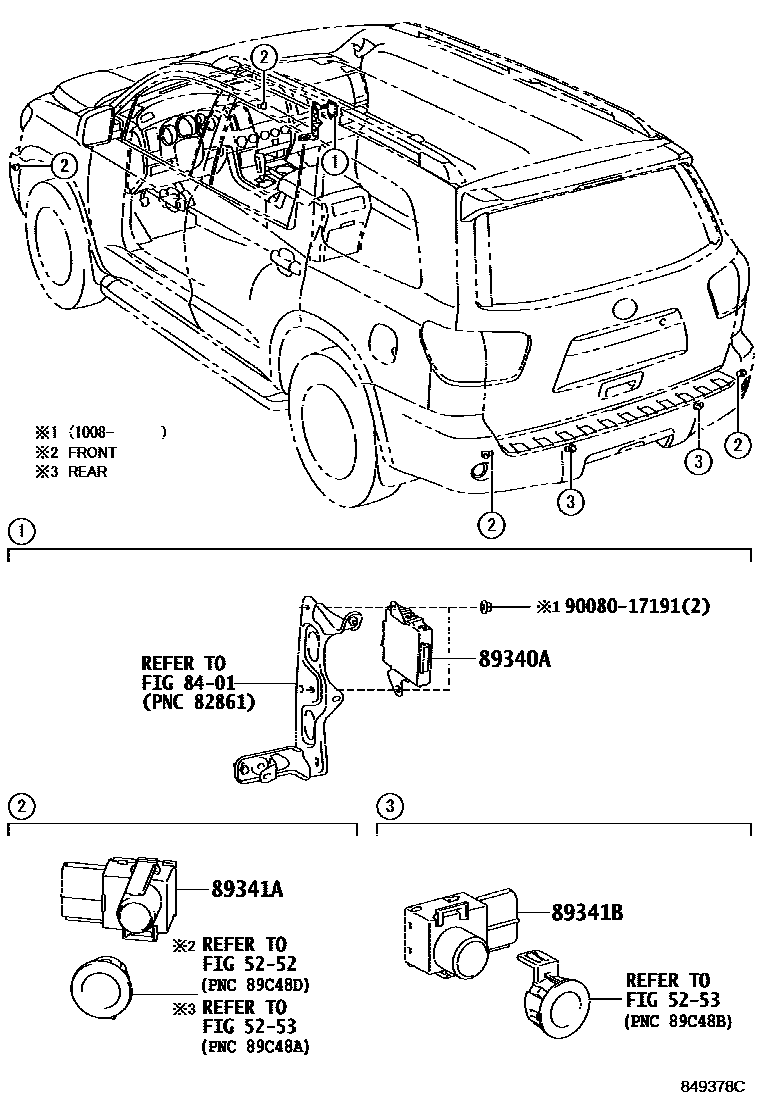

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-0C010i201408-201609

main89340-34010i200811-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

89341ASENSOR, ULTRASONIC, NO.1

main89341-04010-A0×6i201408-201609

SUPER WHITE 2,040

main89341-04010-A1×6i201408-201609

WHITE PEARL CS.,070

main89341-04010-B0×6i201408-201609

SILVER ME.,1D6

main89341-04010-B1×6i201408-201609

GRAY ME.,1G3

main89341-04010-C0×6i201408-201609

BLACK,202

main89341-04010-D0×6i201408-201609

BLACKISH RED MC.,3R0

main89341-04010-E0×6i201408-201609

BRONZE M.M.,4T3

main89341-04010-E1×6i201408-201609

BEIGE ME.,4T8

main89341-33160-A0×4i200811-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SUPER WHITE 2,040; SUPER WHITE 2,040

main89341-33160-A1×4i200811-200904

WHITE PEARL CS.,071

main89341-33160-A2×4i200904-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),WHITE PEARL CS.,070; WHITE PEARL CS.,070

main89341-33160-B1×4i200811-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SILVER ME.,1D6; SILVER ME.,1D6

main89341-33160-B2×4i200811-201008

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1F9; GRAY ME.,1F9

main89341-33160-B5×4i201008-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1G3; GRAY ME.,1G3

main89341-33160-C0×4i200811-201408

BLACK,202; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACK,202

main89341-33160-D1×4i200811-201107

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK RED MC,3Q7; DK RED MC,3Q7

main89341-33160-D6×4i201107-201408

BLACKISH RED MC.,3R0; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACKISH RED MC.,3R0

main89341-33160-E1×4i200811-200904

BEIGE M. M.,4Q2; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BEIGE M. M.,4Q2

main89341-33160-E2×4i200811-201408

BRONZE M.M.,4T3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BRONZE M.M.,4T3

main89341-33160-E8×4i200904-201408

BEIGE ME.,4T8; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BEIGE ME.,4T8

main89341-33160-G1×4i200811-200904

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.GREEN M.M.,6T8; DK.GREEN M.M.,6T8

main89341-33160-G6×4i200904-201008

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.GREEN MC.,6V4; DK.GREEN MC.,6V4

main89341-33160-J2×4i200811-201008

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.BLUE MC.,8S6; DK.BLUE MC.,8S6

89341BSENSOR, ULTRASONIC, NO.2

main89341-33140-A0×2i200811-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SUPER WHITE 2,040; SUPER WHITE 2,040

main89341-33140-A1×2i200811-200904

WHITE PEARL CS.,071

main89341-33140-A2×2i200904-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),WHITE PEARL CS.,070; WHITE PEARL CS.,070

main89341-33140-B1×2i200811-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SILVER ME.,1D6; SILVER ME.,1D6

main89341-33140-B2×2i200811-201008

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1F9; GRAY ME.,1F9

main89341-33140-B5×2i201008-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1G3; GRAY ME.,1G3

main89341-33140-C0×2i200811-201408

BLACK,202; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACK,202

main89341-33140-D1×2i200811-201107

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK RED MC,3Q7; DK RED MC,3Q7

main89341-33140-D6×2i201107-201408

BLACKISH RED MC.,3R0; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACKISH RED MC.,3R0

main89341-33140-E1×2i200811-200904

BEIGE M. M.,4Q2; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BEIGE M. M.,4Q2

main89341-33140-E2×2i200811-201408

BRONZE M.M.,4T3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BRONZE M.M.,4T3

main89341-33140-E8×2i200904-201408

BEIGE ME.,4T8; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BEIGE ME.,4T8

main89341-33140-G1×2i200811-200904

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.GREEN M.M.,6T8; DK.GREEN M.M.,6T8

main89341-33140-G6×2i200904-201008

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.GREEN MC.,6V4; DK.GREEN MC.,6V4

main89341-33140-J2×2i200811-201008

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.BLUE MC.,8S6; DK.BLUE MC.,8S6

9008017191

main90080-17191
