SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 1/2 0006 1INSTRUMENT PANEL 1/2 0007 1INSTRUMENT PANEL 2/2 0008 1STEERING 0009 1STEERING 0010 1SEAT 0011 1DOOR & ROOF & FLOOR 1/2 0012 1DOOR & ROOF & FLOOR 2/2

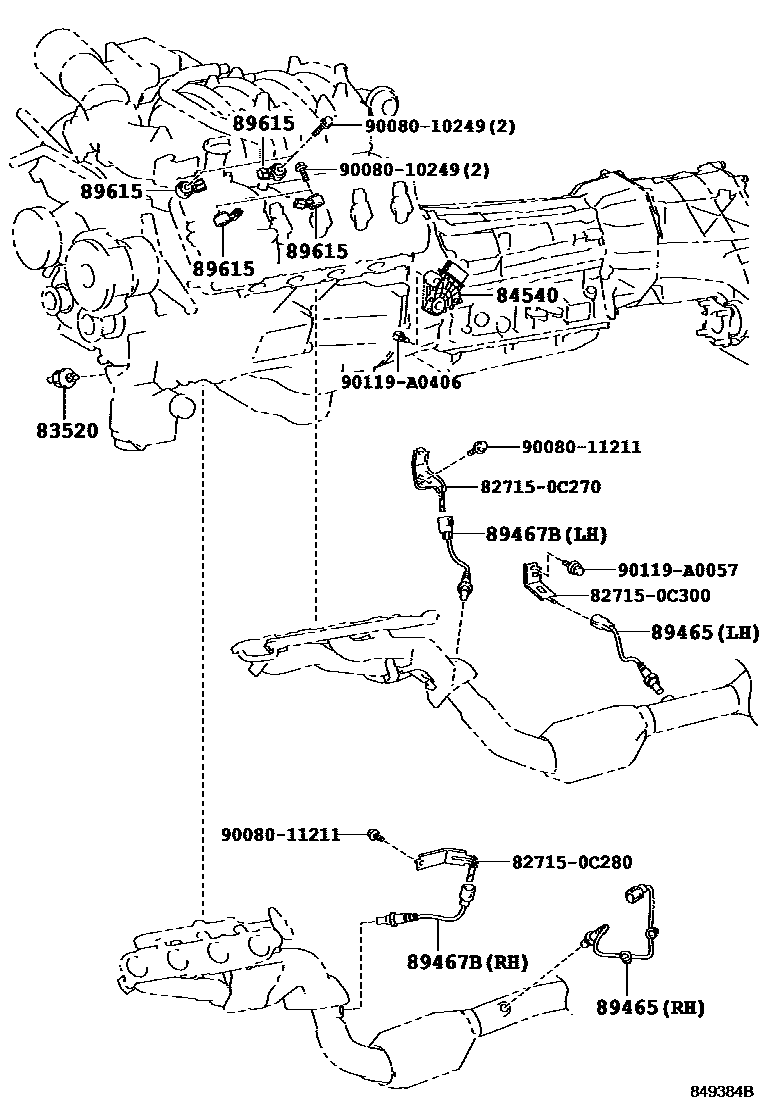

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60050iUSK6#200811-201507

sub83520-60051

main83520-60051iUSK6#201508-201609

84540SWITCH ASSY, NEUTRAL START

main84540-0C010iUSK6#200811-201609

89465SENSOR, OXYGEN

main89465-0C180iUSK6#200811-201308

LH

main89465-0C190iUSK6#200811-201308

RH

main89465-0C290iUSK6#201411-201609

LH

main89465-0C300iUSK6#201411-201609

RH

main89465-34160iUSK6#201308-201410

LH

main89465-34170iUSK6#201308-201410

RH

89467BSENSOR, AIR FUEL RATIO

main89467-04060iUSK60200811-200906

RH & LH

main89467-04060iUSK6#200906-201106

LH

main89467-04090iUSK6#201203-201308

LH

main89467-0C030iUSK6#200906-201106

RH

main89467-0C050iUSK6#201203-201308

RH

main89467-0C060iUSK6#201308-201609

LH

main89467-0C070iUSK6#201308-201609

RH

main89467-22030iUSK6#201106-201203

RH

main89467-34030iUSK6#201106-201203

LH

89615SENSOR, KNOCK CONTROL

main89615-06010iUSK6#201008-201609

(L)

main89615-20090iUSK6#200811-201008

main89615-20090iUSK6#201008-201609

(J)

827150C270BRACKET,WIRING HARNESS CLAMP

main82715-0C270

827150C280BRACKET,WIRING HARNESS CLAMP

main82715-0C280

827150C300BRACKET,WIRING HARNESS CLAMP

main82715-0C300

9008010249

main90080-10249

9008011211

main90080-11211

90119A0057

main90119-A0057

90119A0406

main90119-A0406

12 parts on this diagram · 12 diagrams in section
