WIRING & CLAMP

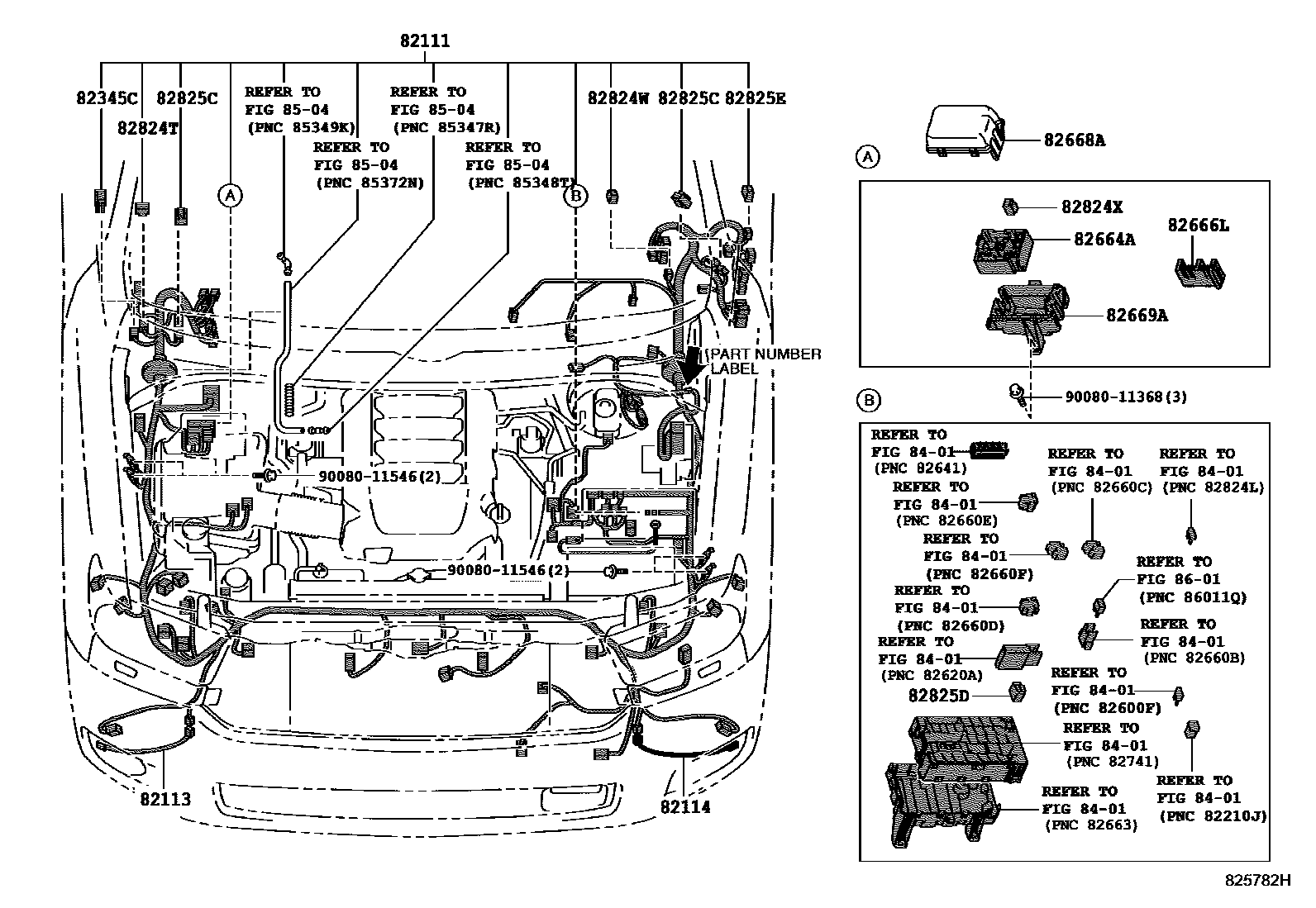

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82111-0CA10i200811-200911

main82111-0CA11i200911-201008

main82111-0CA12i201008-201107

main82111-0CA13i201107-201308

main82111-0CA14i201308-201609

main82111-0CA20i200811-200911

main82111-0CA21i200911-201008

main82111-0CA22i201008-201107

main82111-0CA23i201107-201308

main82111-0CA24i201308-201609

main82111-0CA90i200911-201008

main82111-0CA91i201008-201107

main82111-0CA92i201107-201308

main82111-0CA93i201308-201609

main82111-0CB00i200911-201008

main82111-0CB01i201008-201107

main82111-0CB02i201107-201308

main82111-0CB03i201308-201609

main82111-0CB50i201008-201107

main82111-0CB51i201107-201308

main82111-0CB52i201308-201609

82113WIRE, ENGINE ROOM, NO.3

main82113-0C010i200811-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

main82113-0C011i201408-201609

82114WIRE, ENGINE ROOM, NO.4

main82114-0C010i200811-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

main82114-0C011i201408-201609

82345DIODE

main82345-32010i200811-201609

82345CDIODE

main82345-32010i200811-201609

82664ABLOCK, CONNECTOR HOLDER

main82664-0C010i200811-201609

82666LHOLDER, CONNECTOR NO.9

main82666-0C300i201308-201609

82668ACOVER, CONNECTOR HOLDER BLOCK, UPPER

main82668-0C010i200811-201609

82669ACOVER, CONNECTOR HOLDER BLOCK, LOWER

main82669-0C020i200811-201609

82824CONNECTOR, WIRING HARNESS

main82824-30220i200811-201107

82824TCONNECTOR, WIRING HARNESS

main82824-22070i200811-201609

82824WCONNECTOR, WIRING HARNESS

main82824-22090i200811-201609

82824XCONNECTOR, WIRING HARNESS

main82824-28180i200811-201609

82825CCONNECTOR, WIRING HARNESS

main82824-44020i200811-201609

82825DCONNECTOR, WIRING HARNESS

main82824-50110i200811-201609

82825ECONNECTOR, WIRING HARNESS

main82824-52280i200811-201609

8401

8504

8601

9008011368

main90080-11368

9008011546

main90080-11546

21 parts on this diagram · 12 diagrams in section
