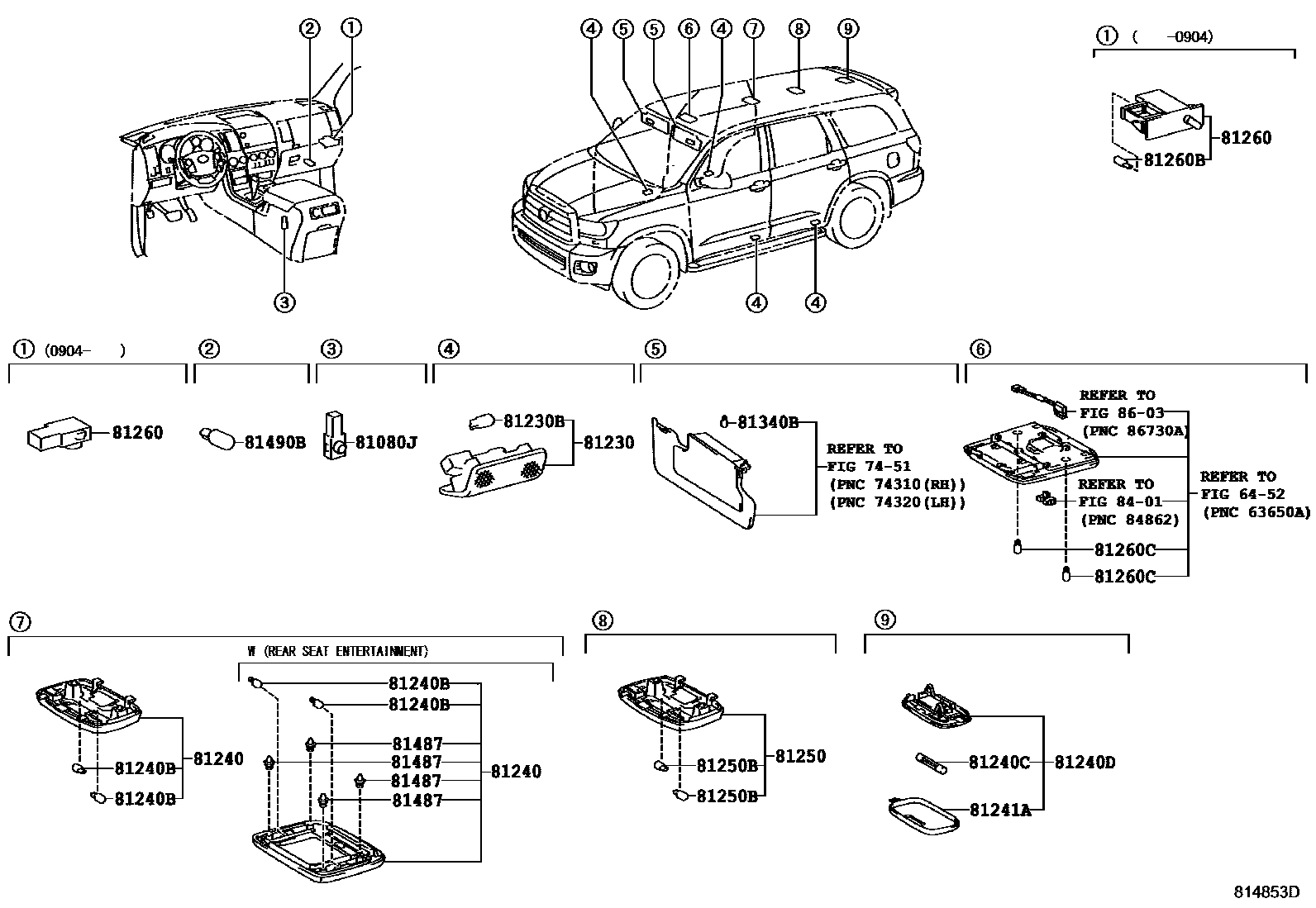

INTERIOR LAMP
6452ROOF HEADLINING & SILENCER PAD
7451ARMREST & VISOR
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 5W
81240LAMP ASSY, ROOM, NO.1
LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#
SAND BEIGE,TRIM4#
REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,LT.GRAY,TRIM1#; REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,LT.GRAY,TRIM1#,2#
REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,SAND BEIGE,TRIM4#
REAR AUDIO-REAR SEAT ENTERTAINMENT & BLU-RAY PLAYER,LT.GRAY,TRIM1#; REAR AUDIO-REAR SEAT ENTERTAINMENT & BLU-RAY PLAYER,LT.GRAY,TRIM1#,2#
REAR AUDIO-REAR SEAT ENTERTAINMENT & BLU-RAY PLAYER,SAND BEIGE,TRIM4#
81240BBULB, ROOM LAMP, NO.1
12V 5W
81240CBULB
81240DLAMP ASSY, ROOM, NO.2
LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#
SAND BEIGE,TRIM4#
81241ALENS, ROOM LAMP, NO.2
81250LAMP ASSY, ROOM, NO.2
LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#
SAND BEIGE,TRIM4#
81250BBULB, ROOM LAMP, NO.2
12V 5W
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81260CBULB(FOR MAP LAMP)
12V 5W
81340BBULB (FOR VANITY LAMP)
12V 5W
81487RETAINER, ROOM LAMP
REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER
81490BBULB (FOR FOOT LAMP)
14V 1.4W
8401SWITCH & RELAY & COMPUTER
8603NAVIGATION & FRONT MONITOR DISPLAY
20 parts on this diagram · 2 diagrams in section
