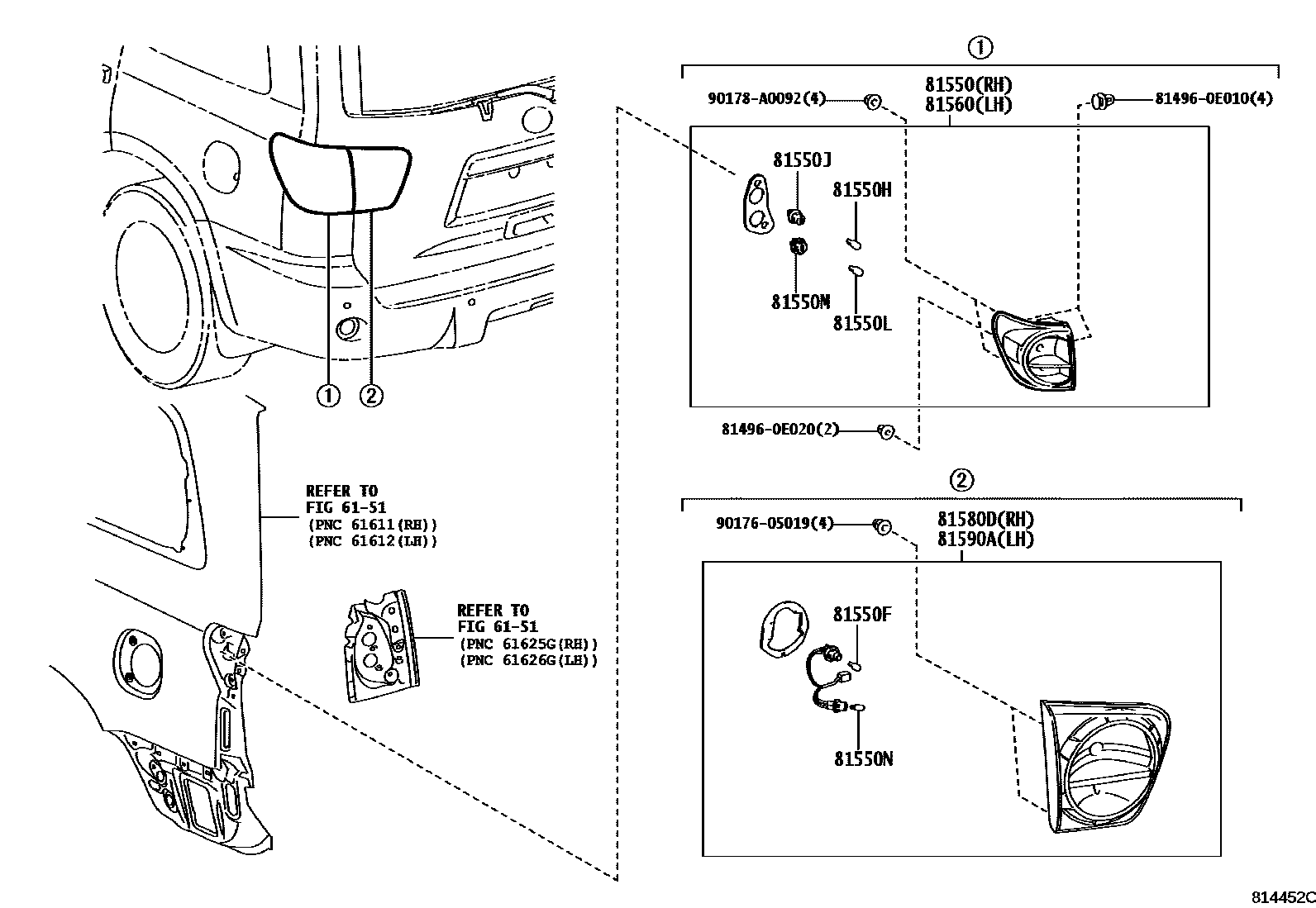

REAR COMBINATION LAMP

6151SIDE MEMBER

→ Go to FIG 61-51

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0C080iUSK6#200811-201609

81550FBULB, TAILLAMP

main99132-11038iUSK6#200811-201609

81550HBULB, TAIL & STOP LAMP

main90981-13044iUSK6#200811-201609

81550JSOCKET, TAIL & STOP LAMP

main90075-60002iUSK6#200811-201609

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iUSK6#200811-201609

81550MSOCKET, REAR TURN SIGNAL LAMP

main90075-60026iUSK6#200811-201609

81550NBULB, BACK UP LAMP

main90981-11059iUSK6#200811-201609

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0C080iUSK6#200811-201609

81580DLAMP ASSY, REAR, RH

main81580-0C030iUSK6#200811-201609

81590ALAMP ASSY, REAR, LH

main81590-0C030iUSK6#200811-201609

814960E010GUIDE, REAR COMBINATION LAMP

main81496-0E010

814960E020GUIDE, REAR COMBINATION LAMP

main81496-0E020

9017605019

main90176-05019

90178A0092

main90178-A0092

15 parts on this diagram · 1 diagram in section
