BATTERY CARRIER

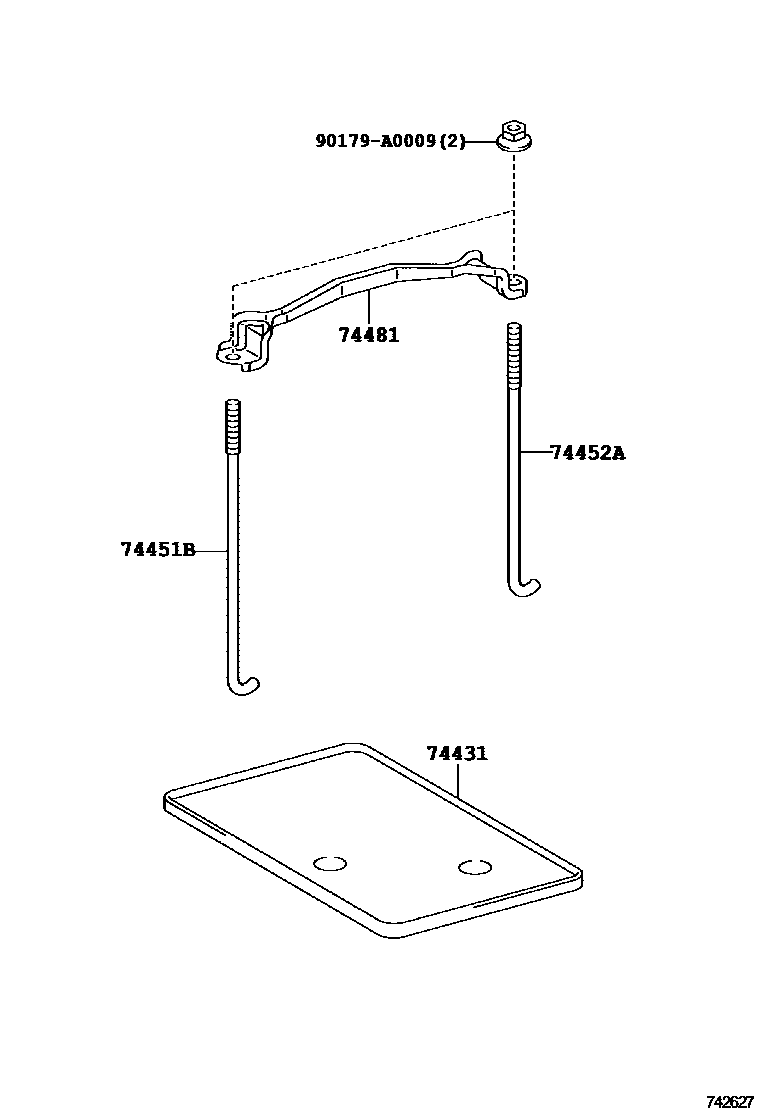

Parts diagram

74431TRAY, BATTERY

main74431-0C020i200811-201609

74451BBOLT, BATTERY CLAMP

main74451-0C030i200811-201609

74452ABOLT, BATTERY CLAMP, NO.2

main74451-0C020i200811-201609

74481CLAMP, BATTERY HOLD DOWN

main74481-0C030i200811-201609

90179A0009

main90179-A0009

5 parts on this diagram · 1 diagram in section
