EPC Data

SEAT & SEAT TRACK

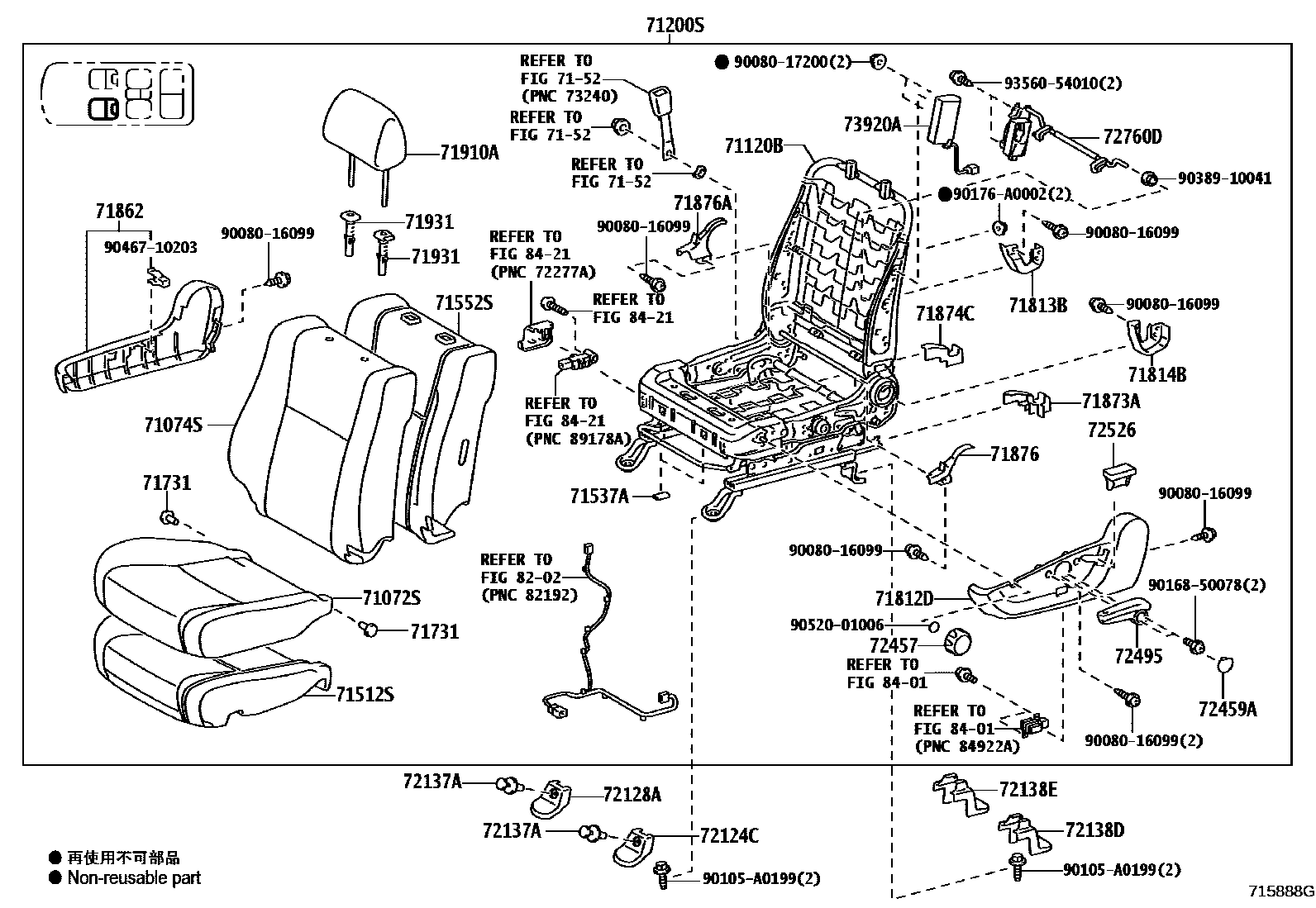

Parts diagram
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-0C370-B1i200811-200908
GRAY,TRIM1#
main71072-0C370-B2i200908-201008
GRAY,TRIM1#
main71072-0C370-E2i200811-200908
SAND BEIGE,TRIM4#
main71072-0C370-E3i200811-200908
RED ROCK,TRIM2#
main71072-0C370-E4i200908-201008
SAND BEIGE,TRIM4#
main71072-0C370-E5i200908-201008
RED ROCK,TRIM2#
main71072-0C372-B2i201008-201208
GRAY,TRIM1#
main71072-0C372-B3i201208-201609
GRAY,TRIM1#
main71072-0C372-E4i201008-201208
SAND BEIGE,TRIM4#
main71072-0C372-E5i201008-201208
RED ROCK,TRIM2#
main71072-0C372-E6i201208-201609
SAND BEIGE,TRIM4#
main71072-0C372-E7i201208-201609
RED ROCK,TRIM2#
main71072-0C420-B0i200904-200911
GRAY,TRIM1#
main71072-0C420-B1i200911-201008
GRAY,TRIM1#
main71072-0C420-E0i200904-200911
GRAY,TRIM4#
main71072-0C420-E1i200911-201008
SAND BEIGE,TRIM4#
main71072-0C421-B1i201008-201208
GRAY,TRIM1#
main71072-0C421-B2i201208-201609
GRAY,TRIM1#
main71072-0C421-E1i201008-201208
SAND BEIGE,TRIM4#
main71072-0C421-E2i201208-201609
SAND BEIGE,TRIM4#
main71072-0C270-B2i200811-200904
POWER MEMORY PACKAGE,GRAY,TRIM1#
sub71072-0C430
main71072-0C270-E3i200811-200904
POWER MEMORY PACKAGE,SAND BEIGE,TRIM4#
sub71072-0C430
main71072-0C380-B1supersedes 71072-0C360-B1i200811-201008
D-POWER SEAT PACKAGE,GRAY,TRIM1#
main71072-0C380-B2supersedes 71072-0C360-B2i201008-201310
D-POWER SEAT PACKAGE,GRAY,TRIM1#
main71072-0C380-E1supersedes 71072-0C360-E1i200811-201008
D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
main71072-0C380-E2supersedes 71072-0C360-E2i201008-201310
D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
main71072-0C381-B2supersedes 71072-0C361-B2i201311-201609
D-POWER SEAT PACKAGE,GRAY,TRIM1#
sub71072-0C382
main71072-0C381-E2supersedes 71072-0C361-E2i201311-201609
D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
sub71072-0C382
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-0C590-B1i200811-200904
GRAY,TRIM1#
main71074-0C590-E2i200811-200904
SAND BEIGE,TRIM4#
main71074-0C590-E3i200811-200904
RED ROCK,TRIM2#
main71074-0C740-B0i200904-200910
GRAY,TRIM1#
main71074-0C740-E0i200904-200910
SAND BEIGE,TRIM4#
main71074-0C741-B0i200911-201008
GRAY,TRIM1#
main71074-0C741-E0i200911-201008
SAND BEIGE,TRIM4#
main71074-0C742-B1i201008-201306
GRAY,TRIM1#
main71074-0C742-E1i201008-201306
SAND BEIGE,TRIM4#
main71074-0C743-B1i201307-201408
GRAY,TRIM1#
main71074-0C743-E1i201307-201408
SAND BEIGE,TRIM4#
main71074-0C750-B0i200904-201008
GRAY,TRIM1#
main71074-0C750-E0i200904-201008
SAND BEIGE,TRIM4#
main71074-0C750-E1i200904-201008
RED ROCK,TRIM2#
main71074-0C752-B1i201008-201306
GRAY,TRIM1#
main71074-0C752-E2i201008-201306
SAND BEIGE,TRIM4#
main71074-0C752-E3i201008-201306
RED ROCK,TRIM2#
main71074-0C753-B1i201307-201408
GRAY,TRIM1#
main71074-0C753-E2i201307-201408
SAND BEIGE,TRIM4#
main71074-0C753-E3i201307-201408
RED ROCK,TRIM2#
main71074-0C840-B0i201408-201609
GRAY,TRIM1#
main71074-0C840-E0i201408-201609
SAND BEIGE,TRIM4#
main71074-0C850-B0i201408-201609
GRAY,TRIM1#
main71074-0C850-E0i201408-201609
SAND BEIGE,TRIM4#
main71074-0C850-E1i201408-201609
RED ROCK,TRIM2#
main71074-0C410-B2i200811-200904
POWER MEMORY PACKAGE,GRAY,TRIM1#
main71074-0C410-E3i200811-200904
POWER MEMORY PACKAGE,SAND BEIGE,TRIM4#
main71074-0C620-B0supersedes 71074-0C580-B2i200811-200904
D-POWER SEAT PACKAGE,GRAY,TRIM1#
main71074-0C620-E0supersedes 71074-0C580-E2i200811-200904
D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
main71074-0C760-B0supersedes 71074-0C730-B0i200904-201008
D-POWER SEAT PACKAGE,GRAY,TRIM1#
main71074-0C760-B1supersedes 71074-0C730-B1i201008-201212
D-POWER SEAT PACKAGE,GRAY,TRIM1#
main71074-0C760-E0supersedes 71074-0C730-E0i200904-201008
D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
main71074-0C760-E1supersedes 71074-0C730-E1i201008-201212
D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
main71074-0C762-B1supersedes 71074-0C732-B1i201301-201310
D-POWER SEAT PACKAGE,GRAY,TRIM1#
main71074-0C762-E1supersedes 71074-0C732-E1i201301-201310
D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
main71074-0C763-B1supersedes 71074-0C733-B1i201311-201408
D-POWER SEAT PACKAGE,GRAY,TRIM1#
main71074-0C763-E1supersedes 71074-0C733-E1i201311-201408
D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
main71074-0C860-B0supersedes 71074-0C830-B0i201408-201609
D-POWER SEAT PACKAGE,GRAY,TRIM1#
sub71074-0C861
main71074-0C860-E0supersedes 71074-0C830-E0i201408-201609
D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
sub71074-0C861
71120BFRAME ASSY, FRONT SEAT W/ADJUSTER, LH
main71120-0C290i200811-200904
main71120-0C292i200904-201306
main71120-0C293i201307-201609
main71120-0C312i200904-201306
main71120-0C313i201307-201609
main71120-0C310i200811-200904
POWER MEMORY PACKAGE
main71120-0C320supersedes 71120-0C300i200811-200904
D-POWER SEAT PACKAGE
main71120-0C322supersedes 71120-0C303i200904-201306
D-POWER SEAT PACKAGE
main71120-0C323supersedes 71120-0C303i201307-201609
D-POWER SEAT PACKAGE
71200SSEAT ASSY, FRONT LH
main71200-0CC51-B1i200911-201008
GRAY,TRIM1#
main71200-0CC51-C1i200911-201008
SAND BEIGE,TRIM2#
main71200-0CC51-E1i200911-201008
RED ROCK,TRIM4#
main71200-0CB90-B0i200811-200904
D-POWER SEAT PACKAGE,GRAY,TRIM1#
main71200-0CB90-E0i200811-200904
D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
main71200-0CC41-B1supersedes 71200-0CC61-B1i200911-201008
POWER MEMORY PACKAGE,GRAY,TRIM1#
main71200-0CC41-E1supersedes 71200-0CC61-E1i200911-201008
POWER MEMORY PACKAGE,SAND BEIGE,TRIM4#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-0C080i200904-201008
main71512-0C081i201008-201609
main71512-0C120i200811-201008
main71512-0C130i201008-201609
main71512-0C100supersedes 71512-0C060i200811-201609
D-POWER SEAT PACKAGE
7152
71537APROTECTOR, FRONT SEAT CUSHION
main71537-AA020×2supersedes 71537-AA020i200811-201102
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-0C160i200811-201408
main71552-0C170i200904-201008
main71552-0C180i200811-201008
main71552-0C250i201008-201408
main71552-0C270i201408-201609
main71552-0C280i201408-201609
71731FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT)
main71731-0C010×4i200904-201609
71812DSHIELD, FRONT SEAT CUSHION, LH
main71806-0C060-B0i200811-200904
GRAY,TRIM1#
main71806-0C060-C0i200811-200904
BLACK,TRIM2#
main71806-0C060-E0i200811-200904
SAND BEIGE,TRIM4#
main71812-0C110-B0i200811-201609
GRAY,TRIM1#
main71812-0C110-E0i200811-201609
SAND BEIGE,TRIM4#
main71806-0C070-B0i200904-201609
D-POWER SEAT PACKAGE,GRAY,TRIM1#
main71806-0C070-E0i200904-201609
D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
71813BSHIELD, FRONT SEATBACK, RH
main71813-0E020supersedes 71813-0E020i200811-201609
D-POWER SEAT PACKAGE
main71875-AA060i200811-201408
71814BSHIELD, FRONT SEATBACK, LH
main71814-0E020supersedes 71814-0E020i200811-201609
D-POWER SEAT PACKAGE
main71876-AA060i200811-201408
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-0E020-B2supersedes 71862-0C080-B0i201107-201609
D-POWER SEAT PACKAGE,GRAY,TRIM1#
main71862-0E020-C0i201107-201609
BLACK,TRIM2#
main71862-0E020-E0supersedes 71862-0C080-E0i201107-201609
SAND BEIGE,TRIM4#
main71862-AA080-B3i200904-201106
D-POWER SEAT PACKAGE,GRAY,TRIM1#
main71862-AA080-C0i200904-201106
BLACK,TRIM2#
main71862-AA080-E1i200904-201106
SAND BEIGE,TRIM4#
71873ASHIELD, FRONT SEAT CUSHION, LOWER
71874CSHIELD, FRONT SEAT CUSHION, LOWER
main71874-06070×2supersedes 71874-06070i200811-201609
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71875-0E020-B5i200811-200904
D-POWER SEAT PACKAGE,GRAY,TRIM1#
main71875-0E020-C0i200904-201609
BLACK,TRIM2#
main71875-0E020-E2i200904-201609
SAND BEIGE,TRIM4#
main71876-AD020-B0×2i201408-201609
GRAY,TRIM1#
main71876-AD020-E1×2i201408-201609
SAND BEIGE,TRIM4#
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71875-AD020-B0i200811-201408
GRAY,TRIM1#
main71875-AD020-E1i200811-201408
SAND BEIGE,TRIM4#
main71876-AA090-B5i200904-201609
D-POWER SEAT PACKAGE,GRAY,TRIM1#
main71876-AA090-C0i200904-201609
BLACK,TRIM2#
main71876-AA090-E2i200904-201609
SAND BEIGE,TRIM4#
71910AHEADREST ASSY, FRONT SEAT
main71910-0C210-B1×2i200811-200911
GRAY,TRIM1#
main71910-0C210-E2×2i200811-200911
SAND BEIGE,TRIM4#
main71910-0C210-E3×2i200811-200911
REDROCK,TRIM2#
main71910-0C250-B1×2i200911-201008
GRAY,TRIM1#
main71910-0C250-B2×2i201008-201609
GRAY,TRIM1#
main71910-0C250-E2×2i200911-201008
REDROCK,TRIM2#
main71910-0C250-E3×2i200911-201008
SAND BEIGE,TRIM4#
main71910-0C250-E4×2i201008-201609
REDROCK,TRIM2#
main71910-0C250-E5×2i201008-201609
SAND BEIGE,TRIM4#
main71910-0C330-B0×2i200811-201310
GRAY,TRIM1#
main71910-0C330-E0×2i200811-201310
SAND BEIGE,TRIM4#
main71910-0C331-B0×2i201311-201609
GRAY,TRIM1#
main71910-0C331-E0×2i201311-201609
SAND BEIGE,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
main71930-42020-B8×2i200904-201008
W(LOCK)&W(BUTTON),GRAY,TRIM1#
sub71930-44020
main71930-42020-C0×2i200811-201008
W(LOCK)&W(BUTTON),BLACK,TRIM2#
sub71930-44020
main71930-42020-E3×2i200904-201008
W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4#
sub71930-44020
main71930-52030-B4×2i201008-201609
W(LOCK)&W(BUTTON),GRAY,TRIM1#
main71930-52030-C0×2i201008-201609
W(LOCK)&W(BUTTON),BLACK,TRIM2#
main71930-52030-E4×2i201008-201609
W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4#
main71931-42020-B8×2supersedes 71931-42020-B8i200811-201609
W(LOCK)&W/O(BUTTON),GRAY,TRIM1#
main71931-42020-C0×2i200811-201609
W(LOCK)&W/O(BUTTON),BLACK,TRIM2#
main71931-42020-E3×2supersedes 71931-42020-E3i200811-201609
W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4#
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72124-0C010-B0i200811-200812
GRAY,TRIM1#
main72124-0C010-C0i200811-201107
BLACK,TRIM13,2#,44
main72124-0C010-E0i200811-201107
SAND BEIGE,TRIM44
72124CCOVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72124-0C030-B0supersedes 72124-0C040-B0i200811-200904
D-POWER SEAT PACKAGE,GRAY,TRIM1#
main72124-0C030-C0i200811-200904
BLACK
main72124-0C030-E0supersedes 72124-0C040-E0i200811-200904
SAND BEIGE,TRIM4#
main72124-0C060-B0supersedes 72124-0C050-B0i200904-201107
D-POWER SEAT PACKAGE,GRAY,TRIM1#
main72124-0C060-C0supersedes 72124-0C050-C0i201107-201609
BLACK,TRIM1#,2#,4#
main72124-0C060-E0supersedes 72124-0C050-E0i200904-201107
D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
main72128-0C030-B0i200811-200904
GRAY,TRIM1#
main72128-0C030-C0i200811-200904
BLACK,TRIM2#
main72128-0C030-E0i200811-200904
SAND BEIGE,TRIM4#
main72128-0C040-B0i200811-200904
GRAY,TRIM1#
main72128-0C040-E0i200811-200904
SAND BEIGE,TRIM4#
main72128-0C060-B0supersedes 72128-0C050-B0i200904-201107
D-POWER SEAT PACKAGE,GRAY,TRIM1#
main72128-0C060-C0supersedes 72128-0C050-C0i201107-201609
BLACK,TRIM1#,2#,4#
main72128-0C060-E0supersedes 72128-0C050-E0i200904-201107
D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
72137ACLIP (FOR SEAT TRACK COVER)
main90467-07138-B9×4i200811-200904
GRAY,TRIM1#
main90467-07138-C0×4i200811-200904
BLACK,TRIM2#
main90467-07138-E2×4i200811-200904
SAND BEIGE,TRIM4#
72138DCOVER, SEAT TRACK, OUTER, LH
main72138-0C030-B0supersedes 72138-0C010-B0i200811-200904
GRAY,TRIM1#
main72138-0C030-C0supersedes 72138-0C010-C0i200904-201107
BLACK,TRIM13,2#,44
main72138-0C030-E0supersedes 72138-0C010-E0i200904-201107
D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
72138ECOVER, SEAT TRACK, INNER LH
main72138-0C040-B0supersedes 72137-0C410-B0i200904-201107
D-POWER SEAT PACKAGE,GRAY,TRIM1#
main72138-0C040-C0supersedes 72137-0C410-C0i201107-201609
BLACK,TRIM1#,2#,4#
main72138-0C040-E0supersedes 72137-0C410-E0i200904-201107
SAND BEIGE,TRIM44
72457KNOB, VERTICAL SEAT ADJUSTER
main72457-0E010-B1i200912-201609
GRAY,TRIM1#
main72457-0E010-E0i200912-201609
SAND BEIGE,TRIM4#
main72457-58010-B5i200811-200911
GRAY,TRIM1#
main72457-58010-E3i200811-200911
SAND BEIGE,TRIM4#
72459ACAP, VERTICAL SEAT ADJUSTER KNOB
main72459-06010-B1i200811-201609
GRAY,TRIM1#
main72459-06010-E1i200811-201609
SAND BEIGE,TRIM4#
72495HANDLE, VERTICAL ADJUSTING, LH
main72494-06010-B1i200811-201609
GRAY,TRIM1#
main72494-06010-E1i200811-201609
SAND BEIGE,TRIM4#
72526HANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-06020-B1i200811-201609
GRAY,TRIM1#
main72526-06020-E1i200811-201609
SAND BEIGE,TRIM4#
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-0E010i200811-201609
main72760-AC040i200904-201609
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-0C040supersedes 73920-0C040i200811-201408
main73920-0C060i200811-201110
main73920-0C061i201111-201408
main73920-0C070i201408-201609
main73920-0C090i201408-201609
8202
8401
8421
9008016099
main90080-16099
9008017200
main90080-17200
90105A0199
main90105-A0199
9016850078
main90168-50078
90176A0002
main90176-A0002
9038910041
main90389-10041
9046710203
main90467-10203
9052001006
main90520-01006
9356054010
main93560-54010

43 parts on this diagram · 14 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
