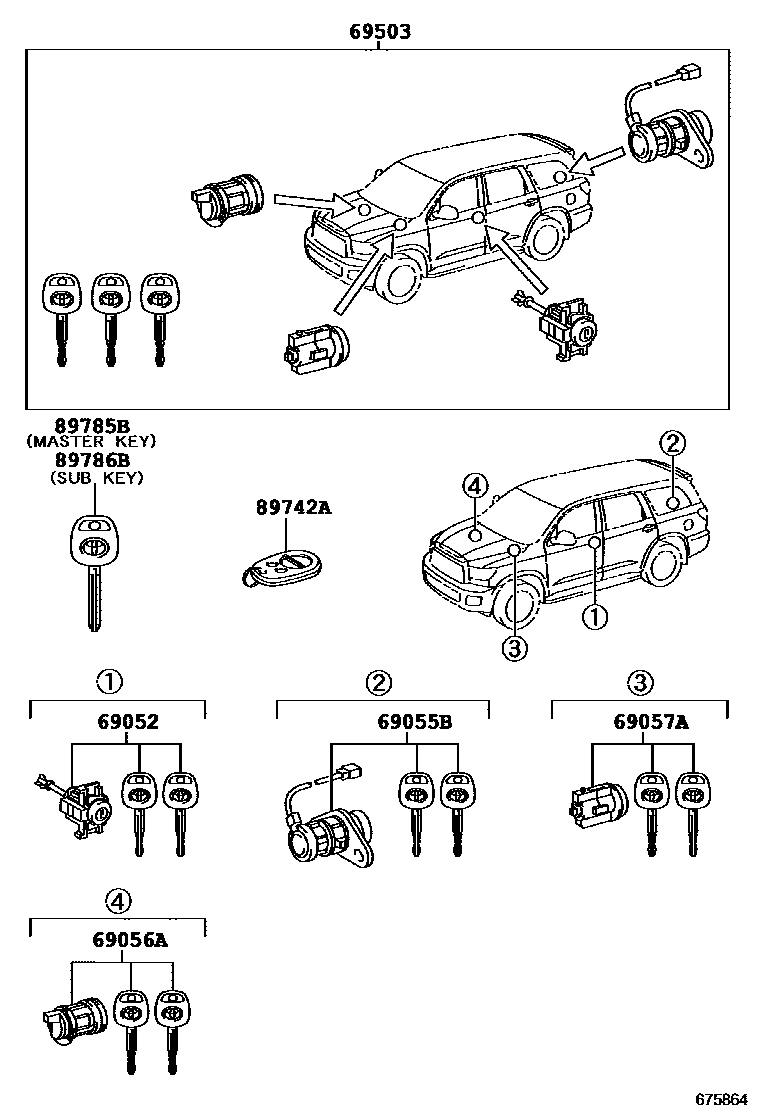

LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-0C010iUSK6#200811-201609

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-0C020iUSK6#200811-201609

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-0C020iUSK6#200811-201609

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-02361iUSK6#201008-201408

main69057-02720iUSK6#201408-201609

main69057-04030iUSK6#200811-201008

69503CYLINDER SET, LOCK

main69005-0C120iUSK6#200811-201008

main69005-0C130iUSK6#201008-201408

main69005-0C140iUSK6#201408-201609

89742ATRANSMITTER, DOOR CONTROL

main89742-0C050×2iUSK6#..LIMD; USK6#..PLAT200811-201609

POWER BACK DOOR-WITH

main89742-0C060×2iUSK6#..LIMD,SR5200811-201609

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-08020iUSK6#200811-201008

main89785-08040iUSK6#201008-201408

main89785-0D170iUSK6#201408-201609

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-08020iUSK6#200811-201008

BLANK KEY

main89786-08040iUSK6#201008-201408

BLANK KEY

main89786-0R020iUSK6#201408-201609

BLANK KEY

8 parts on this diagram · 1 diagram in section
