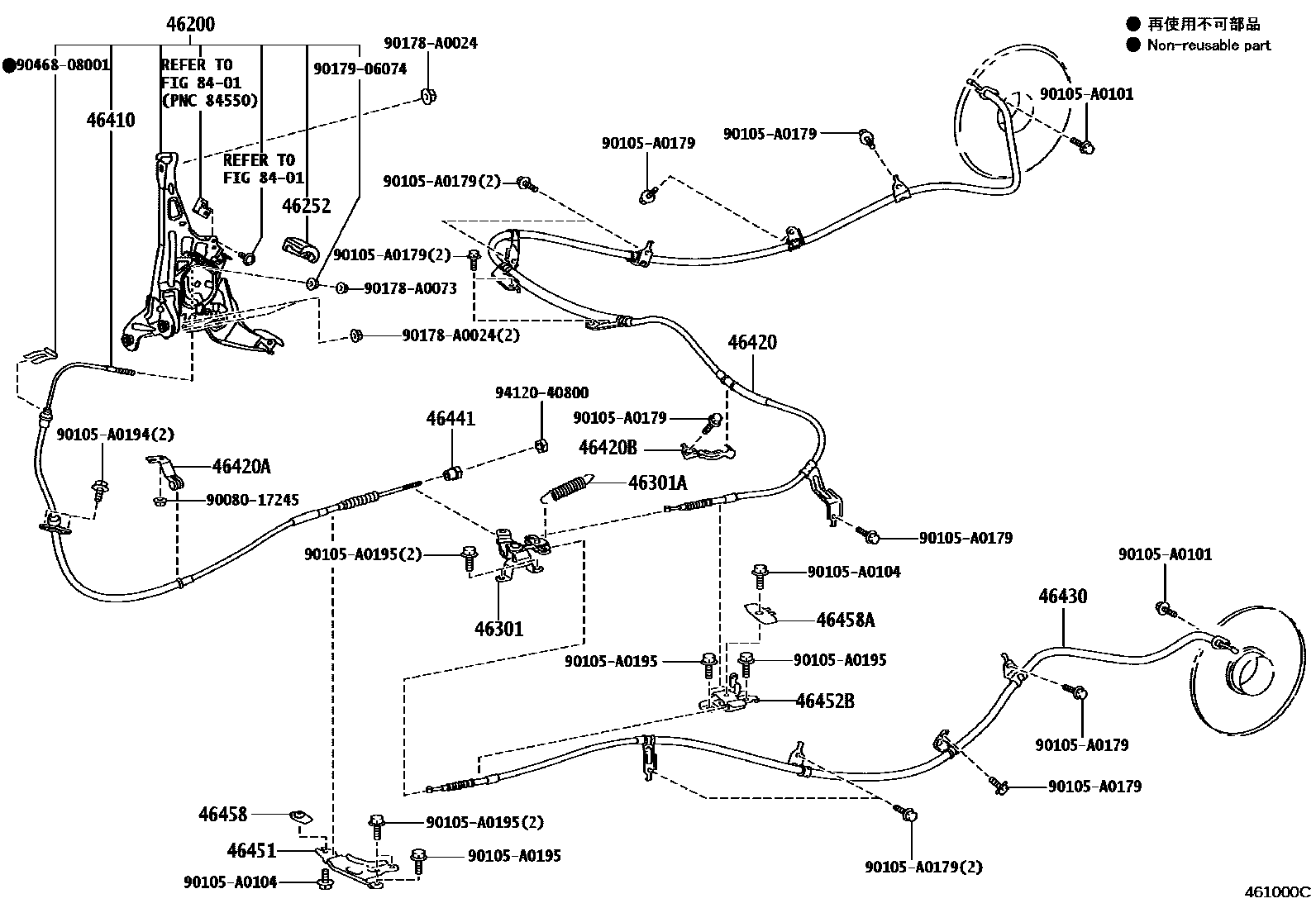

PARKING BRAKE & CABLE

0001 1 0002 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-0C010iUSK6#200811-201609

46252PAD, PARKING PEDAL

main46252-68010iUSK6#200811-201609

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46320-0C020iUSK6#200811-201508

main46320-0C021iUSK6#201509-201609

46301ASPRING, TENSION(FOR INTERMEDIATE LEVER)

main90506-20060iUSK6#200811-201609

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0C010iUSK6#200811-201609

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0C070iUSK60200811-200904

main46420-0C080iUSK6#200904-201609

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46411-0C030iUSK6#200811-201609

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46421-0C020iUSK6#200811-201609

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0C020iUSK60200811-200904

main46430-0C030iUSK6#200904-201609

46441NUT, WIRE ADJUSTING, NO.1

main46441-04010iUSK6#200811-201609

46451BRACKET, CABLE SUPPORT

main46451-0C020iUSK6#200811-201609

46452BBRACKET, CABLE SUPPORT, NO.2

main46452-0C020iUSK6#200811-201609

46458RETAINER, CABLE

main46458-0C010iUSK6#200811-201609

46458ARETAINER, CABLE

main46458-0C020iUSK6#200811-201609

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008017245

main90080-17245

90105A0101

main90105-A0101

90105A0104

main90105-A0104

90105A0179

main90105-A0179

90105A0194

main90105-A0194

90105A0195

main90105-A0195

90178A0024

main90178-A0024

90178A0073

main90178-A0073

9017906074

main90179-06074

9046808001

main90468-08001

9412040800

main94120-40800

26 parts on this diagram · 2 diagrams in section
