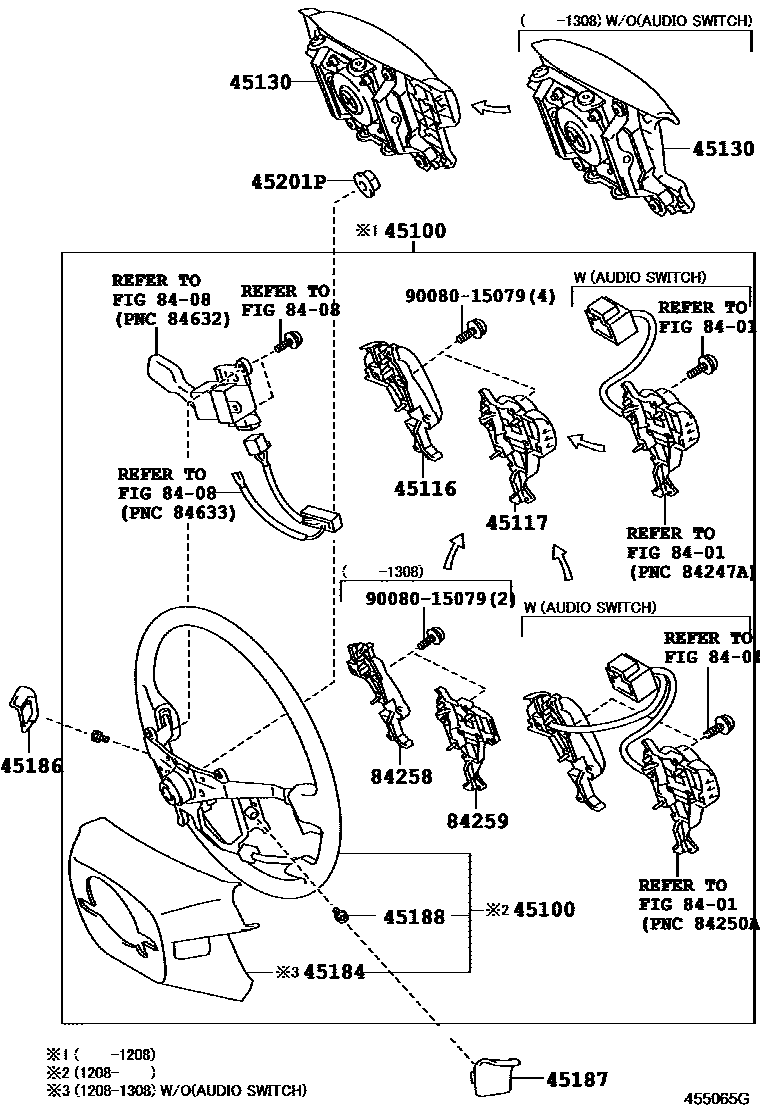

STEERING WHEEL
45100WHEEL ASSY, STEERING
4-SPOKE,URETHANE,BLACK,TRIM1#,4#
4-SPOKE,URETHANE,BLACK,TRIM1#,4#
4-SPOKE,LEATHER,BLACK,TRIM1#,4#
4-SPOKE,LEATHER,DK. BROWN,TRIM44
4-SPOKE,WOOD&LEATHER,BLACK,TRIM1#,2#
4-SPOKE,WOOD&LEATHER,DK. BROWN,TRIM4#
4-SPOKE,WOOD&LEATHER,BLACK,TRIM1#,2#,4#
4-SPOKE,LEATHER,AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL,BLACK,TRIM1#,4#; 4-SPOKE,LEATHER,BLACK,TRIM1#,4#
4-SPOKE,WOOD&LEATHER,BLACK,TRIM1#,2#,4#
4-SPOKE,LEATHER,BLACK,TRIM1#,4#
4-SPOKE,WOOD&LEATHER,BLACK,TRIM1#,2#,4#
4-SPOKE,WOOD&LEATHER,BLACK,TRIM1#,2#,4#
4-SPOKE,LEATHER,AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL,BLACK,TRIM1#,44
4-SPOKE,LEATHER,AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL,DK. BROWN,TRIM44
4-SPOKE,LEATHER,AUDIO-AVN 12SPEAKER,BLACK,TRIM1#,44
4-SPOKE,LEATHER,AUDIO-AVN 12SPEAKER,DK. BROWN,TRIM44
4-SPOKE,WOOD&LEATHER,AUDIO-AVN 12SPEAKER,BLACK,TRIM1#,2#,4#
4-SPOKE,WOOD&LEATHER,AUDIO-AVN 12SPEAKER,DK. BROWN,TRIM44
45116ORNAMENT, STEERING WHEEL, NO.1
BLACK,TRIM1#,4#
AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL,BLACK,TRIM1#,4#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL,BLACK,TRIM1#,44
AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL,DK. BROWN,TRIM44
45117ORNAMENT, STEERING WHEEL, NO.2
BLACK,TRIM1#,4#
45130BUTTON ASSY, HORN
AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL,BLACK,TRIM1#; BLACK,TRIM1#; BLACK,TRIM1#,2#
AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL,DK. BROWN,TRIM4#; DK. BROWN,TRIM4#
AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL,BLACK,TRIM1#,4#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL,DK. BROWN,TRIM44; DK. BROWN,TRIM44
BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
45184COVER, STEERING WHEEL BOSS, LOWER
BLACK,TRIM1#,4#
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
DK. BROWN,TRIM44
45187COVER, STEERING WHEEL, LOWER NO.3
BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
DK. BROWN,TRIM44
45188SCREW, STEERING WHEEL PAD ATTACHING
L=18.5
45201PNUT, STEERING WHEEL SET
8401SWITCH & RELAY & COMPUTER
8408CRUISE CONTROL (AUTO DRIVE)
84258COVER, STEERING PAD, RH
84259COVER, STEERING PAD, LH
9008015079
main90080-15079
14 parts on this diagram · 1 diagram in section
