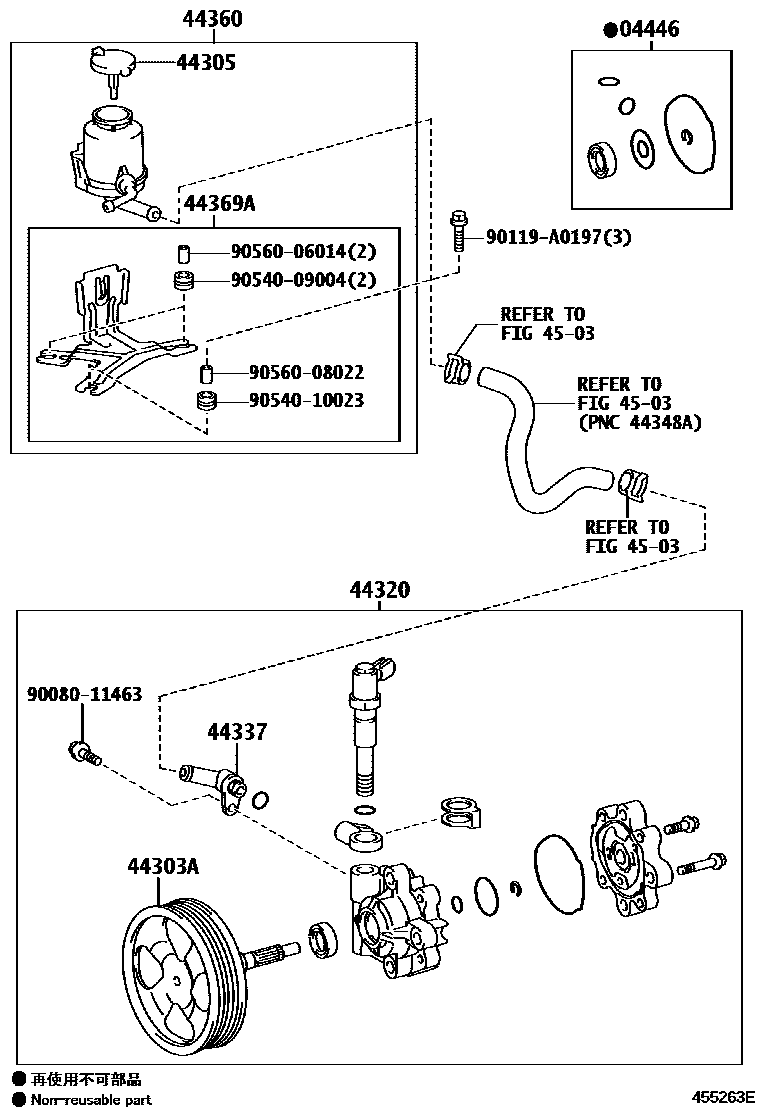

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-0C020iUSK6#200811-201609

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-0C070iUSK6#200811-201609

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-0C040iUSK6#200811-201609

44320PUMP ASSY, VANE

main44310-0C110iUSK6#200811-201609

44337UNION, POWER STEERING SUCTION PORT

main44337-0C050iUSK6#200811-201609

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-0C050iUSK6#200811-201609

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-0C060iUSK6#200811-201609

4503POWER STEERING TUBE

→ Go to FIG 45-03

9008011463

main90080-11463

90119A0197

main90119-A0197

9054009004

main90540-09004

9054010023

main90540-10023

9056006014

main90560-06014

9056008022

main90560-08022

14 parts on this diagram · 1 diagram in section
