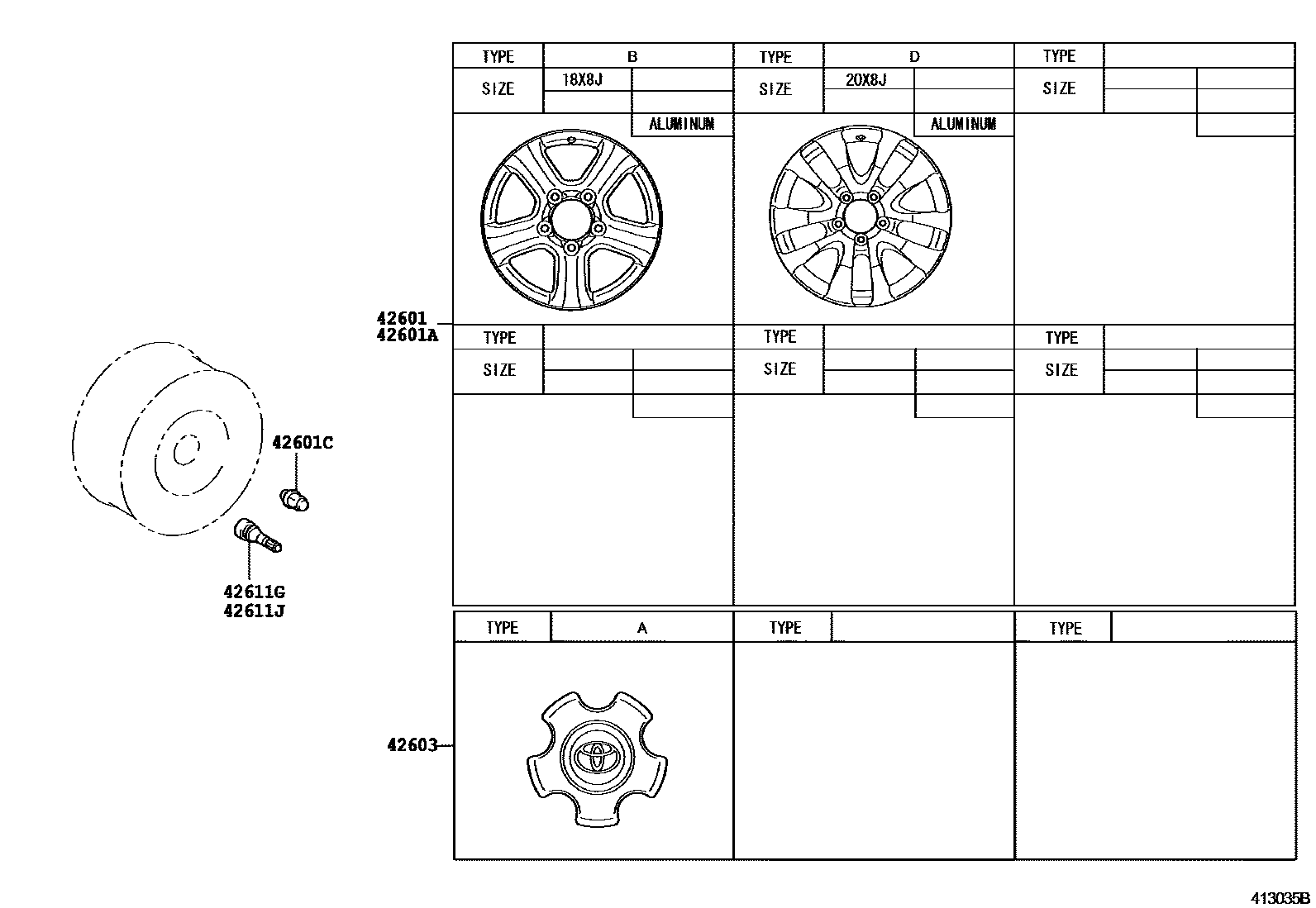

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-0C040×4i200811-201001

18X8J, #,TYPE B:REFER ILLUST.

main42611-0C090×4i200811-201609

20X8J, #,TYPE D:REFER ILLUST.

main42611-0C100×4i201001-201609

18X8J, #,TYPE B:REFER ILLUST.

main42611-0C120×4i200811-201609

20X8J, #,TIRE & DISC WHEEL-P275/55R20 8J ALUMINUM,TYPE D:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-0C040i200811-201001

18X8J, #,TYPE B:REFER ILLUST.

main42611-0C090i200811-201609

20X8J, #,TYPE D:REFER ILLUST.

main42611-0C100i201001-201609

18X8J, #,TYPE B:REFER ILLUST.

main42611-0C120i200811-201609

20X8J, #,TIRE & DISC WHEEL-P275/55R20 8J ALUMINUM,TYPE D:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01103×20i200811-201109

main90942-A1001×20i201109-201609

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-0C070×4i200811-201609

*ALU,TYPE A:REFER ILLUST.

main42603-0C100×4i200811-201609

*ALU,TYPE A:REFER ILLUST.

main42603-0C110×4i200811-201609

*ALU,TIRE & DISC WHEEL-P275/55R20 8J ALUMINUM,TYPE A:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90080-45006×4i200811-201609

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-45006i200811-201609

6 parts on this diagram · 1 diagram in section
