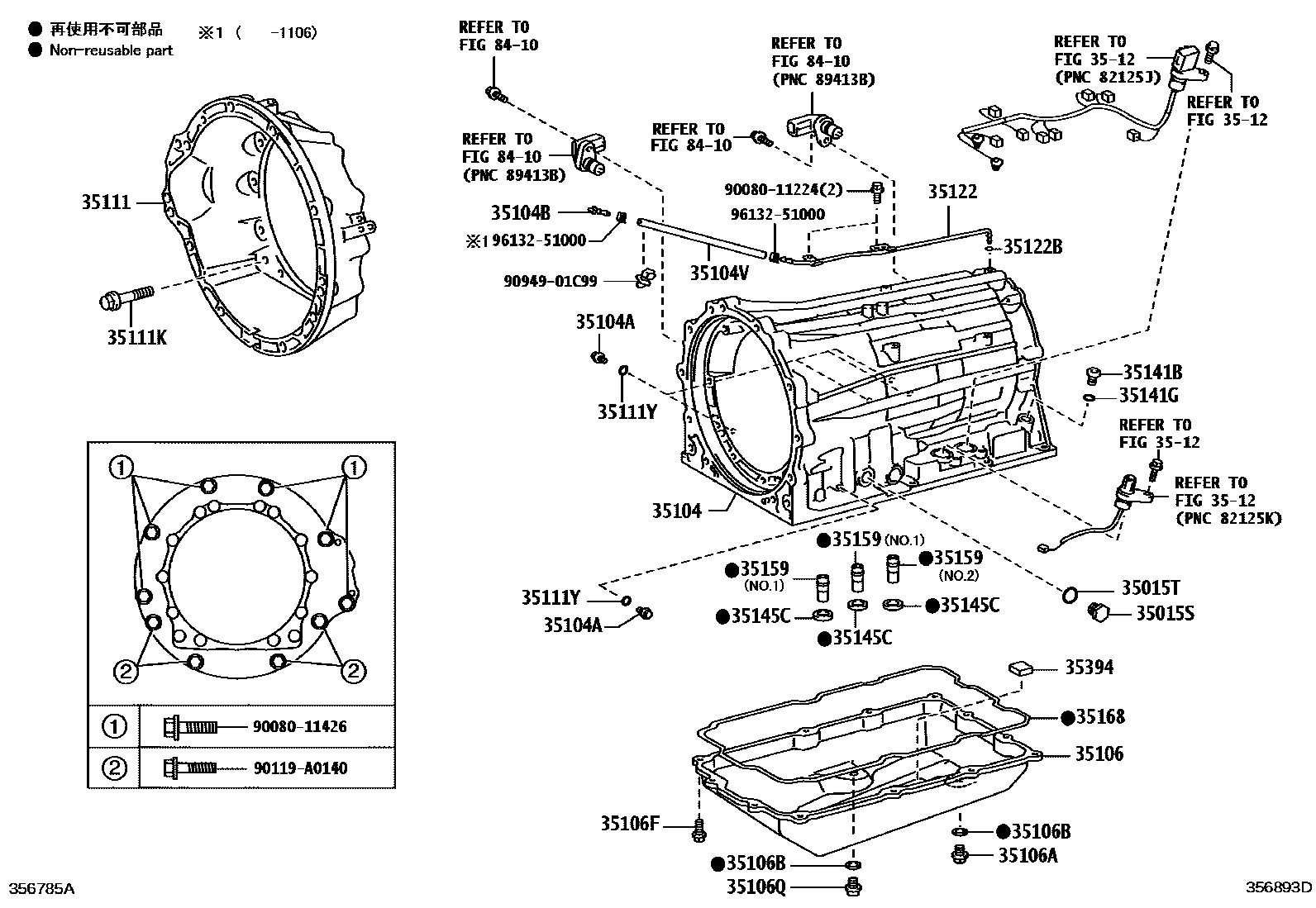

TRANSMISSION CASE & OIL PAN (ATM)

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iUSK6#200811-201609

35015TRING, O(FOR TRANSMISSION CASE ADAPTER)

main90301-15004iUSK6#200811-201609

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-0C030iUSK6#200811-201609

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-A0001×5iUSK6#200811-201609

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03188iUSK6#200811-201106

main90930-03211iUSK6#201106-201609

35104VHOSE (FOR BREATHER PLUG)

main90445-10020iUSK6#200811-201609

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-0C030iUSK6#200811-201609

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iUSK6#200811-201609

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010×2iUSK6#200811-201609

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06A02×12iUSK6#201402-201609

main90119-A0401×12iUSK6#201307-201402

main91611-B0625×12iUSK6#200811-201307

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90341-10021iUSK6#200811-201609

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-0C050iUSK6#200811-201609

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90119-A0272×14iUSK6#200811-201609

*10-1.5PX35-29.3

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×5iUSK6#200811-201609

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

main35122-34020iUSK6#200811-201609

35122BRING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)

main90301-04014iUSK6#200811-201609

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-14011iUSK6#200811-201609

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030iUSK6#200811-201609

35145CGASKET, TRANSAXLE CASE

main35145-60020×3iUSK6#200811-201609

35159GASKET, BRAKE DRUM

main35159-0C020iUSK6#200811-201609

NO.2

main35159-0C030×2iUSK6#200811-201609

NO.1

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-34010iUSK60200811-200905

main35168-34020iUSK6#200905-201609

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iUSK6#200811-201609

9008011224

main90080-11224

9008011426

main90080-11426

90119A0140

main90119-A0140

9094901C99

main90949-01C99

9613251000

main96132-51000

28 parts on this diagram · 1 diagram in section
