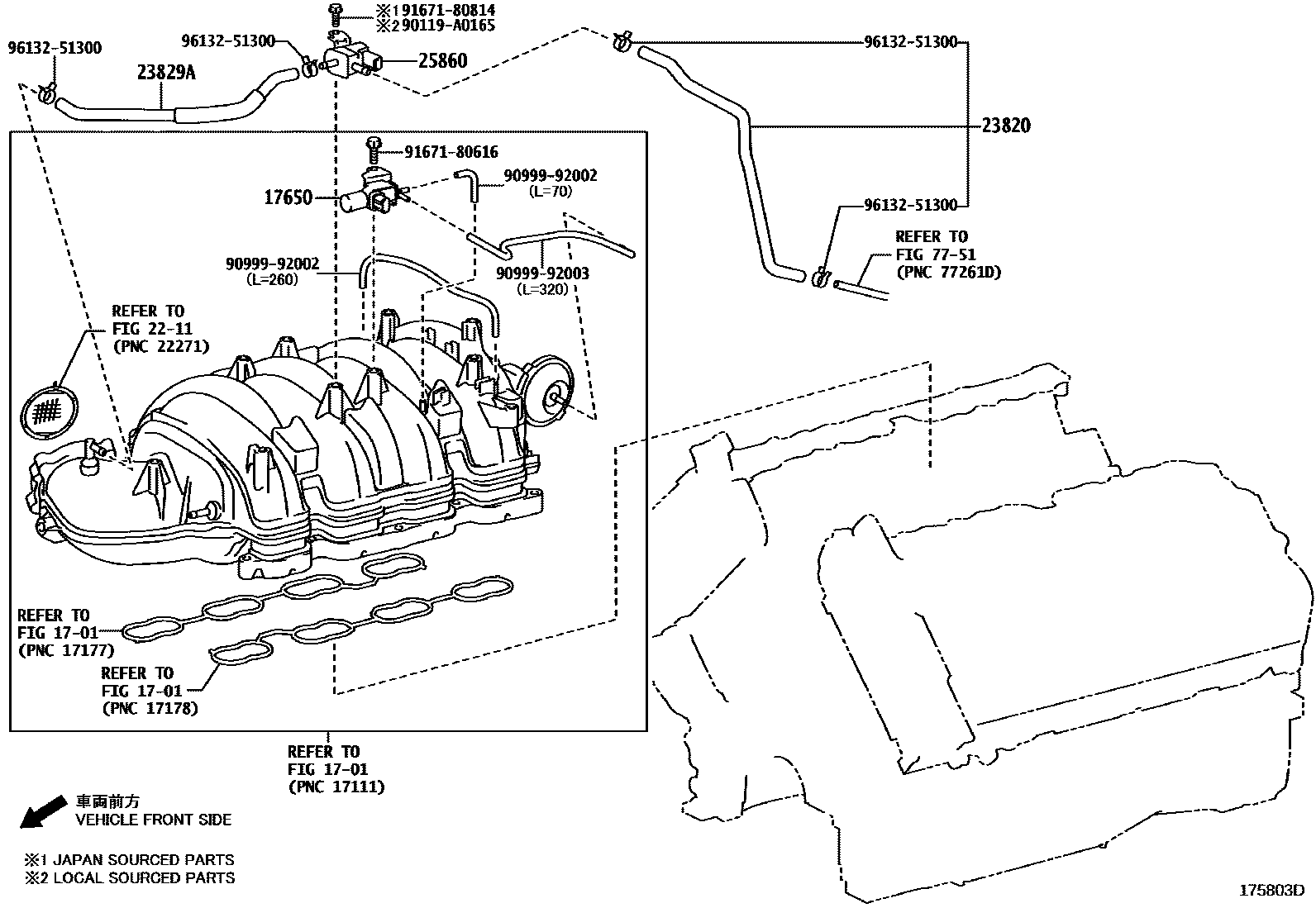

VACUUM PIPING

1701MANIFOLD

→ Go to FIG 17-01

17650VALVE ASSY, VACUUM SWITCHING

main25860-0S010i3URFE..USK6#200811-201609

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

23820HOSE ASSY, FUEL VAPOR FEED

main23820-0S010i3URFE..USK6#200811-201109

main23820-0S030i3URFE..USK6#201109-201609

23829AHOSE, FUEL VAPOR FEED

main23829-0S010i3URFE..USK6#201308-201609

(L)

main23829-38010i3URFE..USK6#200811-201308

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0S020i3URFE..USK6#200812-201609

(L)

main25860-31060i3URFE..USK60200811-200812

7751FUEL TANK & TUBE

→ Go to FIG 77-51

90119A0165

main90119-A0165

9099992002

main90999-92002

9099992003

main90999-92003

9167180616

main91671-80616

9167180814

main91671-80814

9613251300

main96132-51300

13 parts on this diagram · 1 diagram in section
