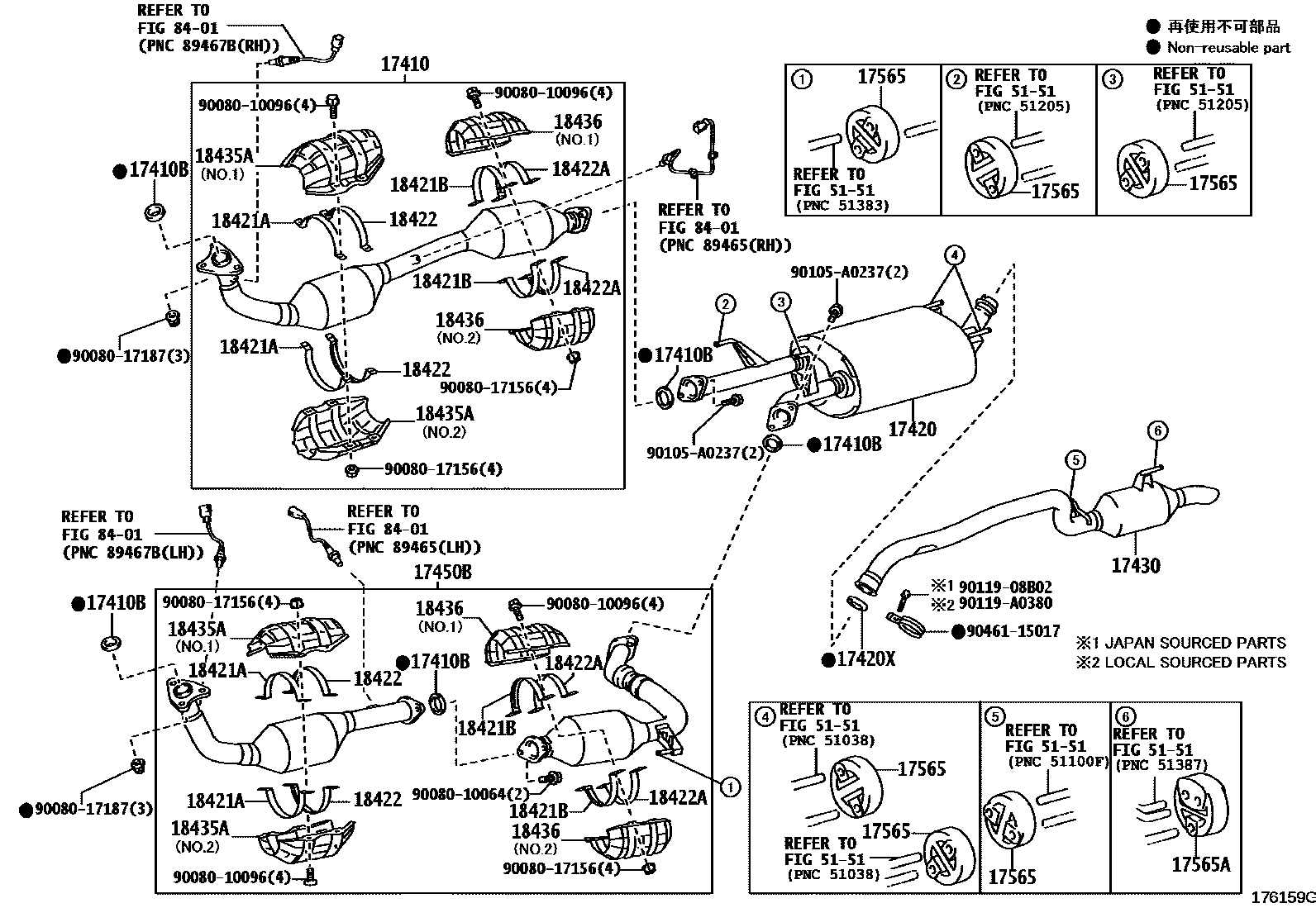

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-0S030i3URFE..USK60200811-200905

main17410-0S031i3URFE..USK60200906-200910

main17410-0S040i3URFE..USK6#200911-201107

main17410-0S080i3URFE..USK6#201107-201609

17410BGASKET, EXHAUST PIPE

main90917-A6002×5i3URFE..USK6#200811-201609

17420PIPE ASSY, EXHAUST, CENTER

main17420-0S050i3URFE..USK6#200811-201609

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06093i3URFE..USK6#200811-201609

17430PIPE ASSY, EXHAUST, TAIL

main17430-0S030i3URFE..USK6#200811-201008

main17430-0S031i3URFE..USK6#201009-201609

17450BPIPE ASSY, EXHAUST, FRONT NO.2

main17450-0S070i3URFE..USK60200811-200905

main17450-0S071i3URFE..USK60200906-200910

main17450-0S080i3URFE..USK6#200911-201107

main17450-0S150i3URFE..USK6#201107-201609

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0S010×6i3URFE..USK6#200811-201103

main17565-0S011×6i3URFE..USK6#201104-201609

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0S020i3URFE..USK6#200811-201103

main17565-0S021i3URFE..USK6#201104-201609

18421ASTAY, CONVERTER PROTECTOR, LH

main18421-0S020×4i3URFE..USK6#200811-201609

18421BSTAY, CONVERTER PROTECTOR, NO.2

main18421-0S010×4i3URFE..USK6#200811-201609

18422STAY, CONVERTER PROTECTOR, NO.2

main18422-0S010×4i3URFE..USK6#200811-201609

18422ASTAY, CONVERTER PROTECTOR, NO.3

main18421-0S010×4i3URFE..USK6#200811-201609

18435APROTECTOR, MONOLITHIC CONVERTER

main18435-0S010×2i3URFE..USK6#200811-201609

NO.1

main18445-0S010×2i3URFE..USK6#200811-201609

NO.2

18436PROTECTOR, MONOLITHIC CONVERTER, NO.1

main18435-0S020×2i3URFE..USK6#200811-201609

NO.1

main18445-0S020×2i3URFE..USK6#200811-201609

NO.2

5151FRAME

→ Go to FIG 51-51

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008010064

main90080-10064

9008010096

main90080-10096

9008017156

main90080-17156

9008017187

main90080-17187

90105A0237

main90105-A0237

9011908B02

main90119-08B02

90119A0380

main90119-A0380

9046115017

main90461-15017

24 parts on this diagram · 1 diagram in section
