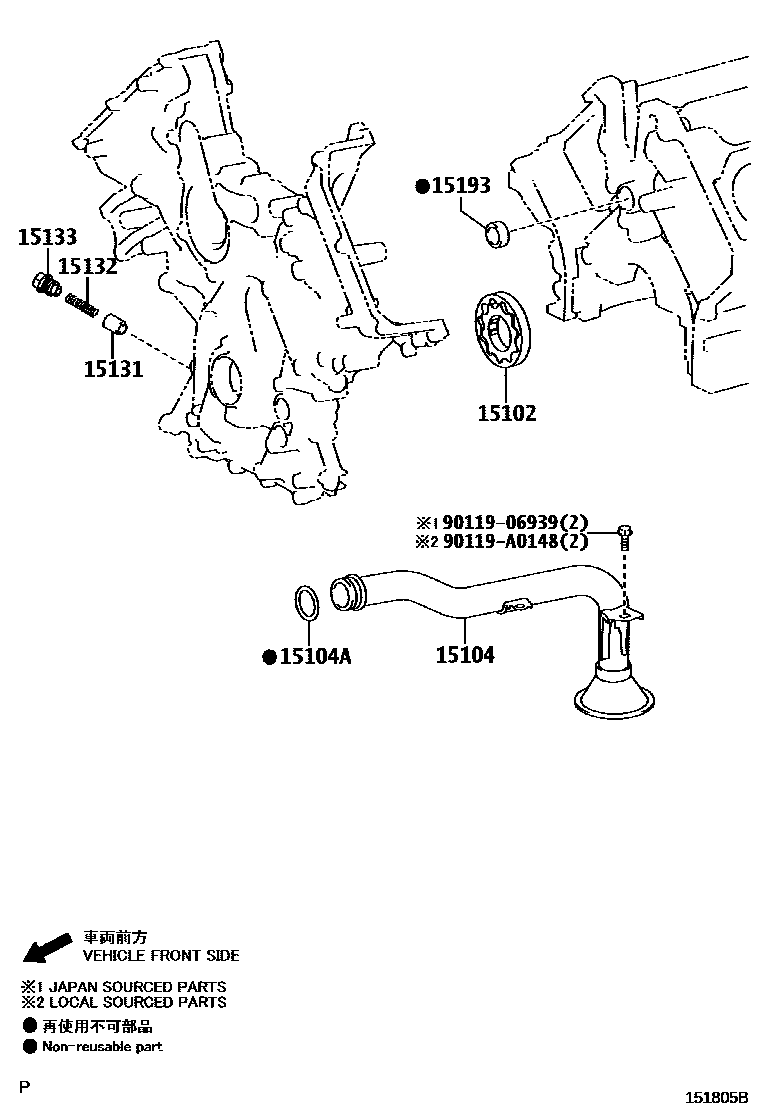

ENGINE OIL PUMP

15102ROTOR SET, OIL PUMP

main15103-0S010i3URFE..USK6#200811-201609

(L)

main15103-38060i3URFE..USK6#200811-201609

(J)

15104STRAINER SUB-ASSY, OIL

main15104-0S010i3URFE..USK6#200811-201609

15104ARING, O(FOR OIL STRAINER)

main90301-A0032i3URFE..USK6#200903-201609

(L)

main96721-24031i3URFE..USK60200811-200903

15131VALVE, OIL PUMP RELIEF

main15131-38070i3URFE..USK6#200811-201609

15132SPRING, OIL PUMP RELIEF VALVE

main15132-0S010i3URFE..USK6#200811-201609

(L)

main15132-38070i3URFE..USK6#200811-201609

(J)

15133PLUG, OIL PUMP RELIEF VALVE

main15133-38070i3URFE..USK6#200811-201609

15193GASKET, OIL PUMP

main15193-0S010i3URFE..USK6#200903-201609

(L)

main15193-38010i3URFE..USK60200811-200903

9011906939

main90119-06939

90119A0148

main90119-A0148

9 parts on this diagram · 1 diagram in section
