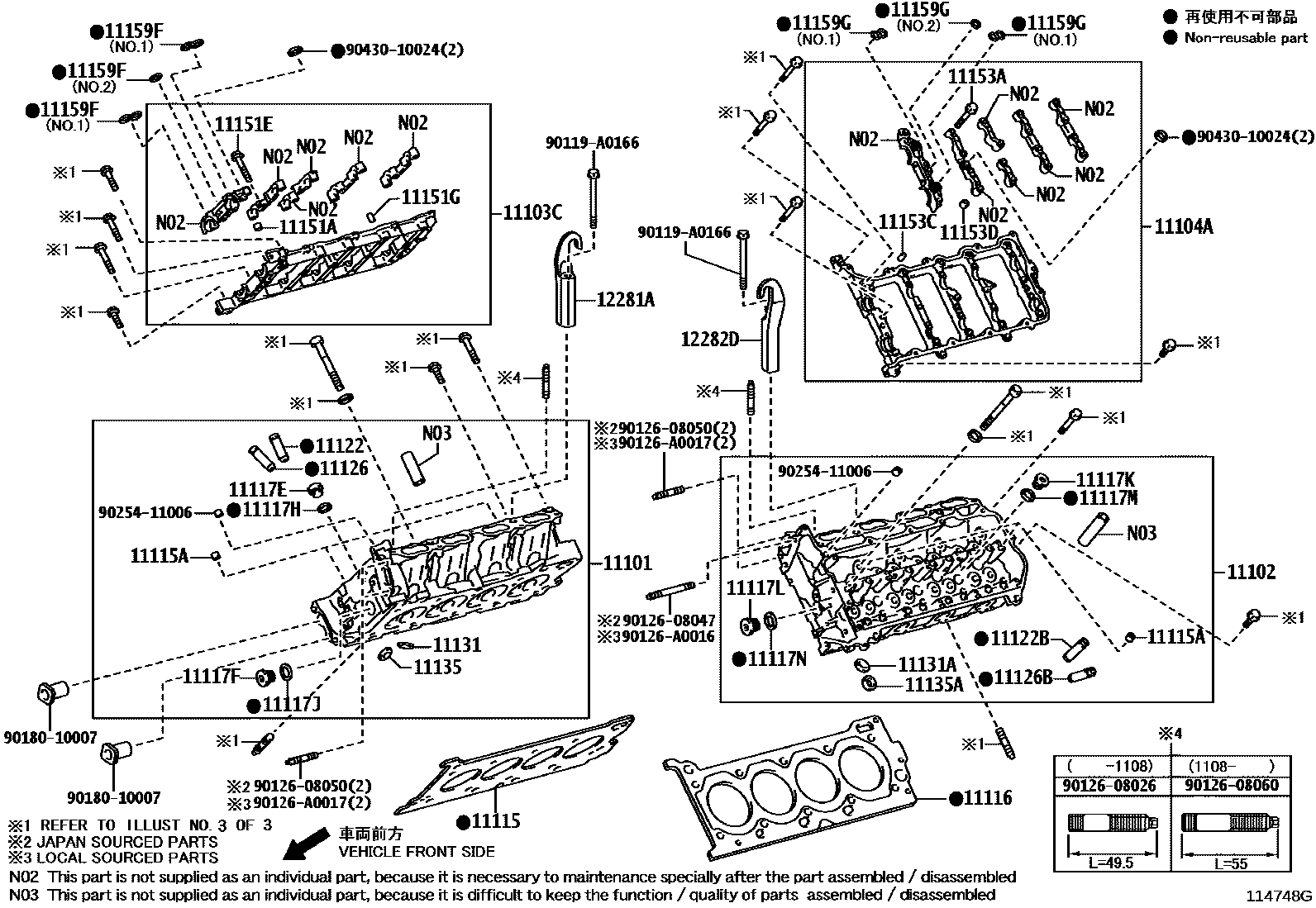

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
(L)
(L)
(J)
(J)
11102HEAD, CYLINDER, LH
(L)
(L)
(J)
(J)
11103CHOUSING SUB-ASSY, CAMSHAFT, RH
(L)
(L)
(J)
11104AHOUSING SUB-ASSY, CAMSHAFT, LH
(L)
(J)
11115GASKET, CYLINDER HEAD
11115APIN, RING
11116GASKET, CYLINDER HEAD, NO.2
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11117KPLUG, W/HEAD STRAIGHT SCREW, LH NO.1
11117LPLUG, W/HEAD STRAIGHT SCREW, LH NO.2
11117MGASKET(FOR WATER HOLE NO.2)
11117NGASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11122BBUSH, INTAKE VALVE GUIDE, NO.2
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11126BBUSH, EXHAUST VALVE GUIDE, NO.2
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD,(L)
STD,(J)
STD,(J)
O/S 0.03,(L)
O/S 0.03,(J)
O/S 0.03,(J)
11131ASEAT, INTAKE VALVE, NO.2
STD
STD,(J)
STD,(J)
O/S 0.03,(L)
O/S 0.03,(J)
O/S 0.03,(J)
11135SEAT, EXHAUST VALVE
STD
STD,(J)
STD,(J)
O/S 0.03,(L)
O/S 0.03,(J)
O/S 0.03,(J)
11135ASEAT, EXHAUST VALVE, NO.2
STD
STD,(J)
STD,(J)
O/S 0.03,(L)
O/S 0.03,(J)
O/S 0.03,(J)
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=8,OD=11
11151EBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1)
(J)
(L)
11151GPIN, STRAIGHT(FOR CAMSHAFT HOUSING RH)
11153ABOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1)
(J)
(L)
11153CPIN, STRAIGHT(FOR CAMSHAFT HOUSING LH)
11153DPIN, RING(FOR CAMSHAFT BEARING CAP SETTING LH)
11159FGASKET, CAMSHAFT BEARING CAP OIL HOLE, RH
(L),NO.1
(L),NO.2
NO.1
NO.2
11159GGASKET, CAMSHAFT BEARING CAP OIL HOLE, LH
(L),NO.1
(L),NO.2
NO.1
(J),NO.2
12281AHANGER, ENGINE, NO.1
12282DHANGER, ENGINE, NO.2
90119A0166
main90119-A0166
9012608026
main90126-08026
9012608047
main90126-08047
9012608050
main90126-08050
9012608060
main90126-08060
90126A0016
main90126-A0016
90126A0017
main90126-A0017
9018010007
main90180-10007
9025411006
main90254-11006
9043010024
main90430-10024
