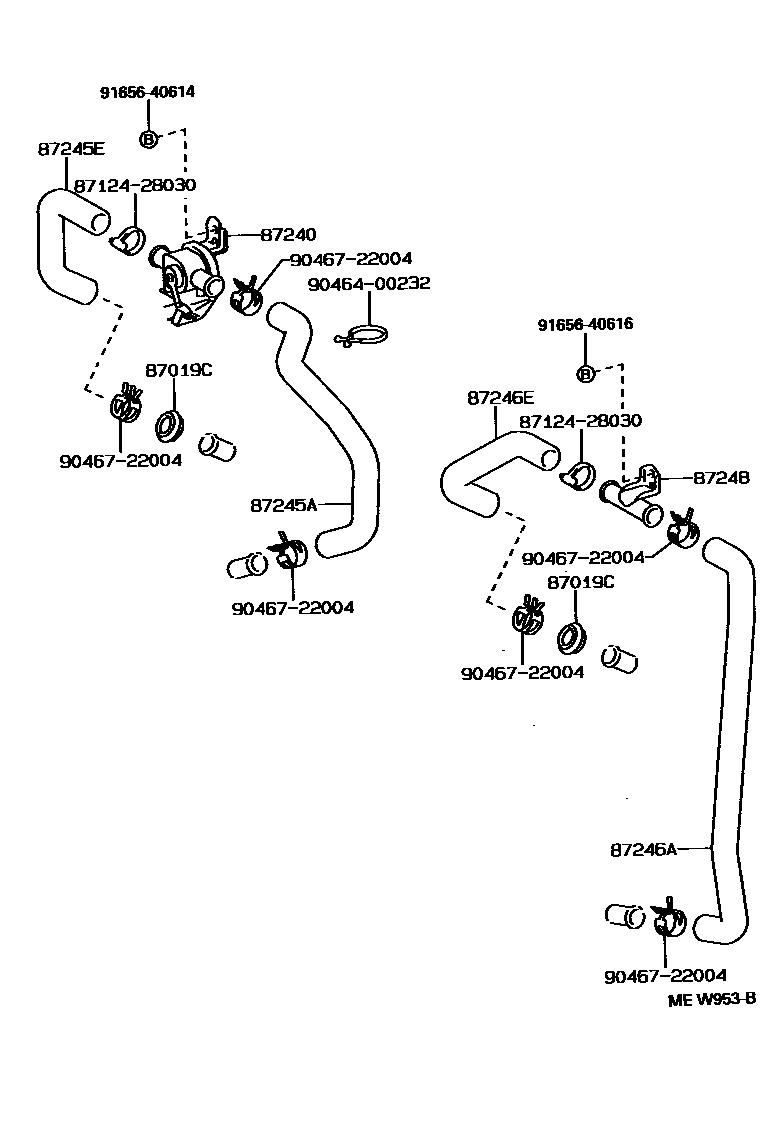

HEATING & AIR CONDITIONING - WATER PIPING

87019CGROMMET, HEATER HOSE

main90480-36005×2iRCK10199309-199608

87240VALVE ASSY, HEATER WATER

main87240-34010iRCK10199309-199608

87245AHOSE, HEATER WATER, INLET A

main87245-34060iRCK10199309-199608

87245EHOSE, HEATER WATER, INLET E

main87245-34040iRCK10199309-199608

87246AHOSE, HEATER WATER, OUTLET A

main87245-34070iRCK10199309-199608

87246EHOSE, HEATER WATER, OUTLET E

main87245-34050iRCK10199309-199608

87248PIPE SUB-ASSY, WATER

main87248-34010iRCK10199309-199608

8712428030CLAMP, HEATER

main87124-28030

9046400232

main90464-00232

9046722004

main90467-22004

9165640614

main91656-40614

9165640616

main91656-40616

12 parts on this diagram · 1 diagram in section
