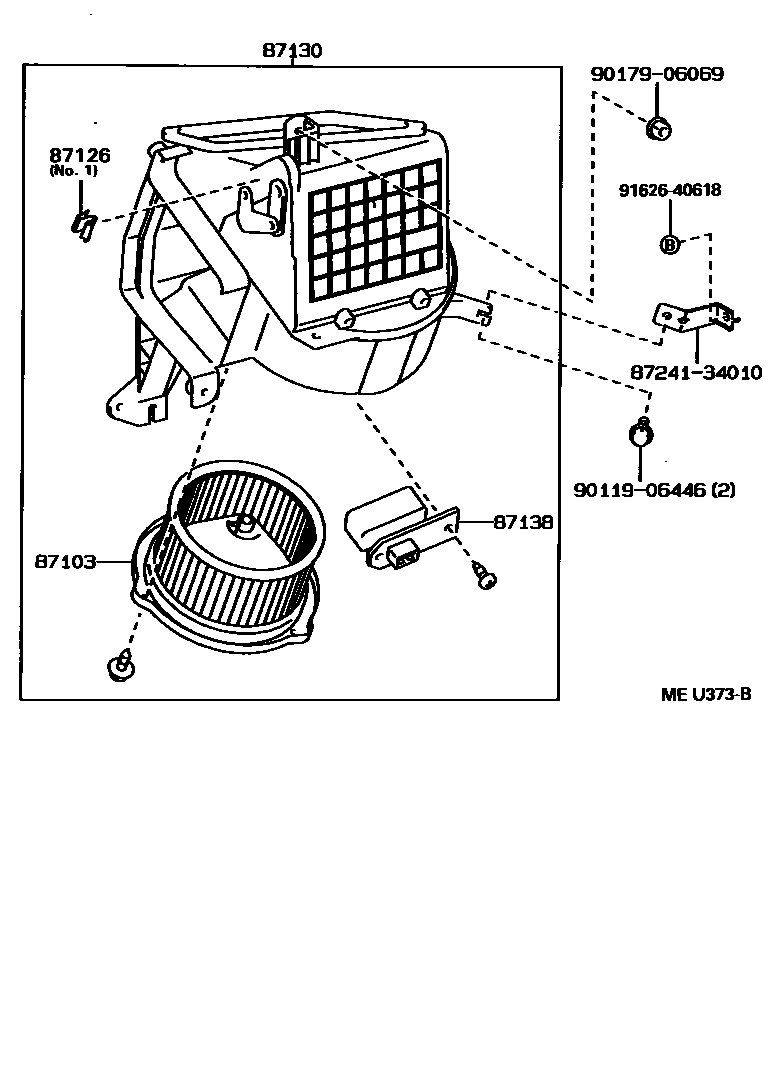

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-04021iRCK10199309-199608

87126CLAMP, HEATER CONTROL

main87126-01010×2iRCK10199309-199608

NO.1

main87126-04010iRCK10199309-199608

NO.2

87130BLOWER ASSY, HEATER, FRONT

main87130-04021iRCK10199309-199608

87138RESISTOR, HEATER BLOWER

main87138-04011iRCK10199309-199608

8724134010CONTROLLER, WATER VALVE

main87241-34010

9011906446

main90119-06446

9017906069

main90179-06069

9162640618

main91626-40618

8 parts on this diagram · 2 diagrams in section
