MIRROR

0001 1 0002 1

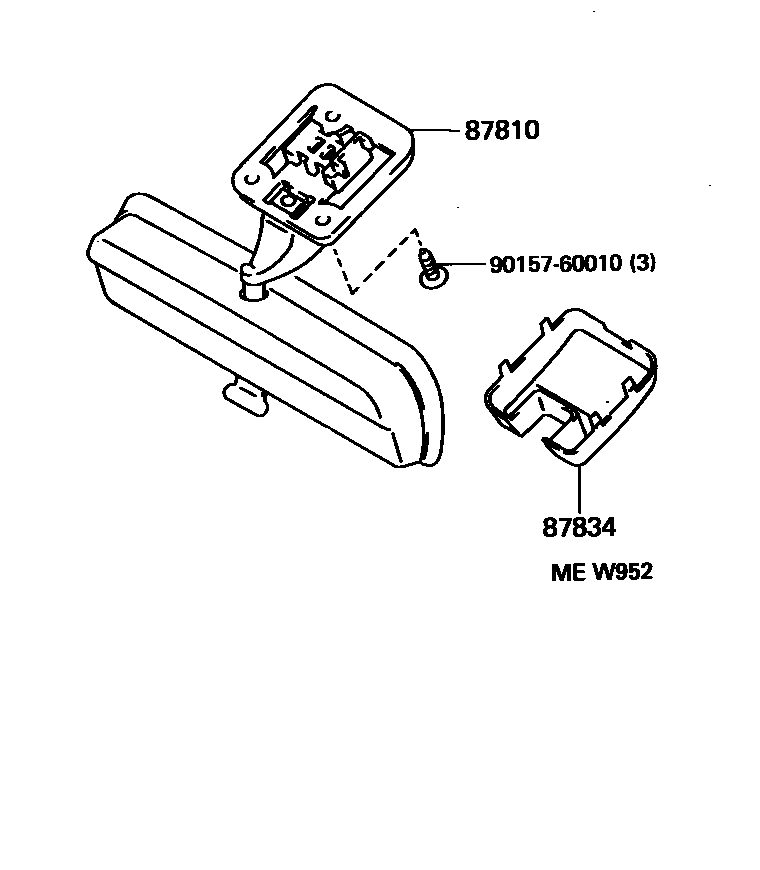

87810MIRROR ASSY, INNER REAR VIEW

main87810-0W010-B0iRCK10..SR5; RCK10..STD199309-199508

DAY/NIGHT TYPE,GRAY,TRIM1#; GRAY,TRIM1#

main87810-0W010-E0iRCK10..SR5; RCK10..STD199309-199508

DAY/NIGHT TYPE,OAK,TRIM4#; OAK,TRIM4#

main87810-34030-B1iRCK10..STD199309-199508

GRAY,TRIM1#

main87810-34030-E1iRCK10..STD199309-199508

OAK,TRIM4#

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-89105-E1iRCK10199309-199501

OAK,TRIM4#

main87834-89105-E2iRCK10199501-199608

MD.OAK,TRIM4#

main87834-89105-S7iRCK10199309-199608

MEDIUM GRAY,TRIM1#

9015760010

main90157-60010

3 parts on this diagram · 2 diagrams in section
