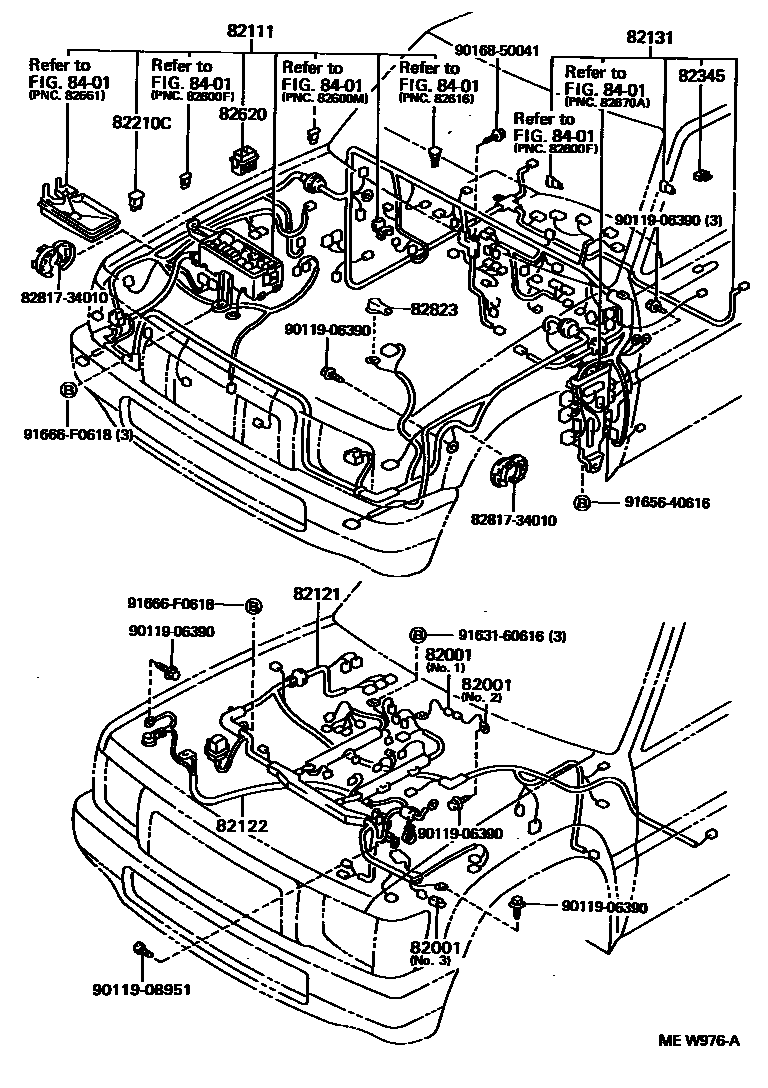

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1

82001CABLE, BOND, NO.1

main90980-07374iRCK10199309-199608

82111WIRE, ENGINE ROOM MAIN

main82111-34070iRCK10199309-199608

82121WIRE, ENGINE

main82121-34100iRCK10199309-199408

main82121-34101iRCK10199408-199608

82122WIRE, ENGINE, NO.2

main82122-34030iRCK10199309-199608

82131WIRE, COWL

main82131-34380iRCK10..STD199309-199408

main82131-34381iRCK10..STD199408-199510

main82131-34382iRCK10..STD199510-199608

main82131-34390iRCK10..SR5199309-199408

main82131-34391iRCK10..SR5199408-199510

main82131-34392iRCK10..SR5199510-199608

82210CFUSIBLE LINK

main90982-08223iRCK10199309-199608

30A,TERM.:MALE,PNK

82345DIODE

main82345-12050iRCK10..SR5199408-199608

main82345-32020iRCK10..SR5199309-199408

82620BLOCK ASSY, FUSIBLE LINK

main82620-89101iRCK10199309-199608

82823CAP, TERMINAL, NO.1

main82823-22050iRCK10199309-199608

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8281734010PROTECTOR, WIRING HARNESS, NO.1

main82817-34010

9011906390

main90119-06390

9011908951

main90119-08951

9016850041

main90168-50041

9163160616

main91631-60616

9165640616

main91656-40616

91666F0618

main91666-F0618

17 parts on this diagram · 4 diagrams in section
